Function blocks
138 Function blocks for TwinSAFE logic components

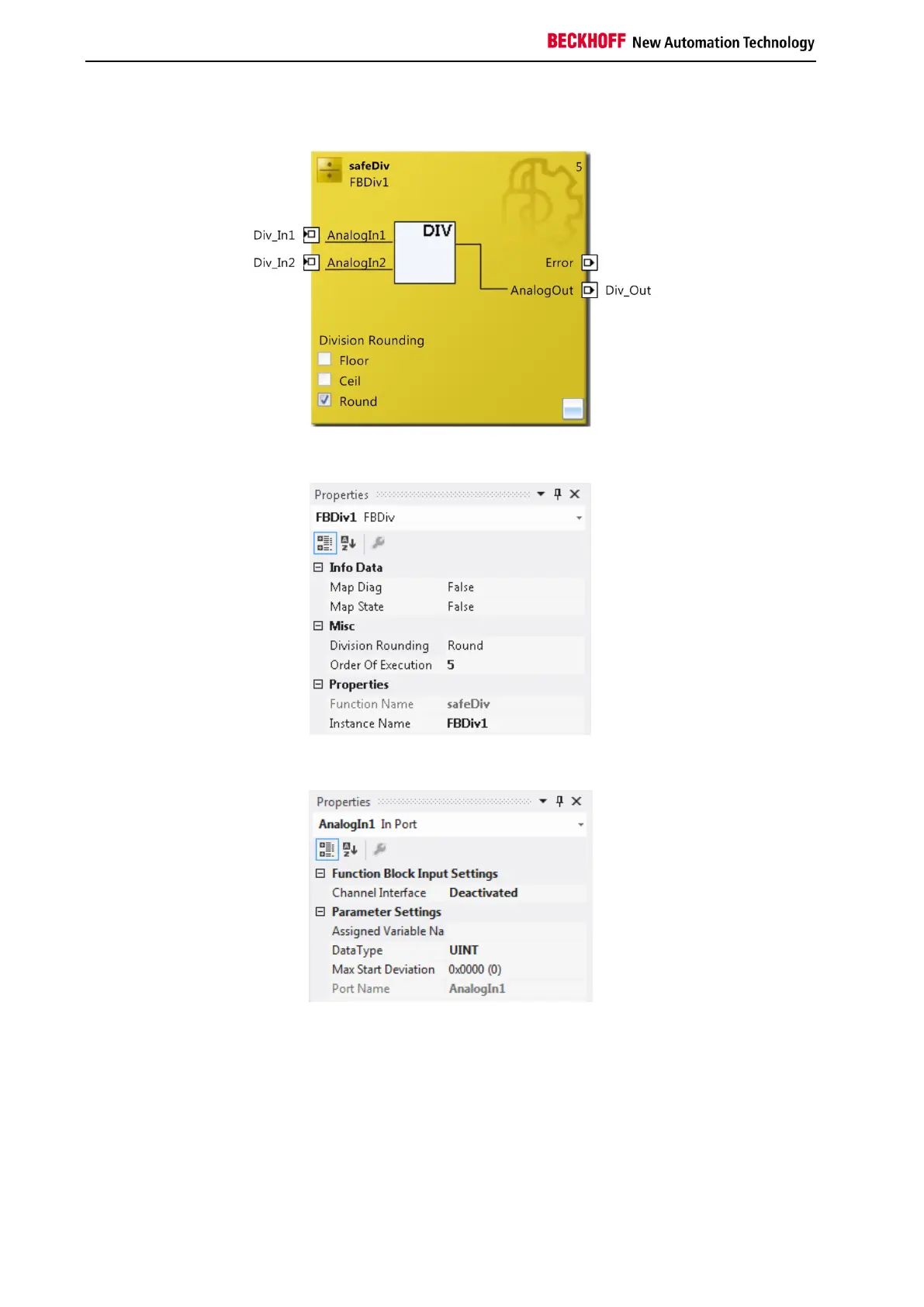

3.19.3 FB DIV configuration in TwinCAT 3
Figure 3-81: FB DIV configuration
Figure 3-82: FB xxx properties
Figure 3-83: FB xxx port properties
A mouse click next to the FB port, here AnalogIn1 and AnalogIn2, can be used to create variables that
can be linked to input signals. Input settings, such as changing the data type or activation of the input,
can be made via the properties of the FB port.
The MapState and MapDiag entries define which diagnostic functions of the FB are mapped to the cyclic
process image.
