Function blocks
Function blocks for TwinSAFE logic components 33
3.2.3 FB OR configuration in the TwinCAT System Manager

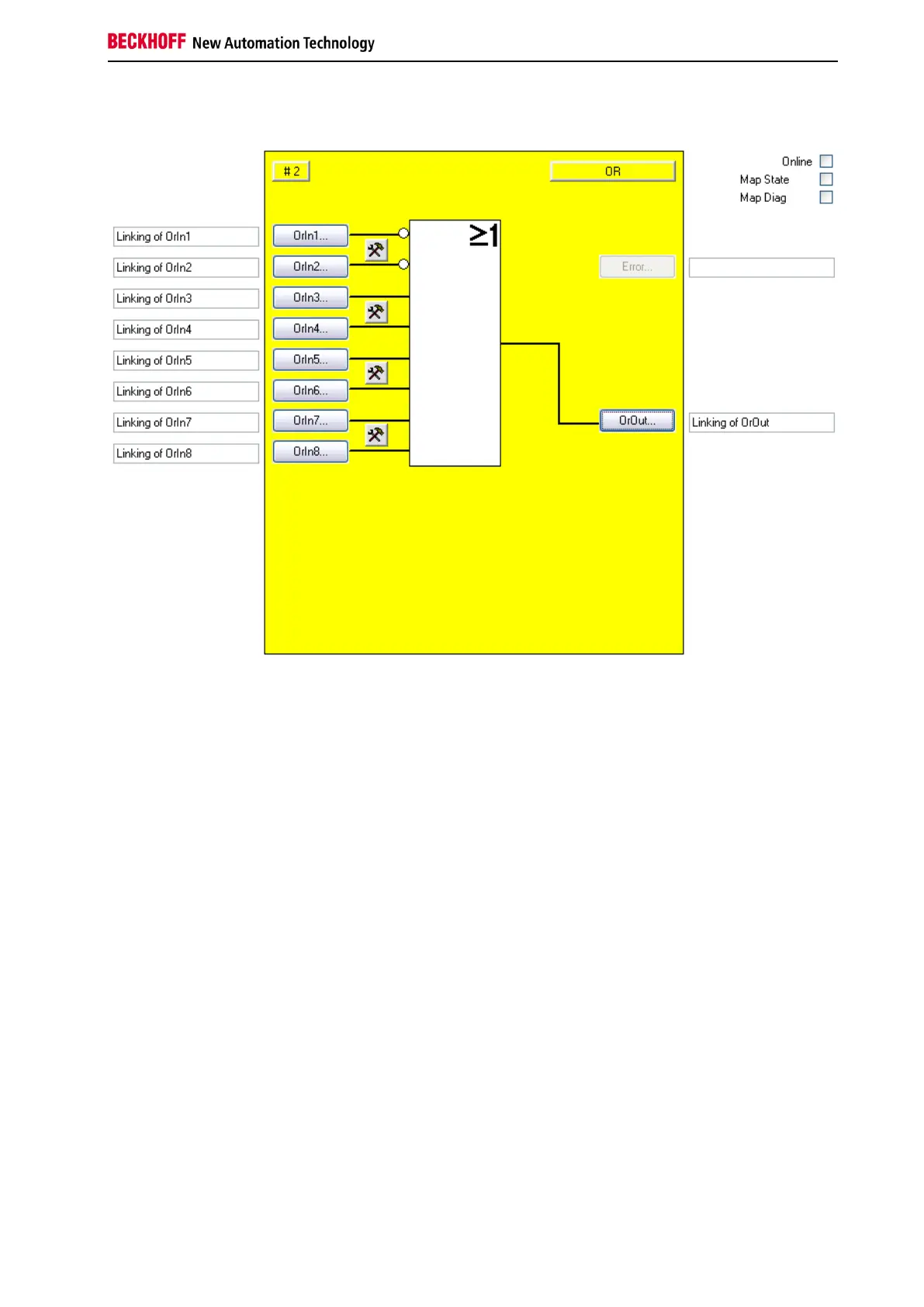

Figure 3-6: FB OR configuration
Their characteristics are configured with the setting buttons on the right near the two OrIn inputs, whereby
the inputs are always single-channel. A discrepancy monitoring cannot be used for the OR.
The 'OrIn(x)' buttons can only be selected if the corresponding input has been activated via the Settings
button. In the default setting all inputs are disabled.
The FB OR input variables are linked using the 'OrIn(x)' buttons.
The output variable of the FB OR are linked using the 'OrOut' button.
The 'MapState' and 'MapDiag' checkboxes are used to specify which FB diagnostic functions are mapped
to the cyclic process image.
The FB OR does not supply any error information and therefore the error button is basically deactivated.
