Function blocks
Function blocks for TwinSAFE logic components 83
3.8.3 FB MUTING configuration in the TwinCAT System Manager

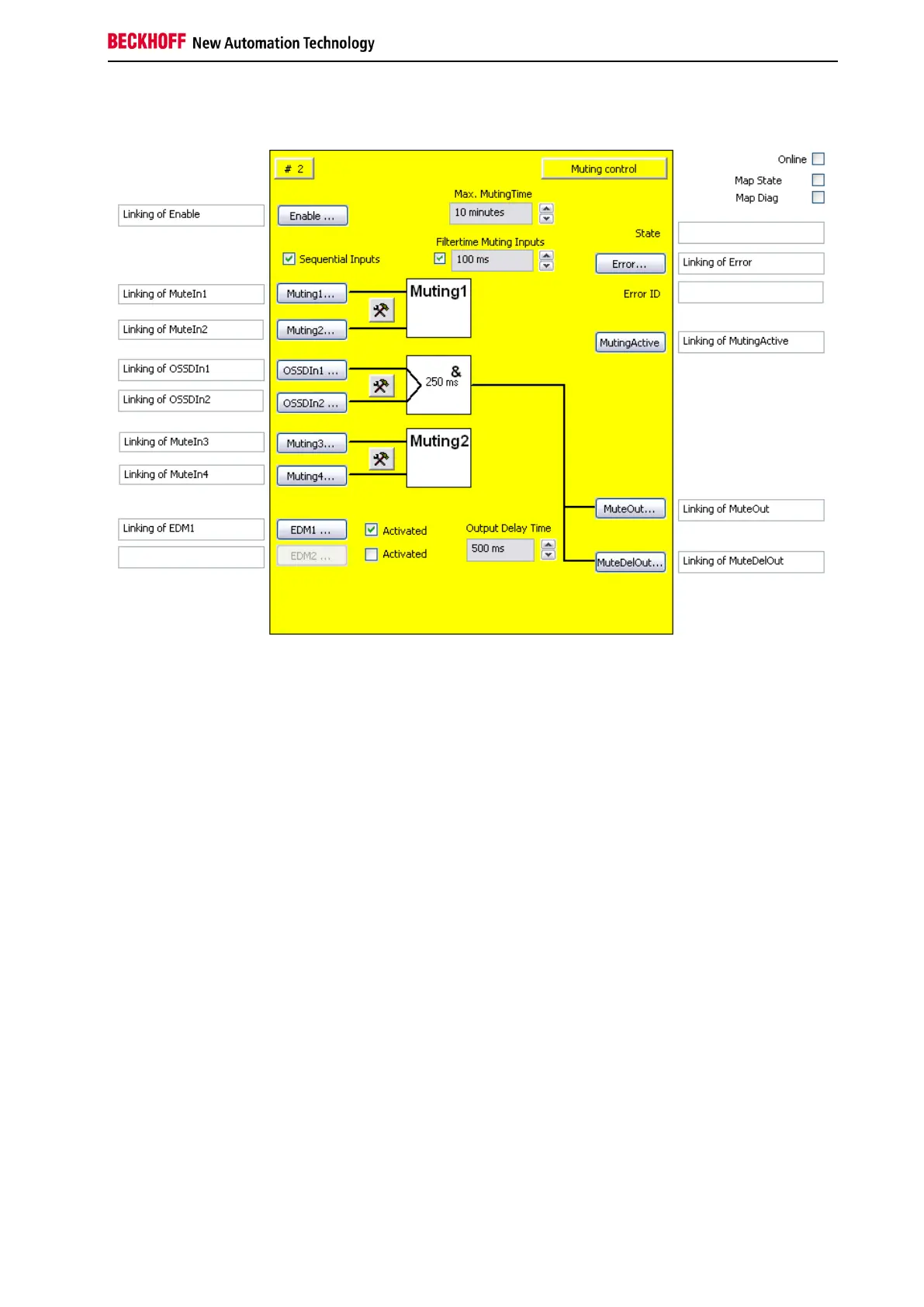

Figure 3-32: FB MUTING configuration
An input through which muting can be enabled must be connected via the 'Enable' button.
The 'Muting(x)' buttons are used to connect the muting sensors to the function block. Use the Settings
buttons to the right of two muting inputs to configure them. The 'Muting (x)' buttons can only be selected
when the corresponding input has been activated. All inputs are deactivated in the default setting.
Two-channel evaluation with or without discrepancy time monitoring can be set if the checkbox
"Sequential Inputs" is not set. If the "Sequential Inputs" checkbox is set, only single-channel evaluation
can be configured via the Settings button. In addition, each input can be configured as a break contact
(NC) or as a make contact (NO).
The maximum permitted muting period can be set via the 'Max. Muting Time' text box. If this time
exceeded the function block switches to ERROR state. The maximum muting period is 10 minutes. It the
value is set to 0 minutes, monitoring is disabled.
A filter time up to 500 ms can be activated for the Muting(x) inputs via the "Filtertime Muting Inputs"
checkbox.
The 'OSSDIn(x)' inputs are connected with the signals from the protective device. Use the Settings button
to the right of the OSSDIn inputs to configure them. The setting options include single- or two-channel
evaluation or two-channel evaluation with discrepancy time monitoring.
Direct outputs are connected via the 'MuteOut' button, delayed outputs via the 'MuteDelOut' button. The
delay time of the 'MuteDelOut' output is configured via the selection box 'Delay-Time'.
The corresponding feedback loop is active using the 'Activated' checkbox on the right near the 'EDM(x)'
buttons. The 'EDM(x)' button can only be selected, if the associated feedback loop is activated.
