BES-940BC • BES-1240BC
270
Connection and Installation of Optional Equipment
q
e
o
i
y
t
u
r
w

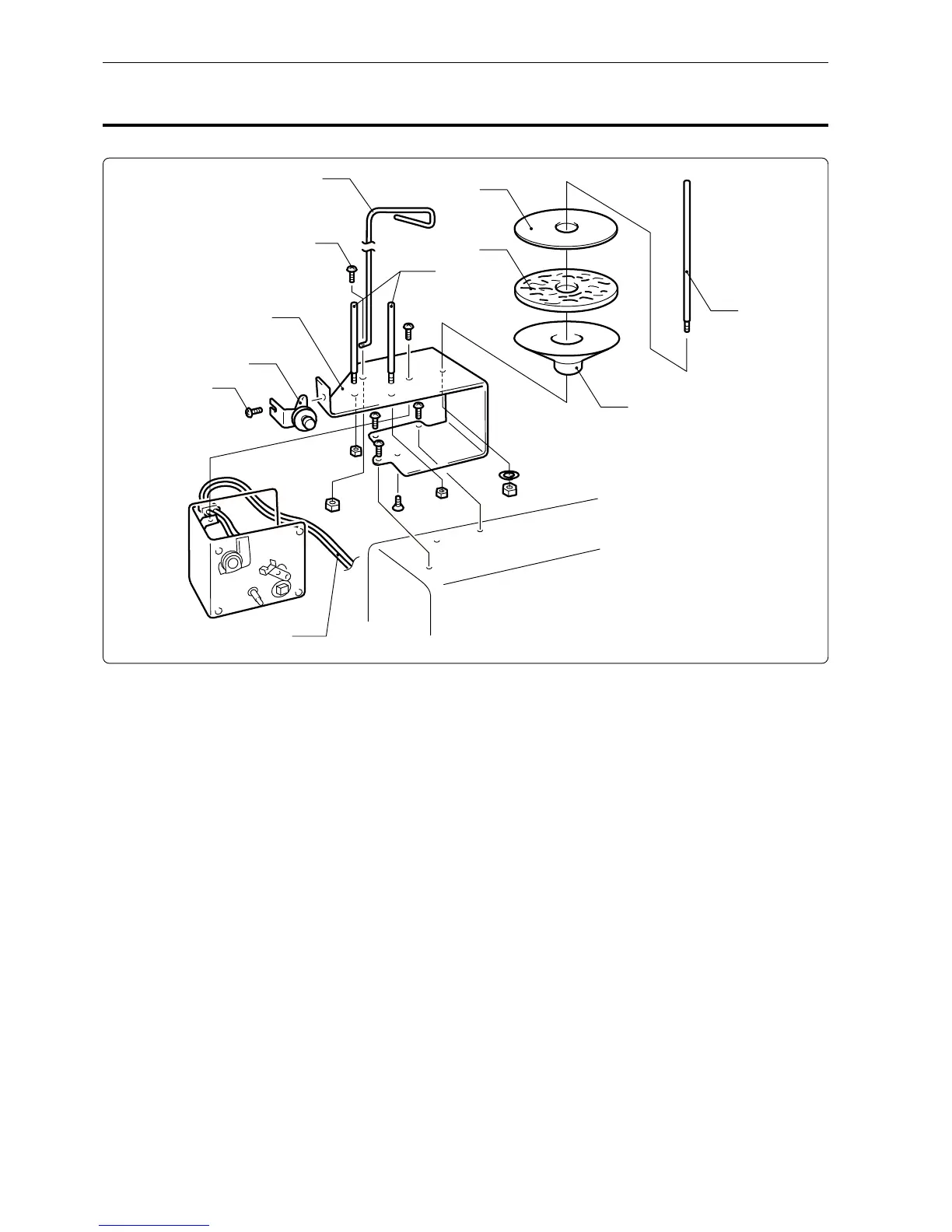

1. Attaching Bobbin Winder
1. Mount two pieces of bobbin stand L w on the thread winder stay q with nut 4 !0.
2. Mount the thread winder assembly (set) e on the thread winder stay q with the tightening
screw !1.
3. Mount the thread guide r with the drilling bolt set 6 x 20 !4 and nut 6 !3.
4. Mount the spool shaft B t and pan y, spool mat u, and spool cushion i with nut 5 !5 and
spring washer !6.
5. Insert the thread winder harness o in the 2P (No. 6) connectors on the rear of the control
box.
!4
!1
!0
!3
!0
!5
!6
