Chapter 2 Preparation of Embroidery Machine
BES-940BC • BES-1240BC
33
q
w
r
e
e
w
q
2-4 Mounting of Table

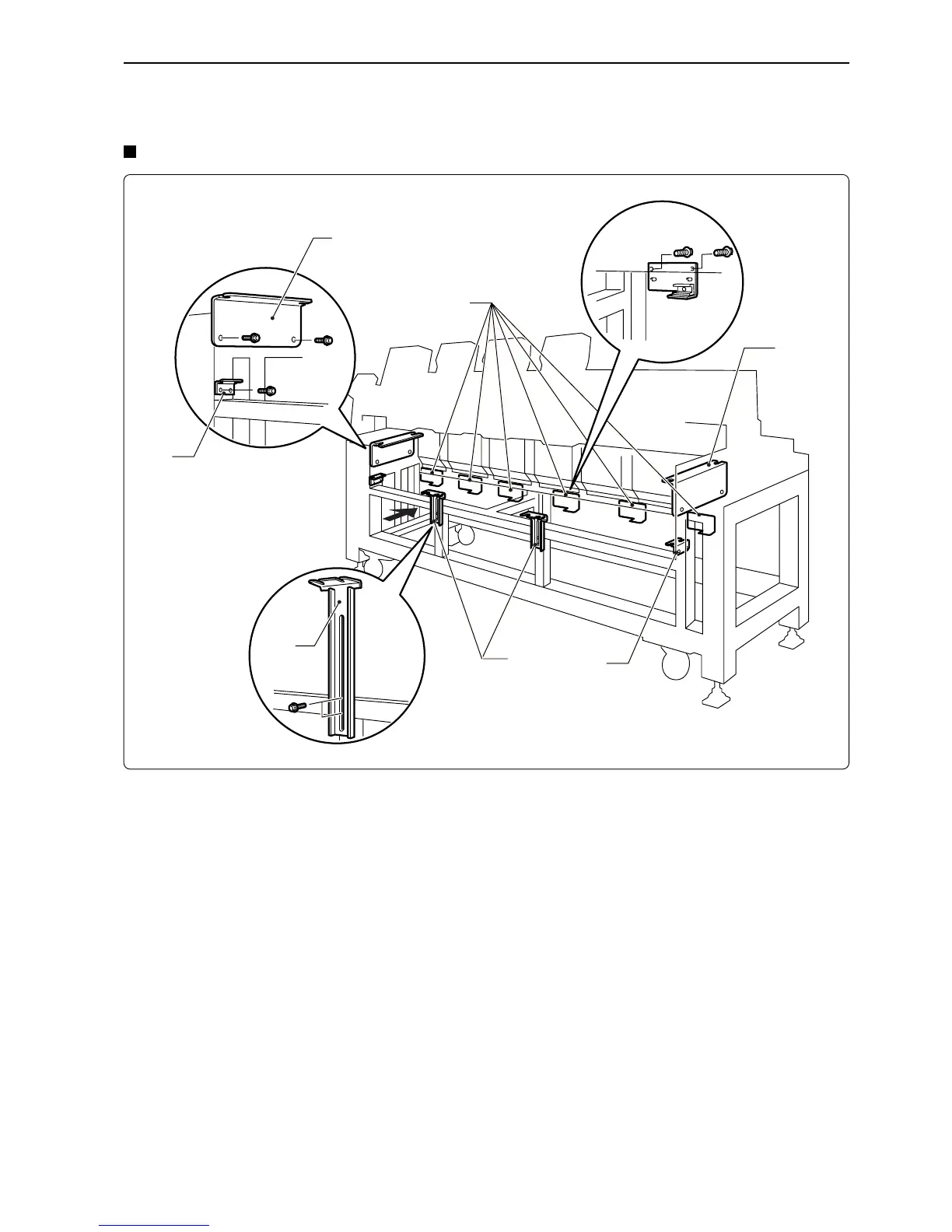

Mounting of F table
1. Tentatively mount the F table guides U q and L w on both sides of the legs using two bolts
each.
2. Tentatively mount there F table supports F e on the leg front using two bolts each.
3. Tentatively mount six F table stoppers r at the rear of the legs using two bolts each.
Notes) • The steps 1 and 3 are required only when the F table set is purchased separately from the machine.
• The F table is a standard attachment.
To Next Page
