Chapter 2 Preparation of Embroidery Machine
BES-940BC • BES-1240BC
49
3-4 Attachment of Embroidery Hoop and Frame
Tubular square hoop
w
q
r
e
y
u
t

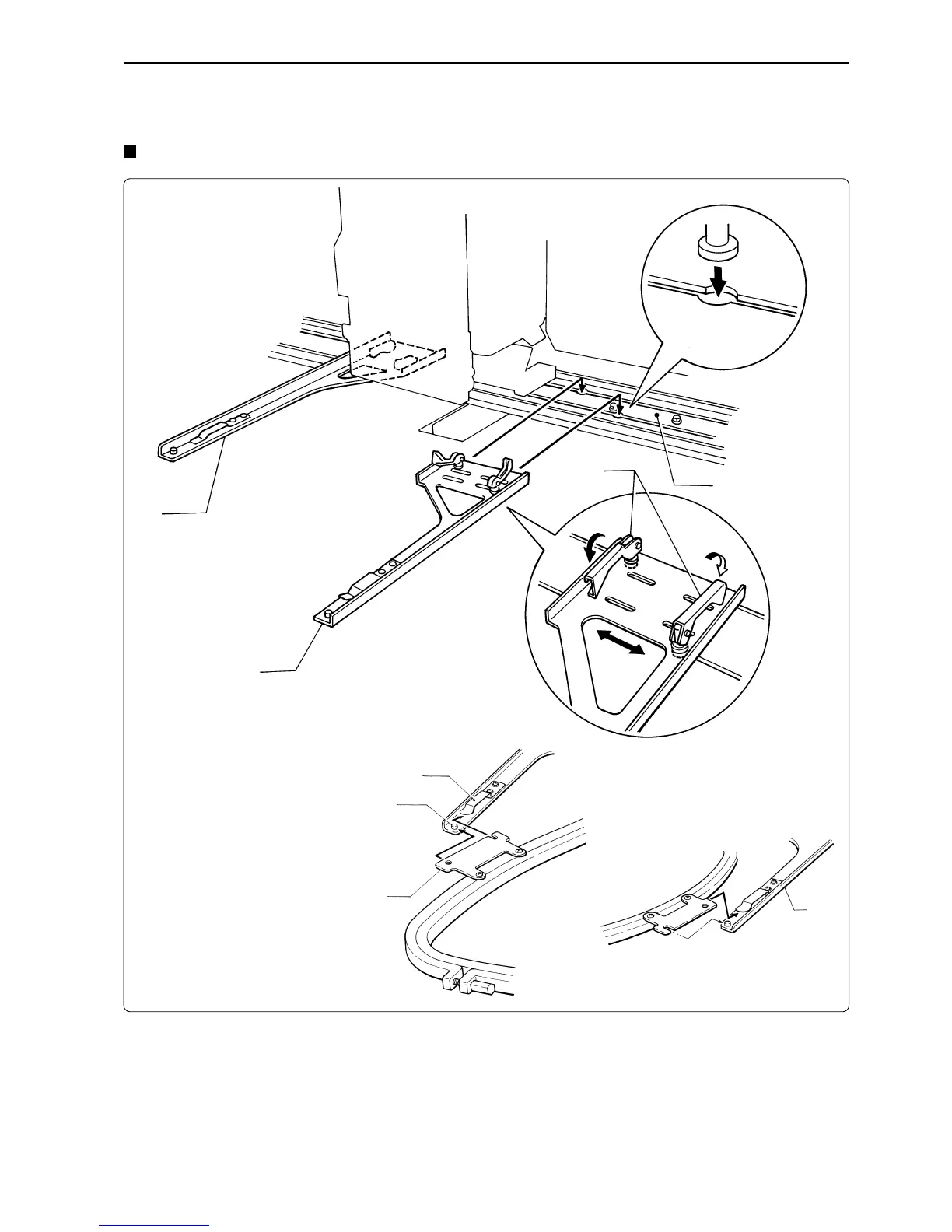

1. Insert the fixing pins of the tubular round arms R q and L w into the notches of the X-axis
feed frame e. Slide the arm to the right and left and lower the fixing lever r to fix them.
2. Set the right and left fixtures of the tubular square hoop t while sliding them under the flat
spring y upward. Then fit the frame projecting part u into the hole of the tubular square
hoop t securely.
