Chapter 2 Preparation of Embroidery Machine
BES-940BC • BES-1240BC
40
2-7 Connection of Personal Computer to Machines (for connecting 4 sets)

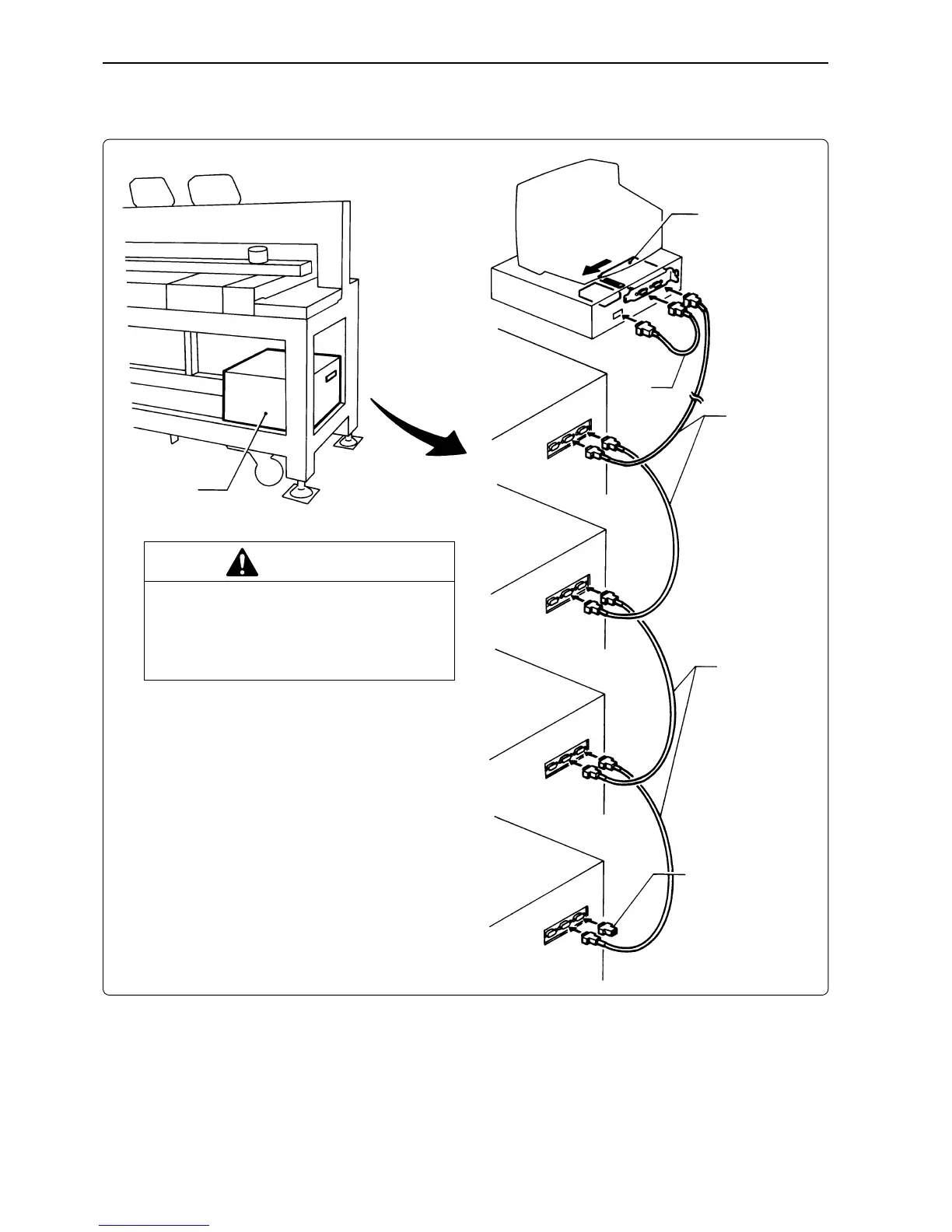

1. Turn off the power switch.
2. Open the cover of the personal computer and insert an interface board into the slot for the
PCI bus.
3. Connect the interface board male connector and the personal computer RS-232C connector
(COM1 or RS-232C-1) using the attached short RS cable.
Interface board
RC
cable
IF cable
IF cable
Terminator
(Be sure to attach
a terminator.)
Control box
Before inserting or removing IF cables or RS
cables, turn off the power switches of the
machine, the computer, and peripheral
equipment.
(1st machine)
(2nd machine)
(4th machine)
(3rd machine)
CAUTION
To Next Page
