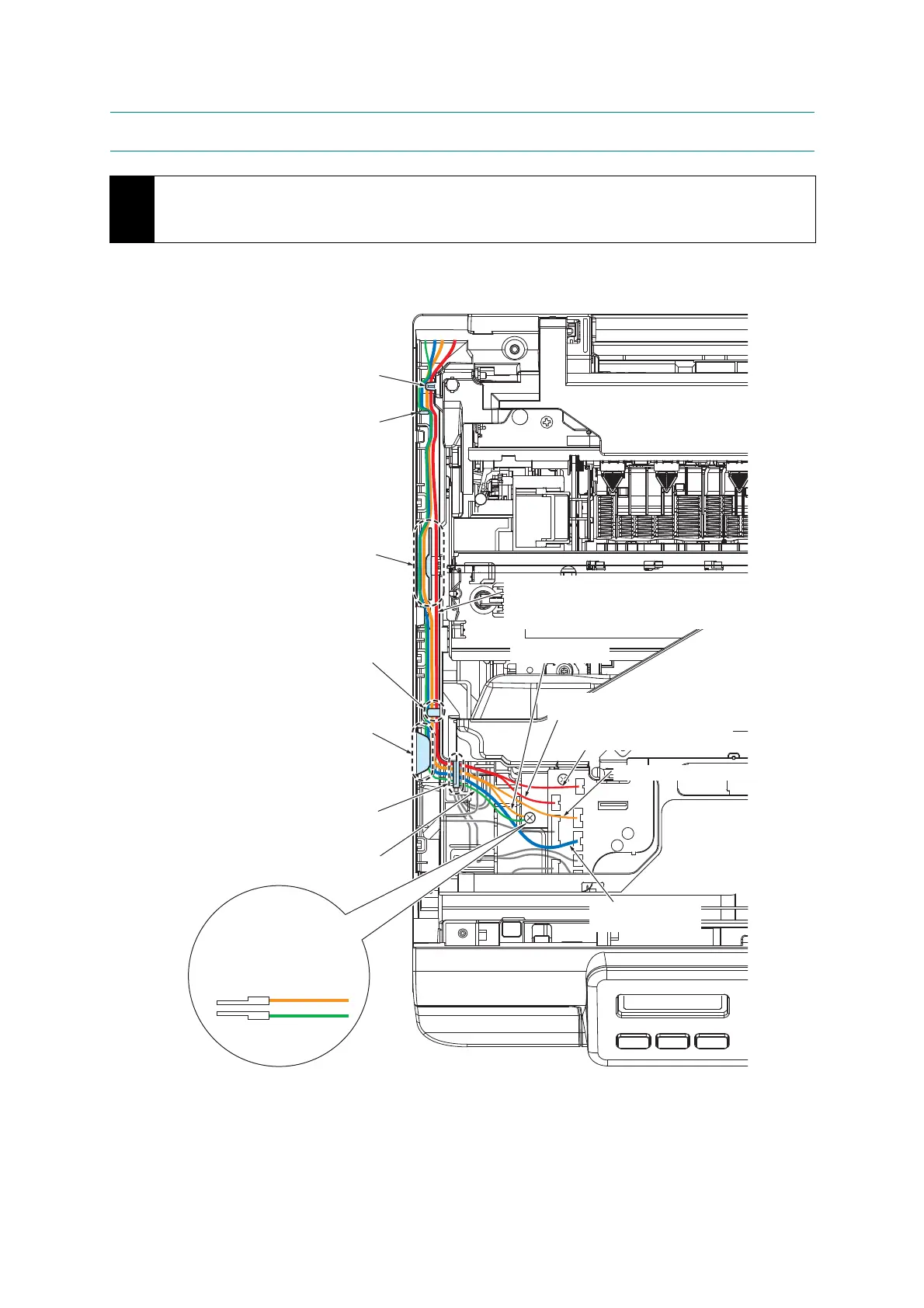

7 ROUTING OF HARNESSES / FLAT CABLES / INK SUPPLY TUBES
1
Upper cover: Document scanner motor harness, ADF motor harness
*1
, Document scanner FG
wire, ADF FG wire
*1
, Document detection sensor harness
*1
, Document scanning position
sensor harness
*1
(3_005L)
*1 For models with ADF
Cable guide
Document scanning
position sensor harness*1
Document detection
sensor harness*1
ADF FG wire*1
Have the Document detection sensor
harness*1 and Document scanning
position sensor harness*1 pass through
the inside of the Cable guide.
Have the ADF motor harness*1,
Document scanner motor harness,
and ADF FG Wire*1 pass through the
outside of the Cable guide.
Cable guide
Document scanner FG wire
Cable guide
Cable guide
Cable guide
Document scanner
motor harness
When installing the
ADF FG Wire*1, align it
horizontally as shown
in the illustration.
ADF motor harness*1
