9.26 Registration Sensor PCB ASSY

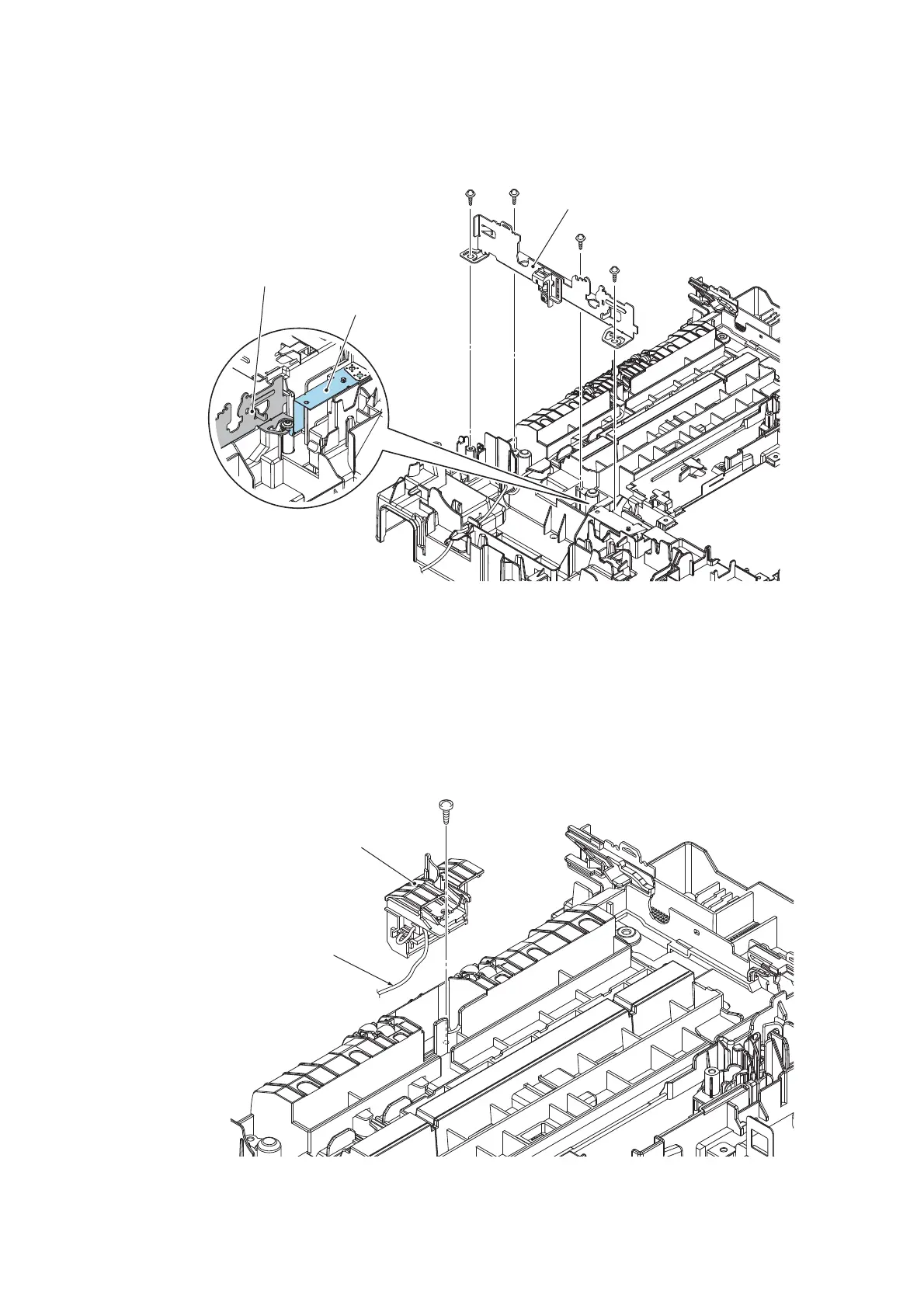

(1) Remove the four screws of the TAPTITE CUP B M3x10 and remove the Side frame L.
Assembling Note Attach the Side frame L under the Earth plate.
(2) Remove the Registration sensor harness wiring.
(3) Remove the screws of the TAPTITE CUP B M2.6x8, and remove the Registration
sensor PCB ASSY.
(3_072L)
TAPTITE CUP B M3x10
Side frame L
Earth plate
Side frame L
(3_073L)
Registration sensor PCB ASSY
TAPTITE BIND B M2.6x8
Registration sensor harness
