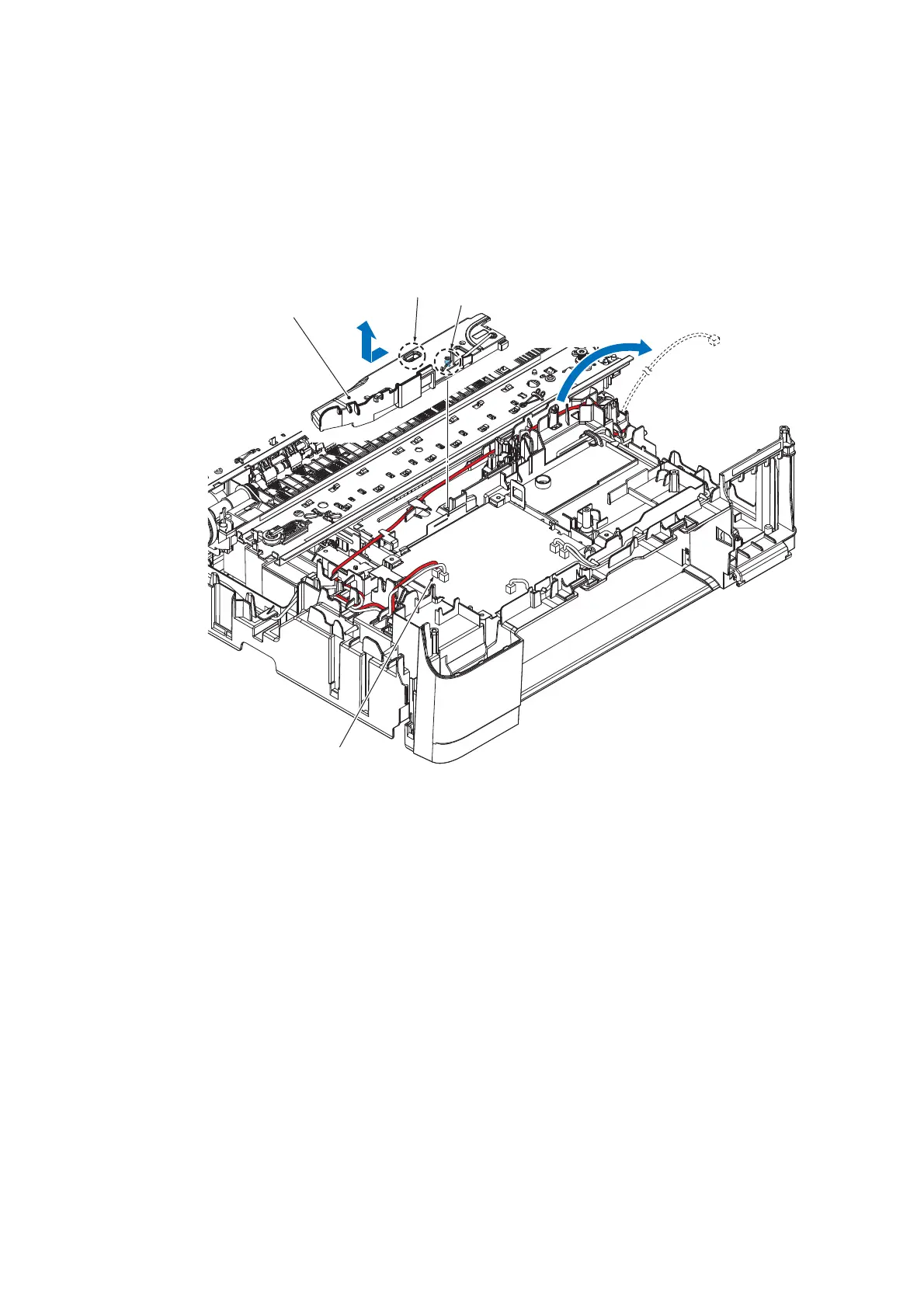

9.19 Carriage Motor ASSY
(1) Remove the boss through the opening on the Tube support plate by using a flathead
screwdriver, and then remove the Tube support plate from the Lower cover, sliding it to
the left.
(2) Remove the Carriage motor harness wiring.
(3_058L)
