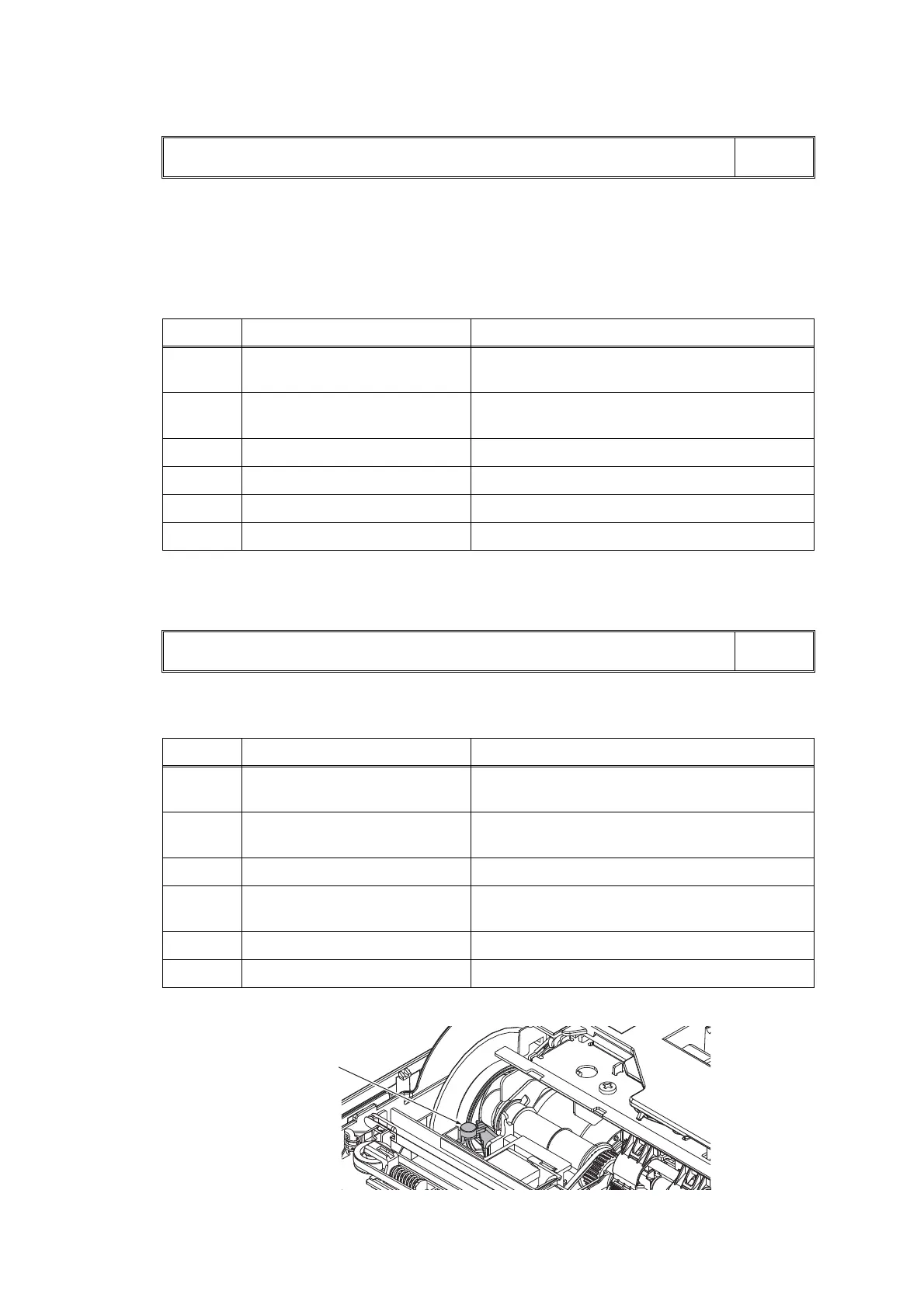

â– Error Code 84
Recording paper jam.
The Registration sensor stays in paper-feeding state even after completing paper ejection.
<User Check>
- Release the release lever at the back of the Paper tray and remove the jammed
recording paper in Platen part.
â– Error Code 89
The Paper width sensor could not detect the home position specified on the Paper feed
roller.
Paper Jam
LCD
Step Cause Solution
1 Foreign materials in the
recording paper feeding path
Remove foreign materials.
2 Registration actuator caught in
the surrounding parts
Reattach the Registration actuator.
3 Registration sensor defective Replace the Registration sensor PCB ASSY.
4 Paper feed roller defective Replace the Paper feed roller.
5 Paper feed motor defective Replace the Paper feed motor.
6 Main PCB defective Replace the Main PCB ASSY.
Unable to print 89
LCD
Step Cause Solution
1 PF encoder disk stained Clean the PF encoder disk and Flushing guide.
(Refer to Chapter 3, Section 1)
2 PF home position detection
lever stained
Clean the PF home position detection lever and
Flushing guide. (Refer to Chapter 3, Section 1)
3 PF encoder disk defective Replace the PF encoder disk.
4 PF home position detection
lever out of place
Set the PF home position detection lever into
place.
5 Paper width sensor defective Replace the Carriage PCB ASSY.
6 Main PCB defective Replace the Main PCB ASSY.
