9.23 Paper Feed Roller
(1) Remove the Paper ejection roller belt.
Assembling Note Route the Paper ejection roller belt through the tension block in
advance.
(2) Push the Release levers backward.
(3) Remove the right and left bearings from the bosses by using a flathead screwdriver,
and turn it in the direction of the arrow.
(4) Remove the Paper feed roller.

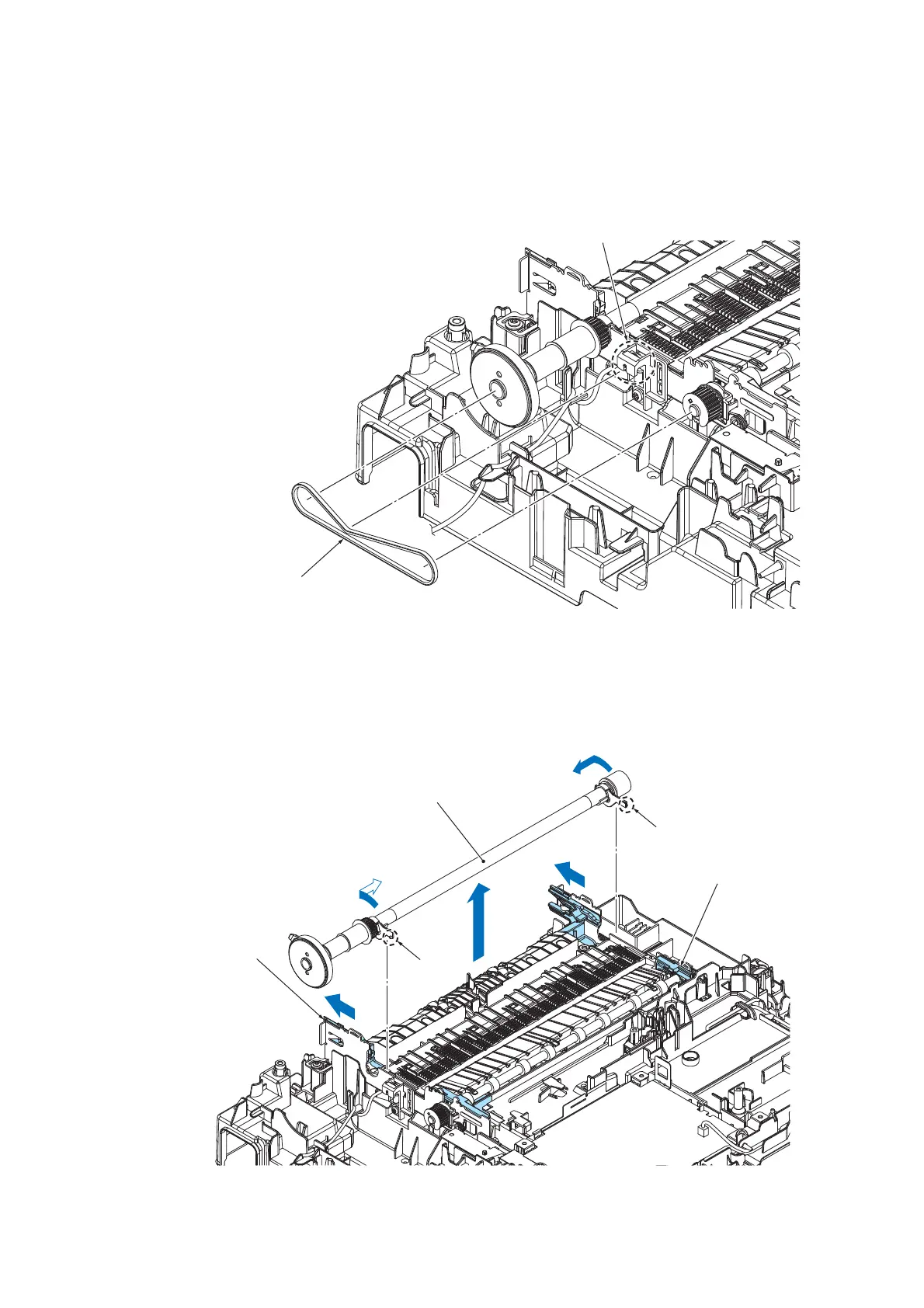

(3_067L)
Paper ejection roller belt
Tension block
(3_068L)
Paper feed roller
Boss
Boss
Release lever
Release lever
