3-73
Confidential
9.15 Ink refill ASSY
Tip When the Head/carriage unit has not been removed, refer to "9.3 Head Joint Rubber /
CR Timing Belt / Head/Carriage Unit" in this chapter to remove the Ink supply tubes from
the Head/carriage unit.
(1) <For Ink tank models only>

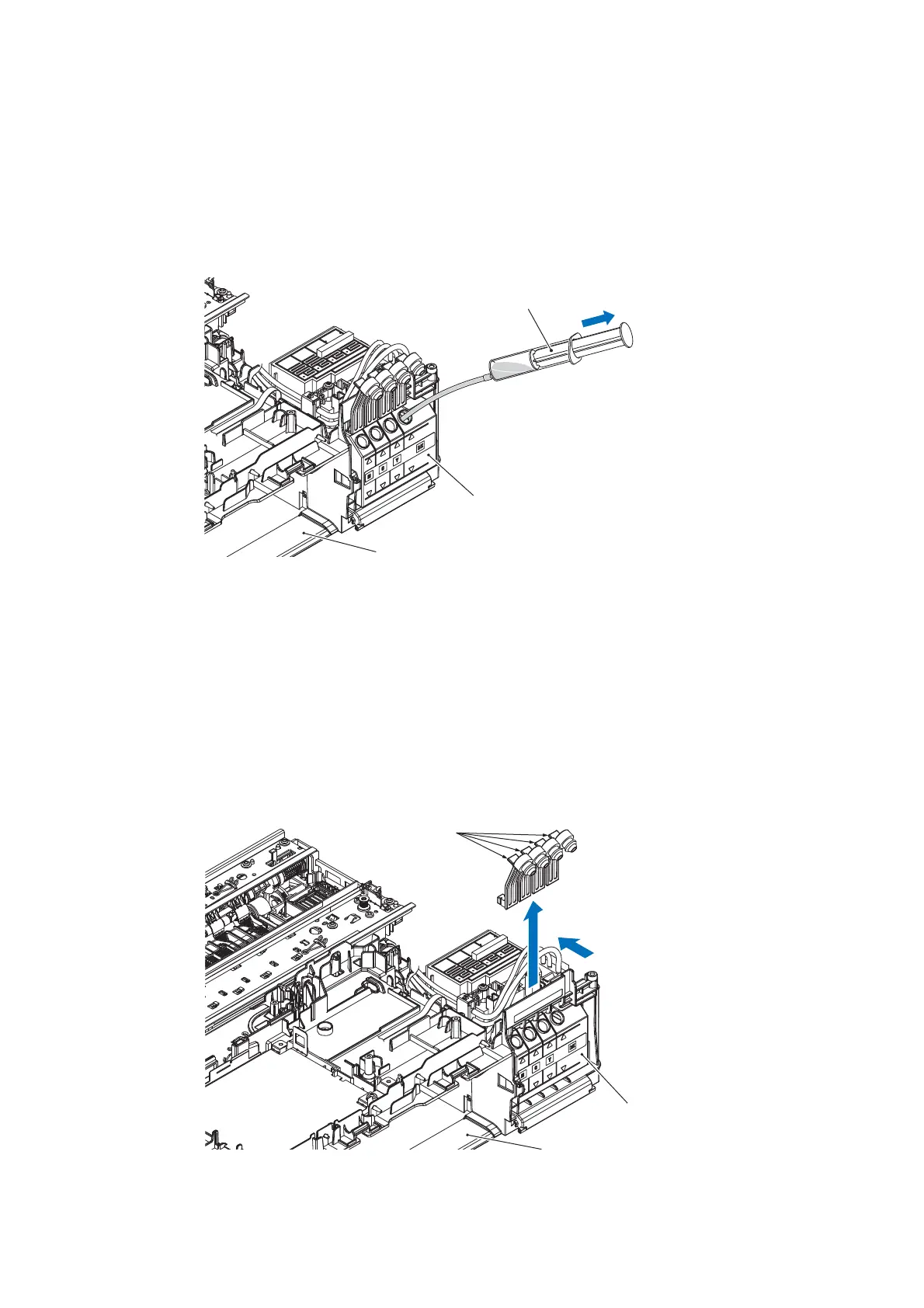

If the Ink refill ASSY contains ink, use a Ink extraction syringe to extract the ink.
(2) Remove the Ink supply tubes (4 tubes) from the tube guide on top of the Tube support
plate, take out the sponge, and remove it from the Tube support wire.
(3) Take out the Ink absorber box from the Lower cover.
Tip When the Main PCB ASSY has not been removed, disconnect the Ink sensor flat
cable from the Main PCB ASSY.
(4) Remove the Ink sensor flat cable from the Lower cover.
(5) <For Ink tank models only>
Slightly slide the Ink refill ASSY to the rear with the Ink refill cap opened, and remove
the four Ink refill caps from the Ink refill ASSY.
(3_131L)
Ink extraction syringe
Ink refill ASSY
Lower cover
Ink refill caps
Lower cover
Ink refill ASSY
To Next Page
