Canon imagePROGRAF iPF815 User Manual

Handling rolls
Attaching the Roll Holder to Rolls .................................................................................................................... 623
Loading Rolls in the Printer ............................................................................................................................. 628
Selecting the Paper Source ............................................................................................................................. 631
Selecting the Paper Type (Roll) ...................................................................................................................... 632
Specifying the Paper Length (Roll) .................................................................................................................. 633
Removing the Roll from the Printer ................................................................................................................. 634
Removing the Roll Holder from Rolls .............................................................................................................. 637
Feeding Roll Paper Manually .......................................................................................................................... 638
Keeping Track of the Amount of Roll Paper Left ............................................................................................. 639
Specifying the Ink Drying Time for Rolls ......................................................................................................... 640
Specifying the Cutting Method for Rolls .......................................................................................................... 642
Cutting the Leading Edge of Roll Paper Automatically .................................................................................... 647
Reducing Dust from Cutting Rolls ................................................................................................................... 648
Roll Holder Set ................................................................................................................................................ 649

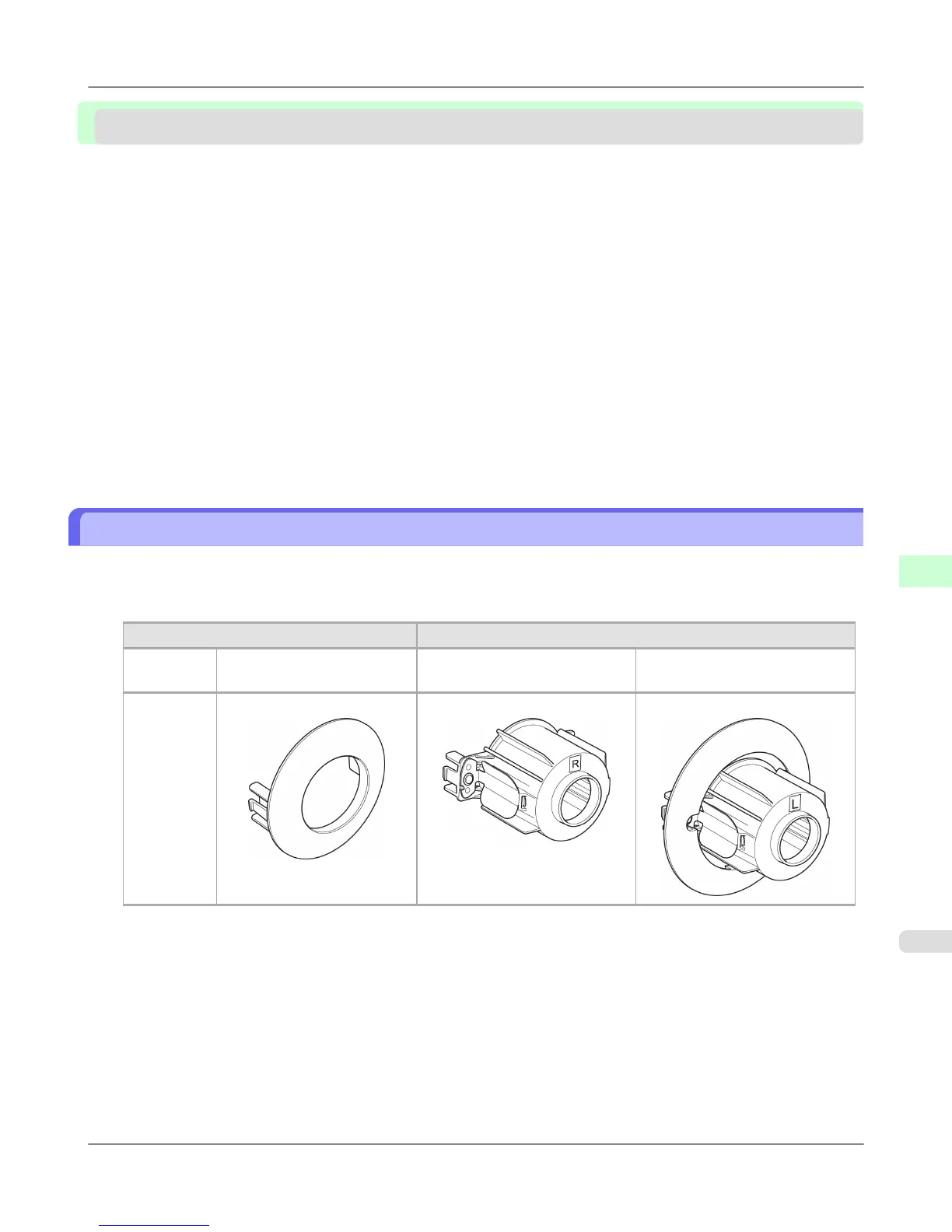

Attaching the Roll Holder to Rolls
When printing on rolls, attach the Roll Holder to the roll.
Rolls have a two- or three-inch paper core. Use the correct attachment for the paper core. The printer comes equipped with
the 2-Inch Paper Core Attachment installed.
Using the 2-Inch Paper Core Attachment Using the 3-Inch Paper Core Attachment
Roll Holder
Side
Holder Stopper Side Roll Holder Side Holder Stopper Side
No Attach-
ment Nee-
ded
2-Inch Paper Core Attachment
3-Inch Paper Core Attachment #1 3-Inch Paper Core Attachment #2
Handling Paper
> Handling rolls >
iPF815 Attaching the Roll Holder to Rolls
7
623
