Adjusting the Printhead
Adjusting the Printhead ................................................................................................................................... 668
Automatic Straightening of Lines and Colors (Auto Head Adj.) .................................................................. 668
Manual Straightening of Lines and Colors (Manual Head Adj) ................................................................... 670
Adjusting Line Misalignment (Head Inc. Adj.) .................................................................................................. 672
Troubleshooting Paper Abrasion and Blurry Images (Head Height) ............................................................... 675
Adjusting the Printhead
If printed documents are affected by the following problems, try adjusting the printhead.
• Printing is faint or affected by banding in different colors
Execute Nozzle
Check to check for printhead nozzle clogging.
For instructions, see "Checking for Nozzle Clogging."
→P.817
• Printed vertical lines are warped or colors are out of alignment
Use Auto Head Adj. or Manual Head Adj to adjust the printhead position.
Normally,
use Auto Head Adj.. However, when using special paper or if printing is not improved after executing
Advanced Adj. in Auto Head Adj., try Manual Head Adj.
For adjustment instructions, Automatic Straightening of Lines and Colors (Auto Head Adj.)
→P.668
or see
"Manual Straightening of Lines and Colors (Manual Head Adj)."
→P.670
• Printed lines are misaligned
Execute Head Inc. Adj. to adjust the angle of inclination of the printhead.
Even slight misalignment can be corrected.
For adjustment instructions, see "Adjusting Line Misalignment (Head Inc. Adj.)." →P.672
• Paper rubs against the printhead, or image edges are blurred
Executing Head Height to adjust the printhead height may improve printing results.
For adjustment instructions, see "Troubleshooting Paper Abrasion and Blurry Images (Head Height)." →P.675

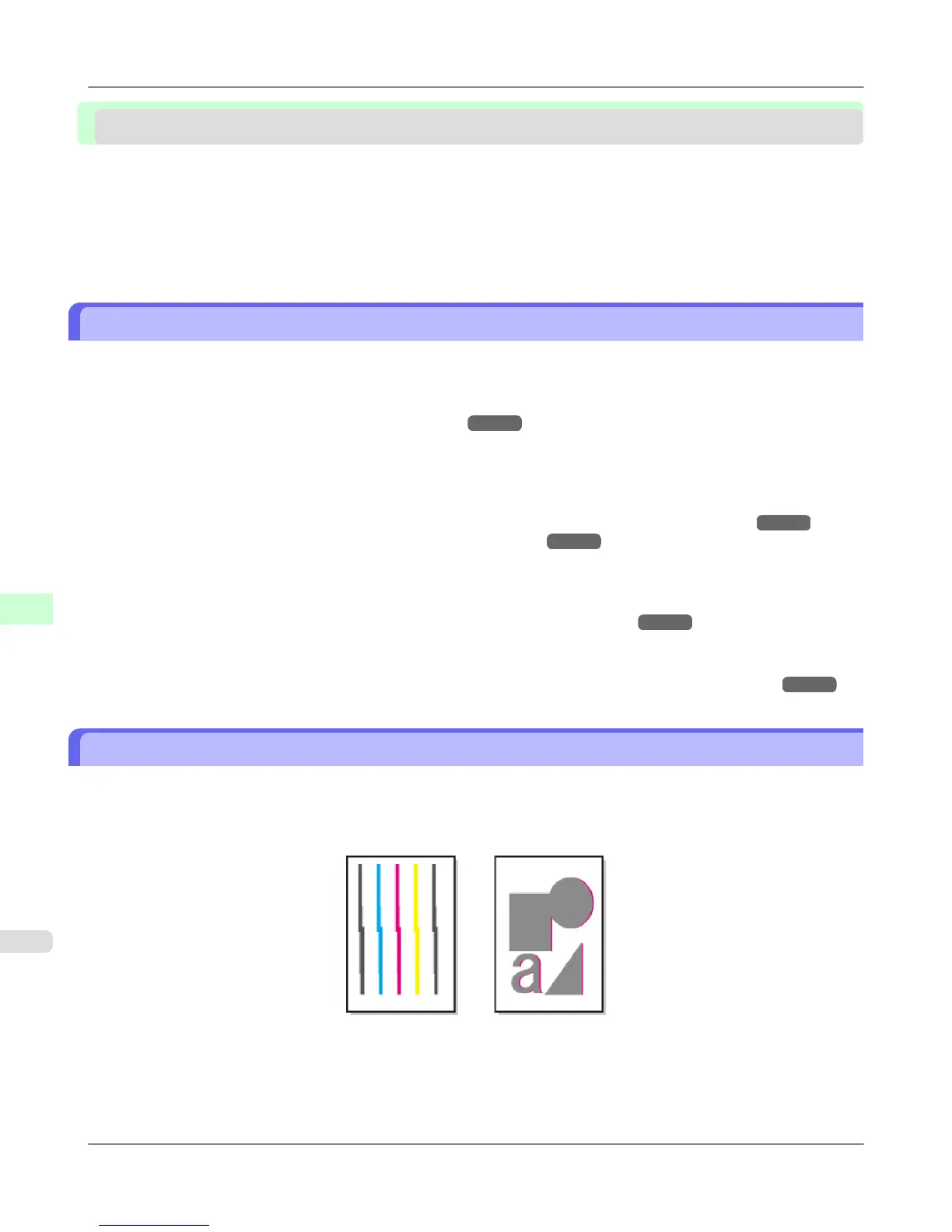

Automatic Straightening of Lines and Colors (Auto Head Adj.)
If printed vertical lines are warped or colors are out of alignment, adjust the Printhead alignment.
Use Auto Head Adj. to have the printer print and read a test pattern for automatic adjustment of the printhead.
Auto Head Adj. offers two modes, Standard Adj. and Advanced Adj..
Standard Adj. will fix most slight image distortion or color misalignment, but if not, try Advanced Adj..
Adjustments for Better Print Quality
>
Adjusting the Printhead
>
Adjusting the Printhead iPF815
8
668
