Queue Settings

The

Queue Settings Screen

contains fields for defining the QoS queue forwarding

types and scheduling. The queue settings can be defined for the whole device

(SPS 208, SPS 224G4) or per queue (SPS 2024). The queue settings are defined

for the whole device. The queue settings can be defined per queue.

To define queue scheduling:

STEP 1 Click QoS > Queue Settings. The

Queue Settings Screen

opens.

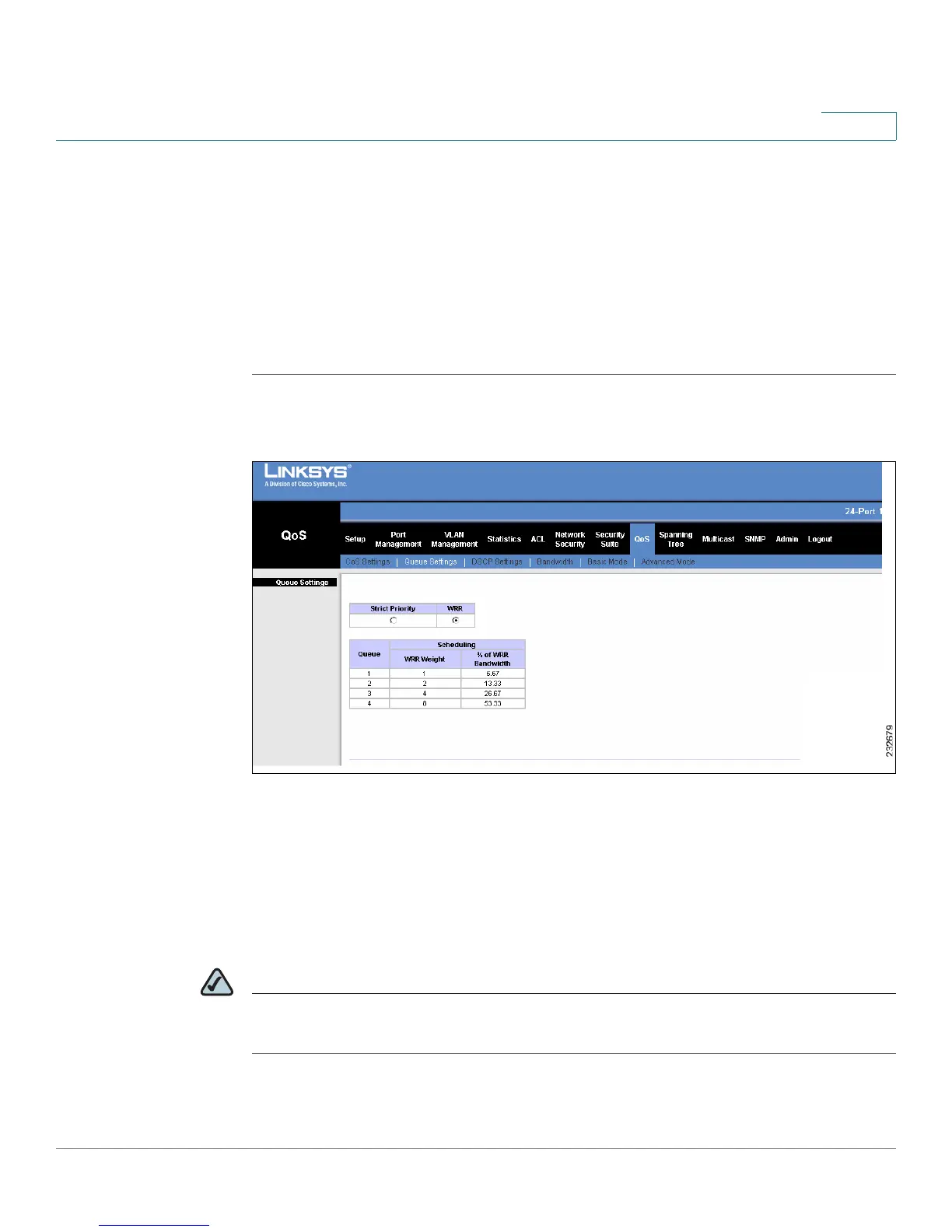

Figure 72 Queue Settings Screen

The

Queue Settings Screen

contains the following fields:

• Strict Priority — Indicates that traffic scheduling on the whole device is

based strictly on the queue priority.

• WRR — Indicates that traffic scheduling on the whole device is based

strictly on the

Weighted Round Robin

(WRR). The predetermined weights 8,

2, 4, and 1 are assigned to queues 4, 3, 2 and 1, respectively.

NOTE WRR and Strict Priority exclude each other and are applied globally to all ports on

the device.
