QoS

Advanced Mode

SPS208G/SPS224G4/SPS2024 Service Provider Switches User Guide 177

The

Out of Profile DSCP Assignments Screen

contains the following fields:

• DSCP In — Indicates the DSCP value in the incoming packet.

• DSCP Out — Indicates the DSCP value in the outgoing packet.

STEP 3 Define the DSCP mappings.

STEP 4 Click Save & Close to save the modifications and close the

Out of Profile DSCP

Assignments

Screen

(clicking Save keeps the

Out of Profile DSCP Assignments

Screen

open). The device is updated.

Policy Name

In the

Policy Name Screen

, administrators create new policies which can be

assigned to interfaces.

To create a new policy:

STEP 1 Click QoS > Advanced Mode. The

Advanced Mode Screen

opens.

STEP 2 In the Add Alarms area, click Policy Settings. The

Policy Name Screen

opens.

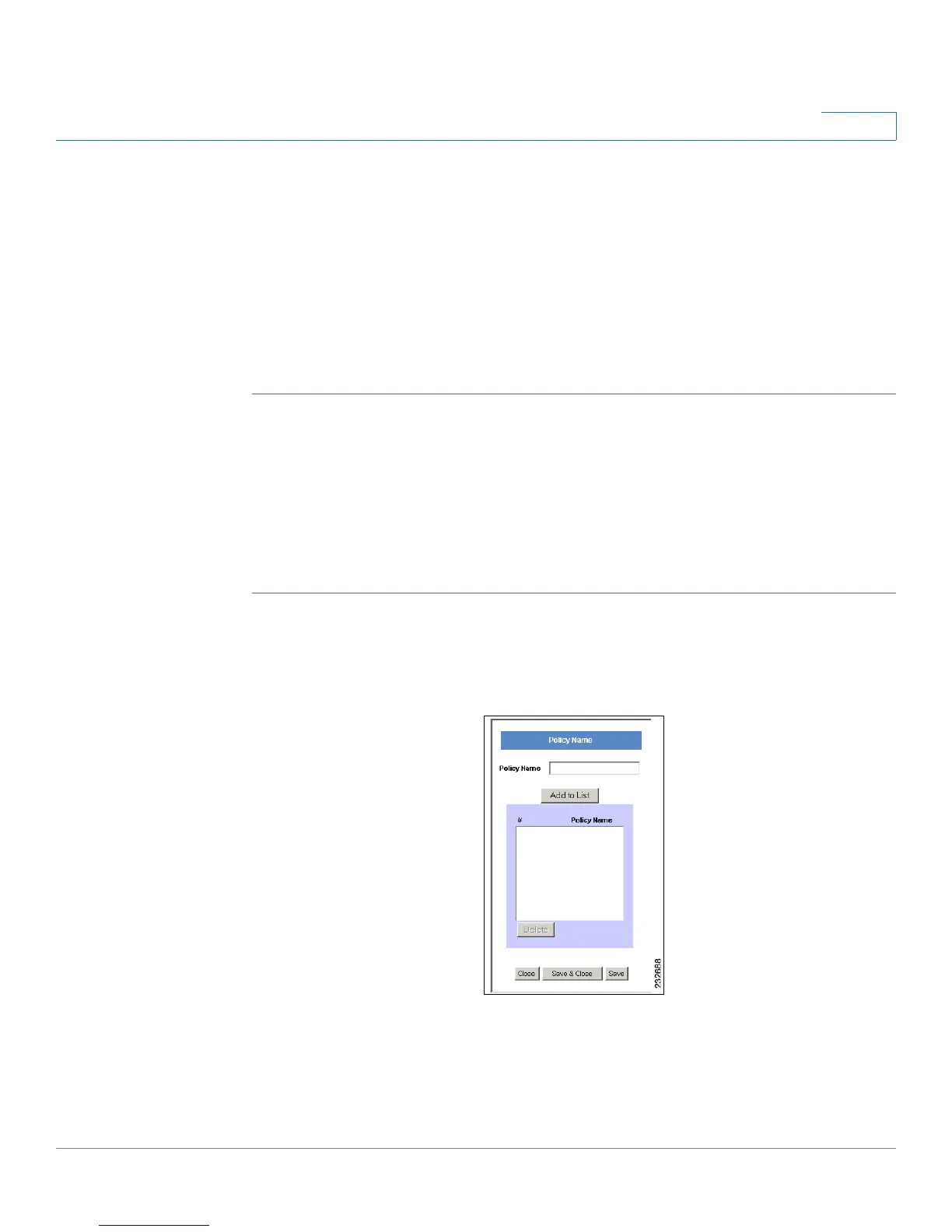

Figure 79 Policy Name Screen

The

Policy Name Screen

is divided into the following areas:

• Policy Name Parameter

• Policy Name Table
