Left control panel view

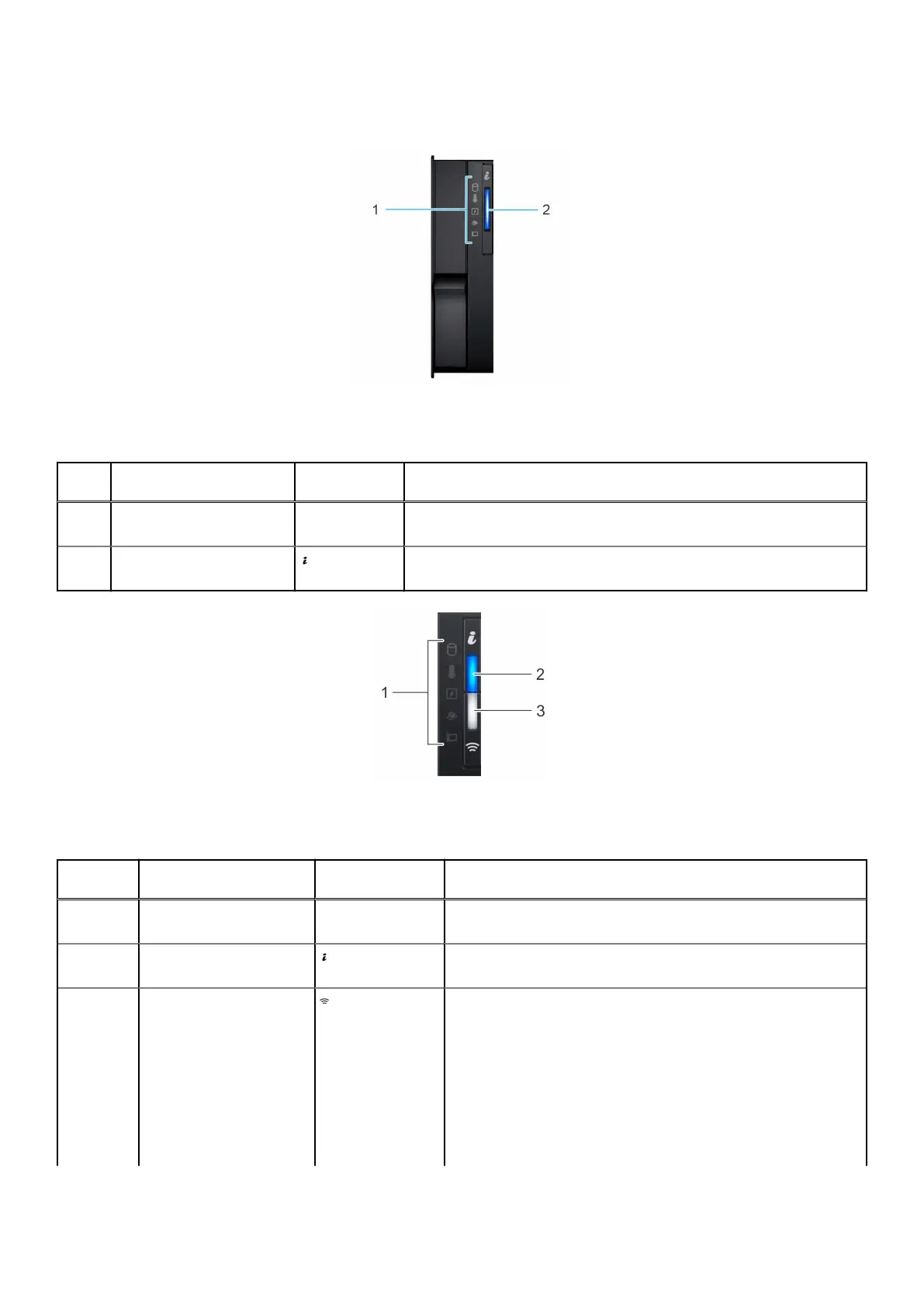

Figure 5. Left control panel
Table 2. Left control panel
Item Indicator, button, or
connector
Icon Description
1 Status LED indicators NA Indicates the status of the system. For more information, see the
Status LED indicators section.
2 System health and system
ID
Indicates the system health. For more information, see the System
health and system ID indicator codes section.
Figure 6. Left control panel with optional iDRAC Quick Sync 2 indicator
Table 3. Left control panel with optional iDRAC Quick Sync 2 indicator
Item Indicator, button, or
connector
Icon Description
1 Status LED indicators N/A Indicates the status of the system. For more information, see the
Status LED indicators section.
2 System health and system
ID indicator
Indicates the system health. For more information, see the
System health and system ID indicator codes section.
3 iDRAC Quick Sync
2 wireless indicator
(optional)
Indicates if the iDRAC Quick Sync 2 wireless option is
activated. The Quick Sync 2 feature allows management of the
system using mobile devices. This feature aggregates hardware/
firmware inventory and various system level diagnostic/error
information that can be used in troubleshooting the system. You
can access system inventory, Dell Lifecycle Controller logs or
system logs, system health status, and also configure iDRAC,
BIOS, and networking parameters. You can also launch the virtual
Keyboard, Video, and Mouse (KVM) viewer and virtual Kernel-
based Virtual Machine (KVM), on a supported mobile device.
System overview 11
