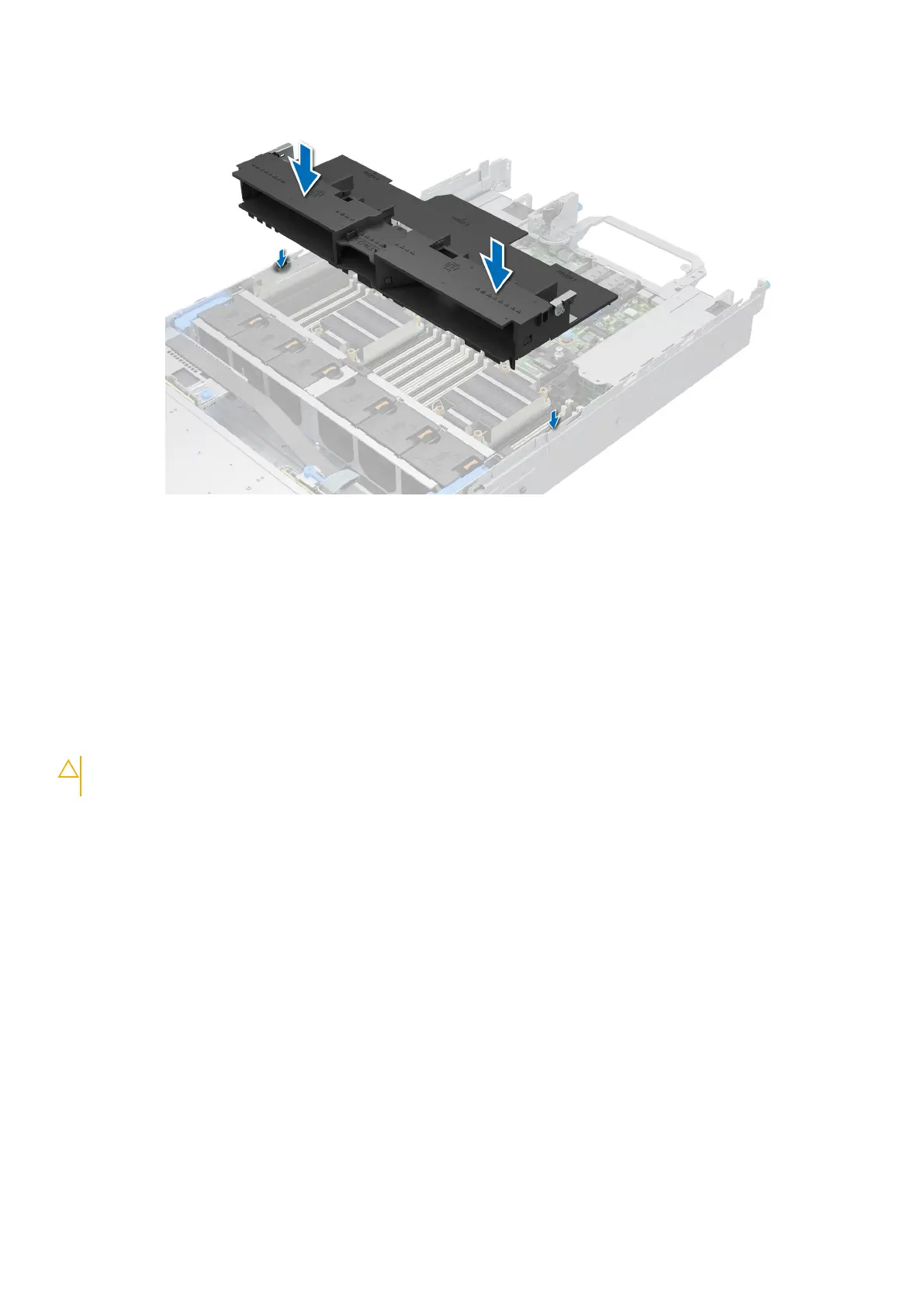

Figure 43. Installing the GPU air shroud
Next steps
1. Install the full length expansion risers.
2. Install the GPU air shroud top cover.
3. Follow the procedure listed in After working inside your system.
Removing the 2 x 2.5-inch rear drive module air shroud
Prerequisites
CAUTION:
Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Press the orange release tabs and lift the air shroud out of the rear drive module.
94
Installing and removing system components
