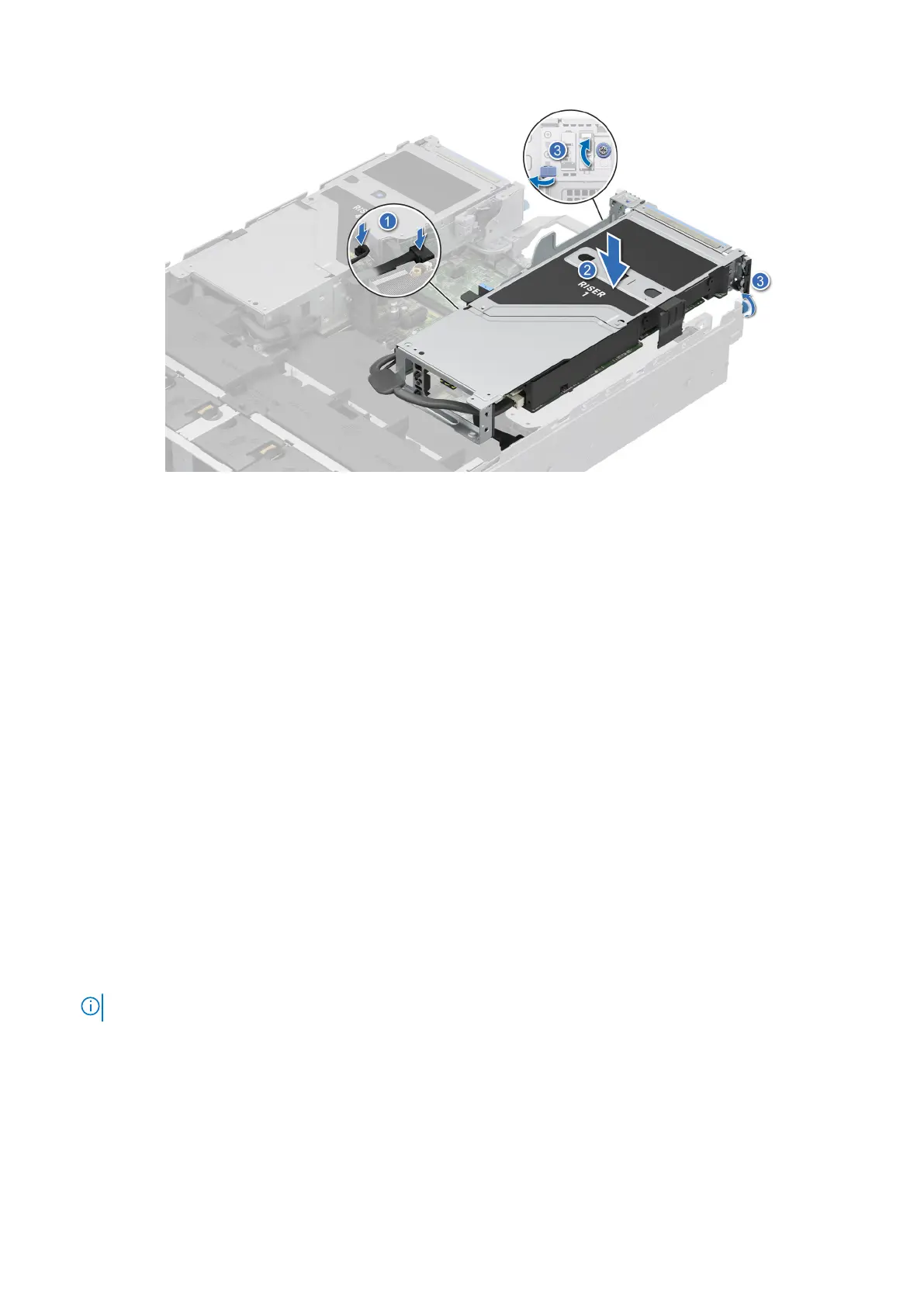

Figure 199. Installing the expansion card riser (Riser 1)
Next steps
1. If applicable, connect the cables to the expansion card or system board.
2. Install the GPU air shroud top cover.
3. Follow the procedure listed in After working inside your system.
4. Install any device drivers required for the card as described in the documentation for the card.
Removing a GPU
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If applicable, disconnect the cables from the expansion card.
4. Remove the GPU air shroud top cover.
5. Remove the full length expansion card riser.
Steps
1. To remove the GPU from Riser 1:
a. Tilt the expansion card holder latch on the riser.
b. Press the tab, and pull the card holder from the riser.
c. Hold the GPU card by the edges and pull the card from the riser.
d. Disconnect the GPU power cable from the GPU card.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
258 Installing and removing system components
