Inside the system

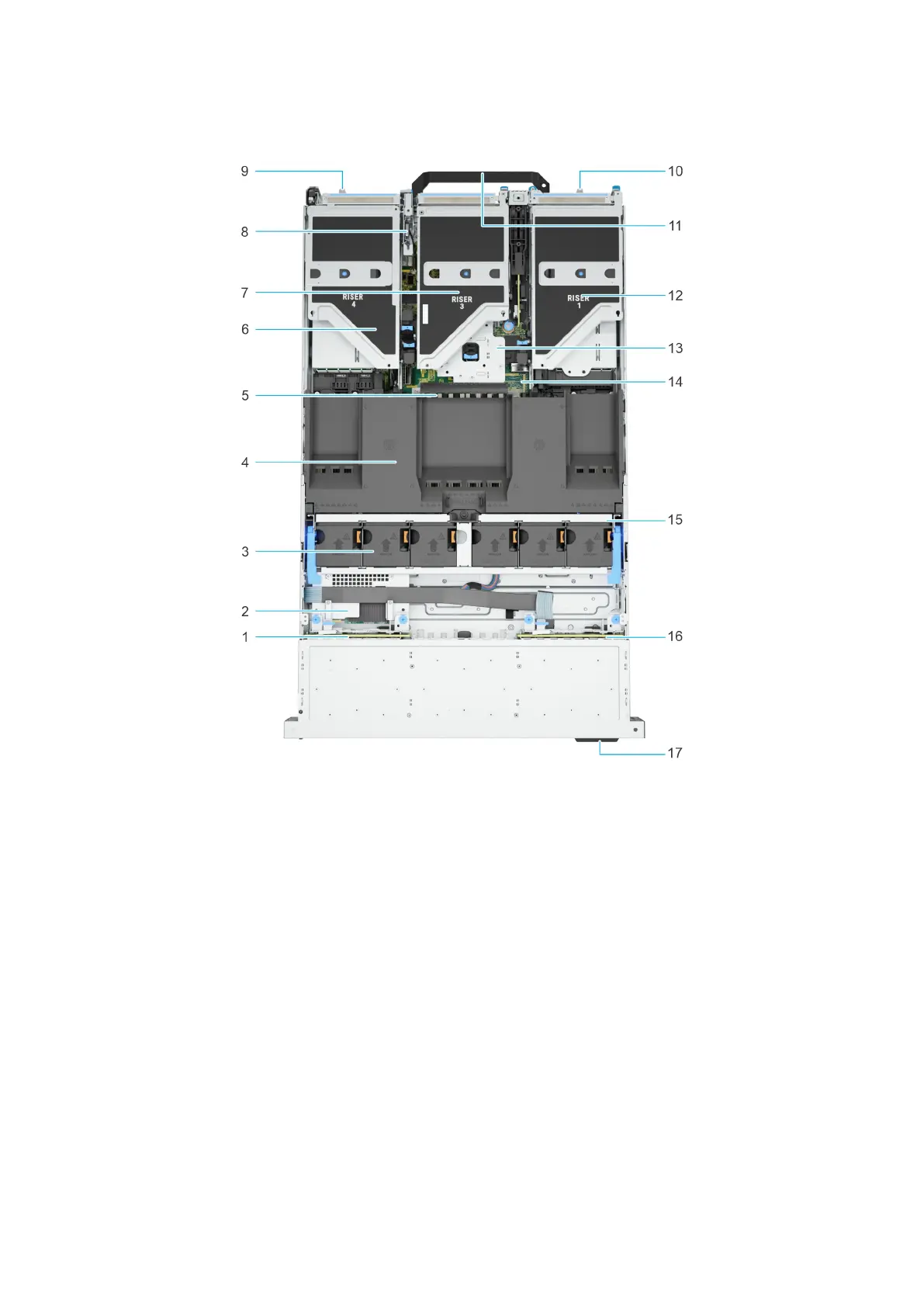

Figure 12. Inside the system
1.
Backplane 2. Rear mounting front PERC module
3. Cooling fans 4. Air shroud
5. Memory DIMM sockets 6. Expansion riser 4
7. Expansion riser 3 8. Intrusion switch module
9. Power supply unit (PSU2) 10. Power supply unit (PSU1)
11. Rear handle 12. Expansion riser 1
13. Expansion riser 2 14. System board
15. Cooling fan cage assembly 16. Backplane
17. Express Service Tag
18 System overview
