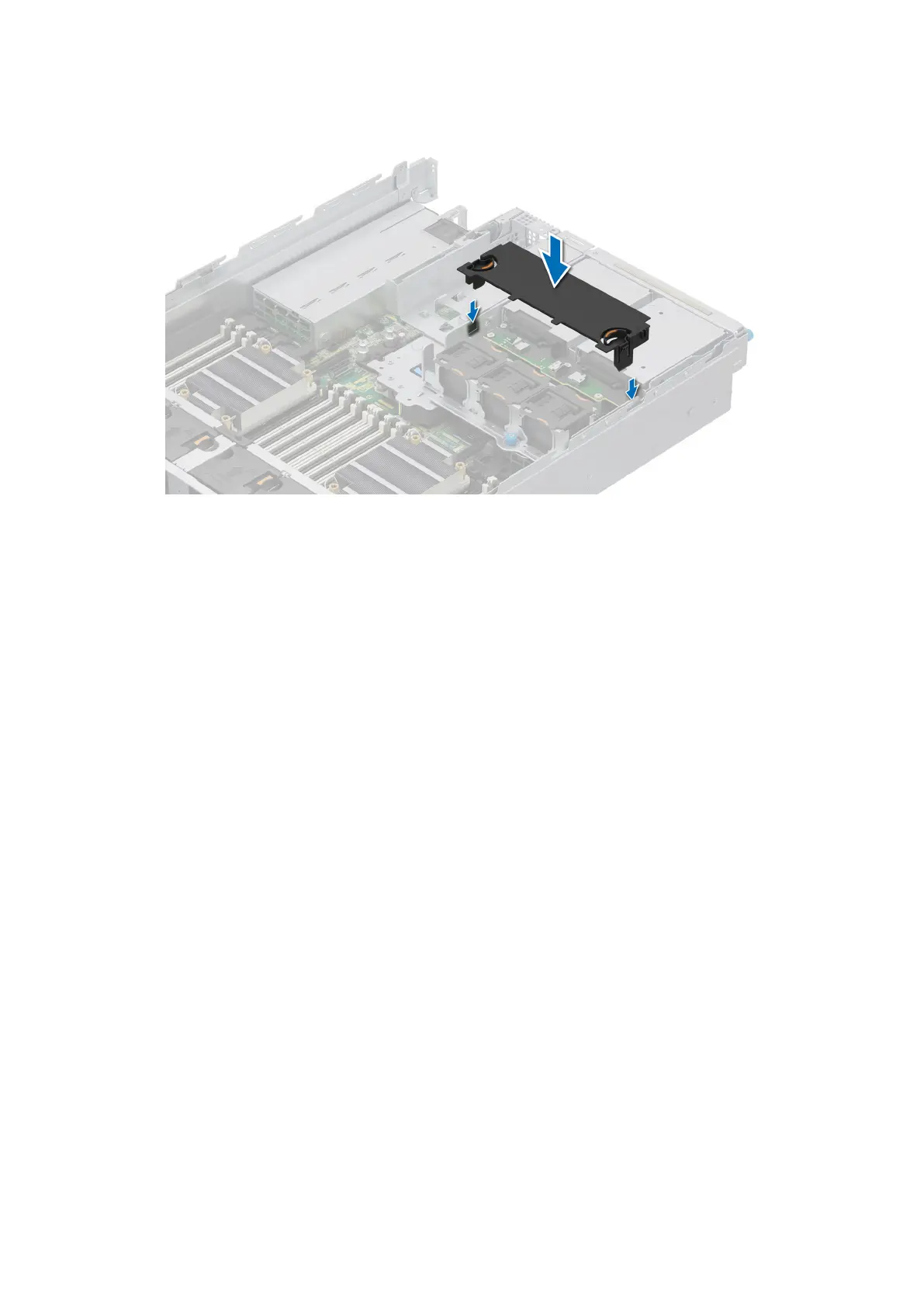

Figure 47. Installing the 4 x 2.5-inch rear drive module air shroud
Next steps
1. Follow the procedure listed in After working inside your system.
Cooling fans
Removing the cooling fan cage assembly
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If required, remove the air shroud or remove the GPU air shroud.
Steps
1. Lift the blue release levers to unlock the cooling fan cage assembly from the system.
2. Hold the release levers, and lift the cooling fan cage assembly away from the system.
98
Installing and removing system components
