Optional VGA port for Direct Liquid Cooling module
Removing the VGA port
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud or remove the GPU air shroud.
NOTE: VGA port is supported only in slot 4 of the expansion card riser.
Steps
1. Loosen the captive screws on the system.
2. Press the blue release tab or blue button on the riser and holding the edges lift the expansion card riser from the riser
connector on the system board.
3. Disconnect the VGA port cable from the liquid cooling (LC) rear I/O board.

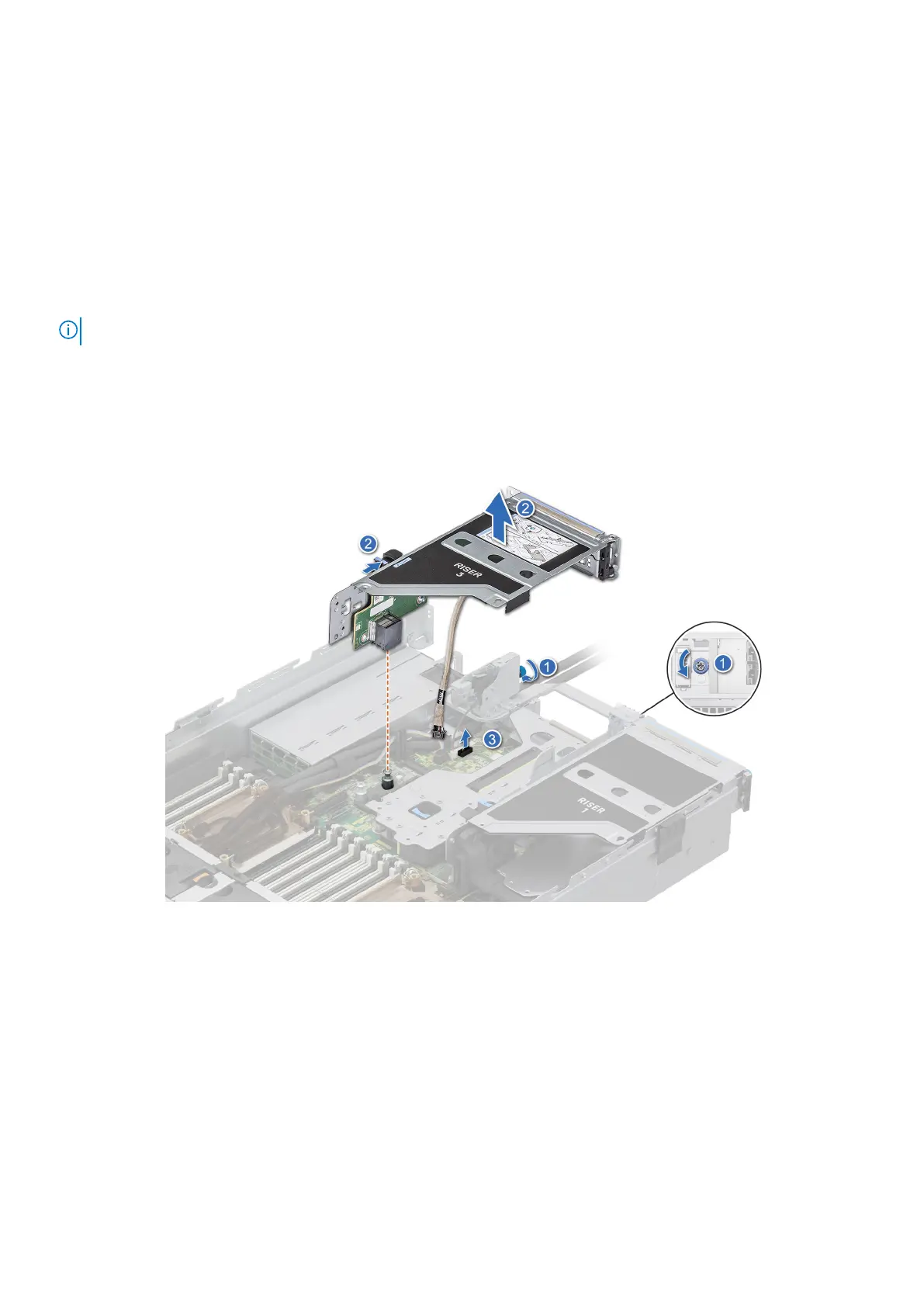

Figure 214. Disconnecting the VGA port cable
4. Open the latch on the expansion card riser and slide the VGA port out of the expansion card riser.
Installing and removing system components
269
