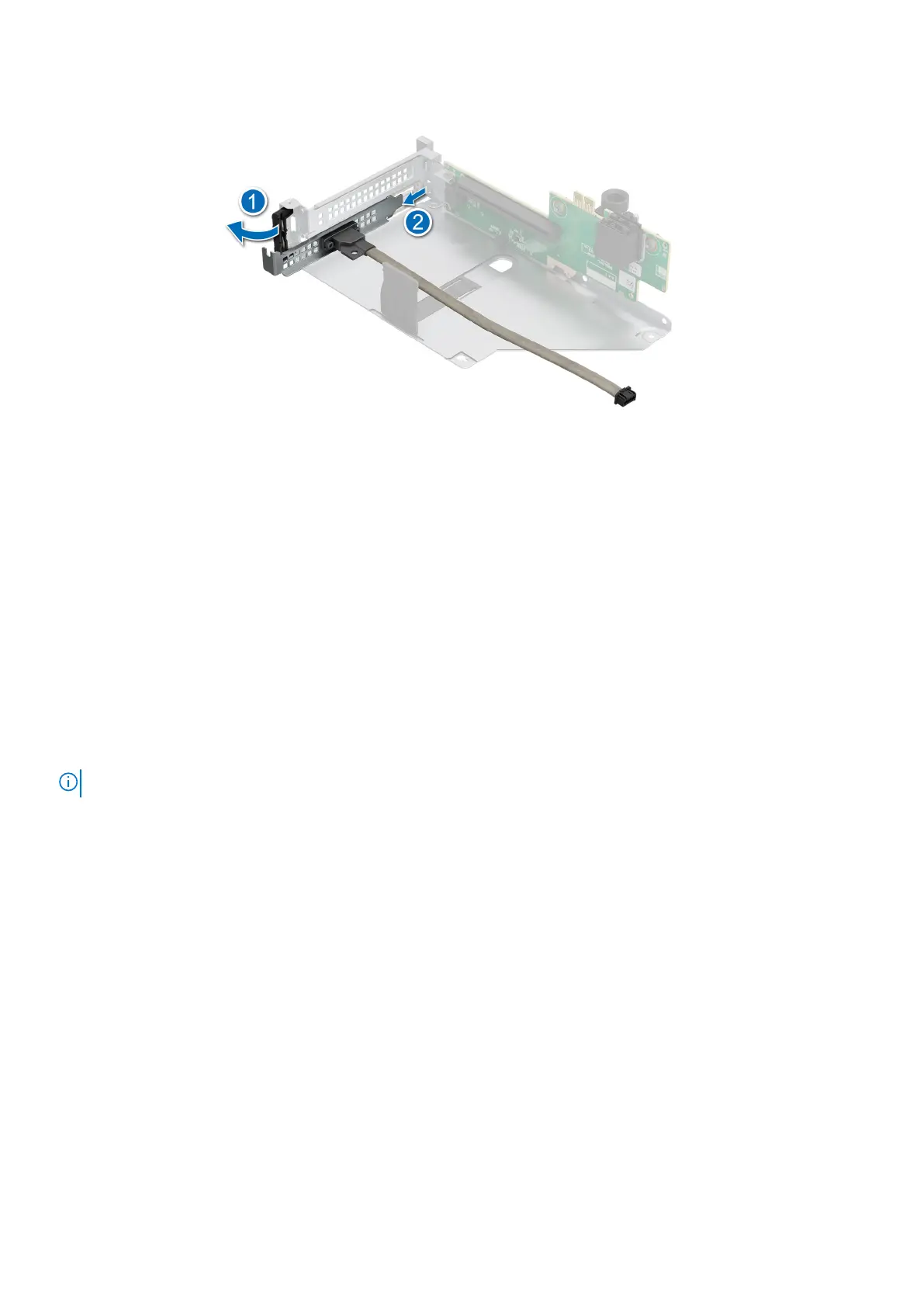

Figure 215. Removing the VGA port
5. Install the filler bracket if not replacing the VGA port.
Next steps
1. Replace the VGA port.
Installing the VGA port
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud or remove the GPU air shroud.
4. Remove expansion card riser.
NOTE: VGA port is supported only in slot 4 of the expansion card riser.
Steps
1. Open the latch on the expansion card riser and remove the filler bracket from the expansion card riser.
2. Slide the VGA port into the expansion card riser.
270
Installing and removing system components
