Installing the BOSS-N1 module
The installation of the BOSS-N1 module to the Riser 1 and 4 x 2.5-inch rear drive module is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If installed, remove the BOSS module blank.
Steps
1. Connect the BOSS-N1 power and signal cables to the connectors on the BOSS-N1 module.

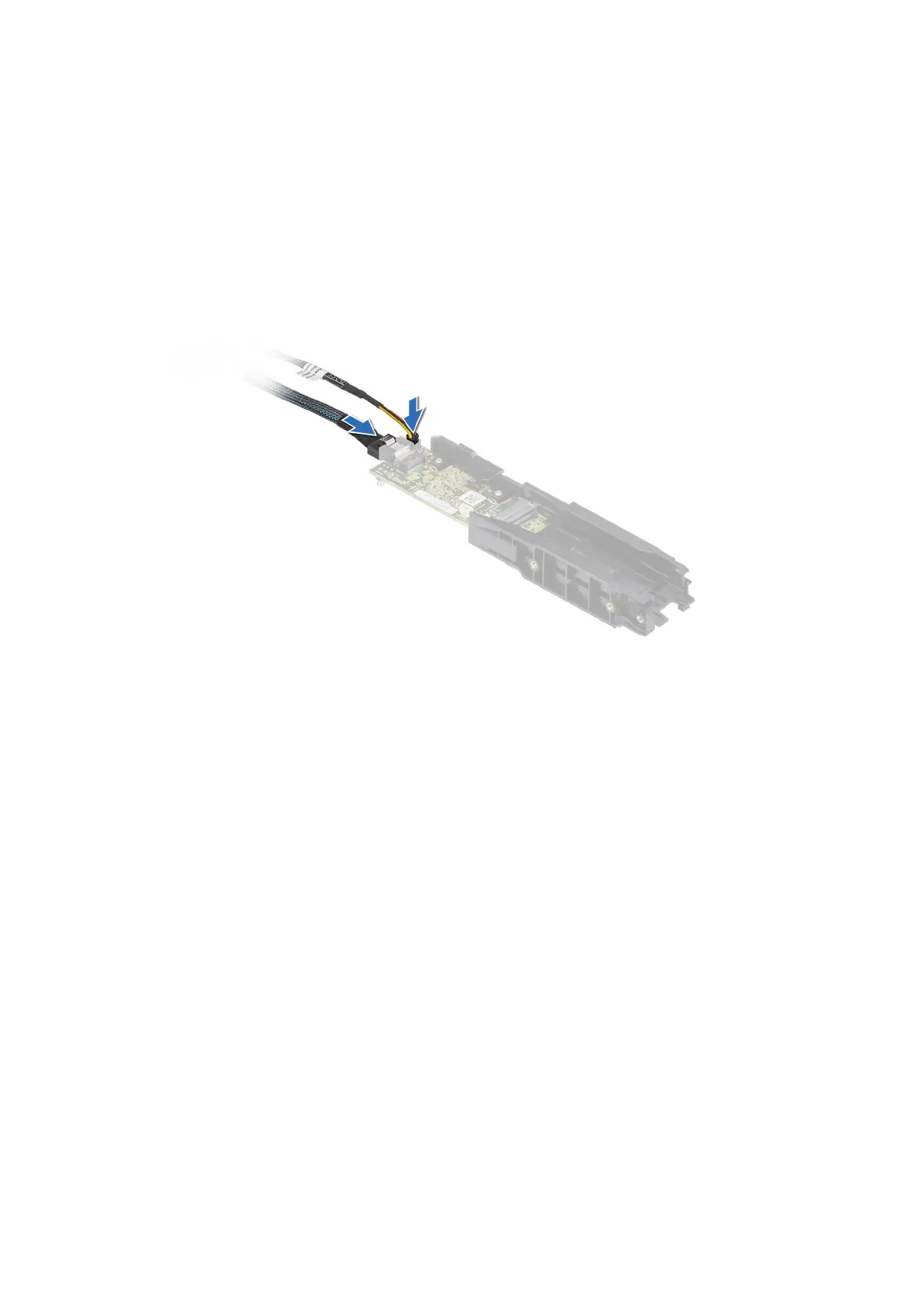

Figure 226. Connecting the BOSS-N1 power and signal cables to the BOSS-N1 module
2. Align the BOSS-N1 module at an angle with the controller card module slot.
3. Insert the BOSS-N1 module and push the module horizontally towards the rear of the system until firmly seated.
4. Using the Phillips #1 screwdriver, secure the BOSS-N1 module with the M3 x 0.5 x 4.5 mm screw.
5. Connect the BOSS-N1 power and signal cable to the connectors on the system board.
278
Installing and removing system components
