NOTE:
● Ensure latching features on retaining clip, and DLC module are aligned during assembly.
● Ensure that the pin 1 indicator on the DLC module is aligned with the pin 1 indicator on the retaining clip before
placing the DLC module onto the retaining clip.

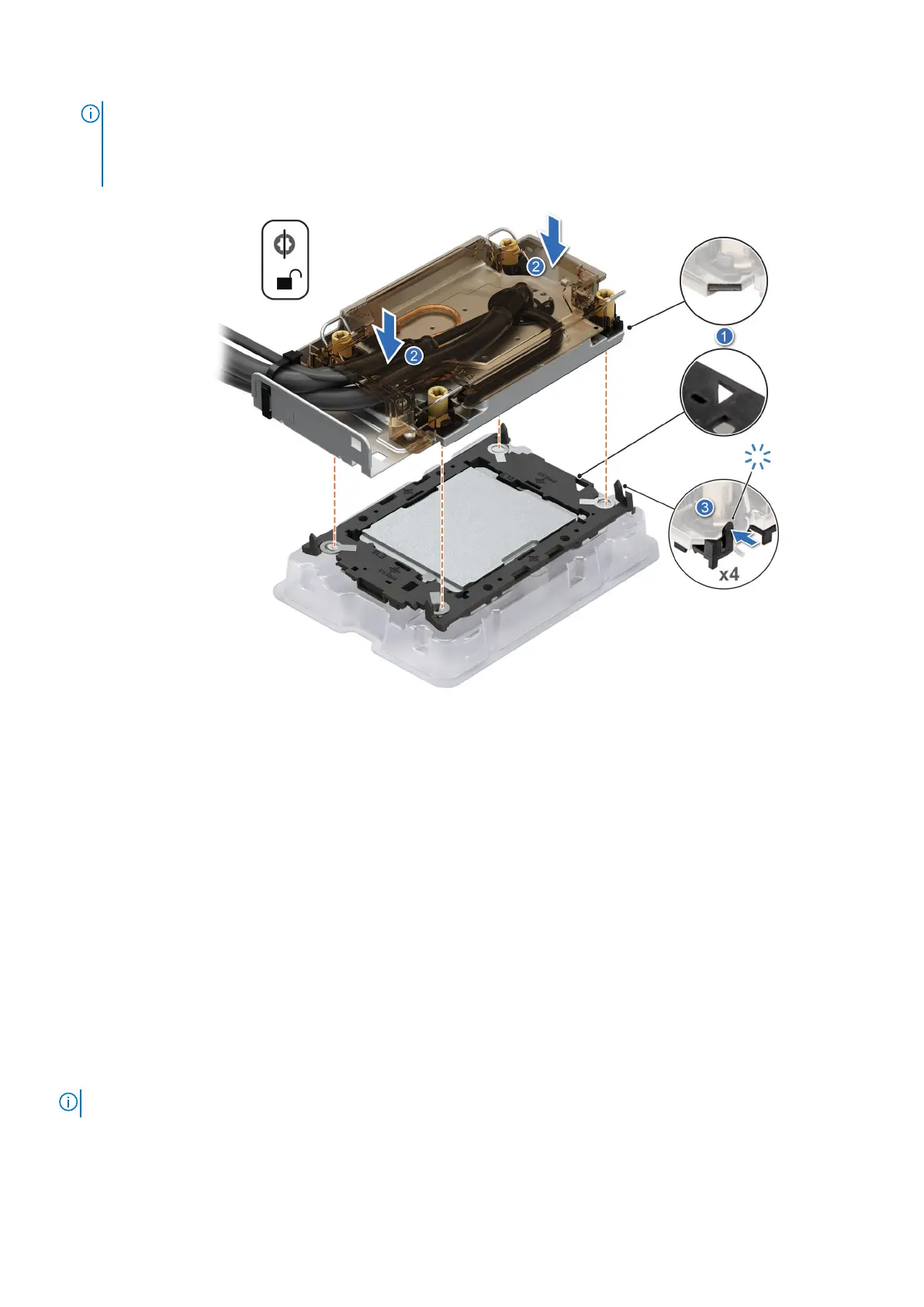

Figure 154. Installing the DLC module onto the processor
Next steps
1. Install the Direct Liquid Cooling module.
2. Install the air shroud or install the GPU air shroud.
3. Follow the procedure listed in After working inside your system.
Installing the Direct Liquid Cooling module
Prerequisites
Never uninstall the Direct Liquid Cooling (DLC) module from a processor unless you intend to replace the processor or system
board. The DLC module is necessary to maintain proper thermal conditions.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud or remove the GPU air shroud.
4. Remove the expansion card riser.
5. If installed, remove the processor dust cover.
NOTE: Ensure anti-tilt wires on the DLC module are in the unlocked position.
Steps
1. Align the DLC module with the standoff screws on the system board.
196
Installing and removing system components
