System overview
The PowerEdge R760 system is a 2U server that supports:
● Two 4
th
Gen Intel® Xeon® Scalable Processors with up to 56 cores
● Optional Direct Liquid Cooling
● 32 DIMM slots
● Two redundant AC or DC power supply units
● Up to 12 x 3.5-inch SAS, SATA or 24 x 2.5-inch, 16 x 2.5-inch, 8 x 2.5-inch, or 2 x 2.5-inch(rear), 4 x 2.5-inch(rear) SAS,
SATA, or NVMe (HDD/SSD) drives
NOTE: For more information about how to hot swap NVMe PCIe SSD U.2 device, see the Dell Express Flash NVMe
PCIe SSD User's Guide at https://www.dell.com/support > Browse all products > Infrastructure > Data Center
Infrastructure > Storage Adapters & Controllers > Dell PowerEdge Express Flash NVMe PCIe SSD > Select This
Product > Documentation > Manuals and Documents.
NOTE: All instances of SAS, SATA drives are referred to as drives in this document, unless specified otherwise.
CAUTION: Do not install GPUs, network cards, or other PCIe devices on your system that are not validated
and tested by Dell. Damage caused by unauthorized and invalidated hardware installation will null and void the
system warranty.
Topics:
• Front view of the system
• Rear view of the system
• Inside the system
• Locating the Express Service Code and Service Tag
• System information labels
• Rail sizing and rack compatibility matrix
Front view of the system

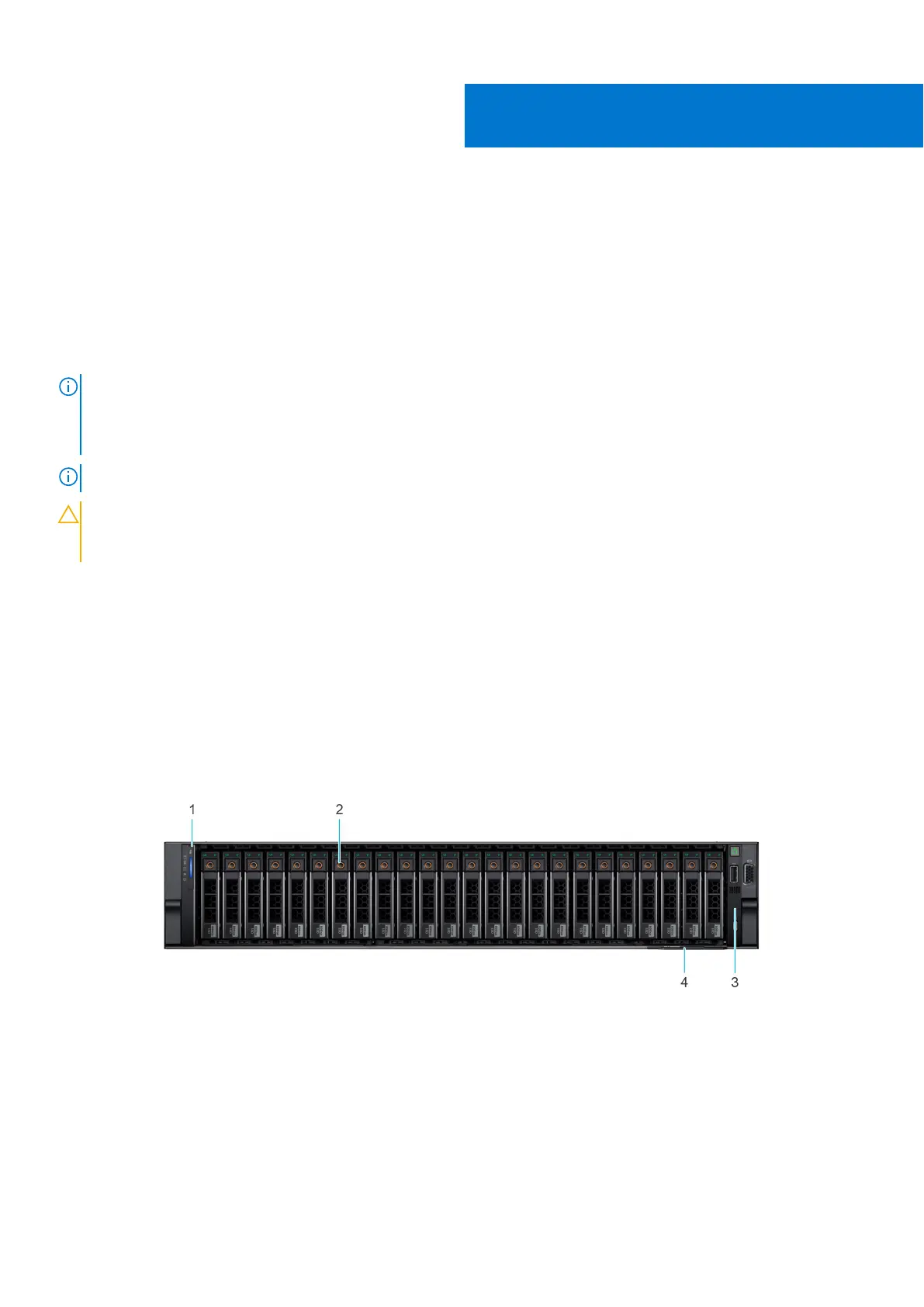

Figure 1. Front view of 24 x 2.5-inch drive system
2
System overview 9
