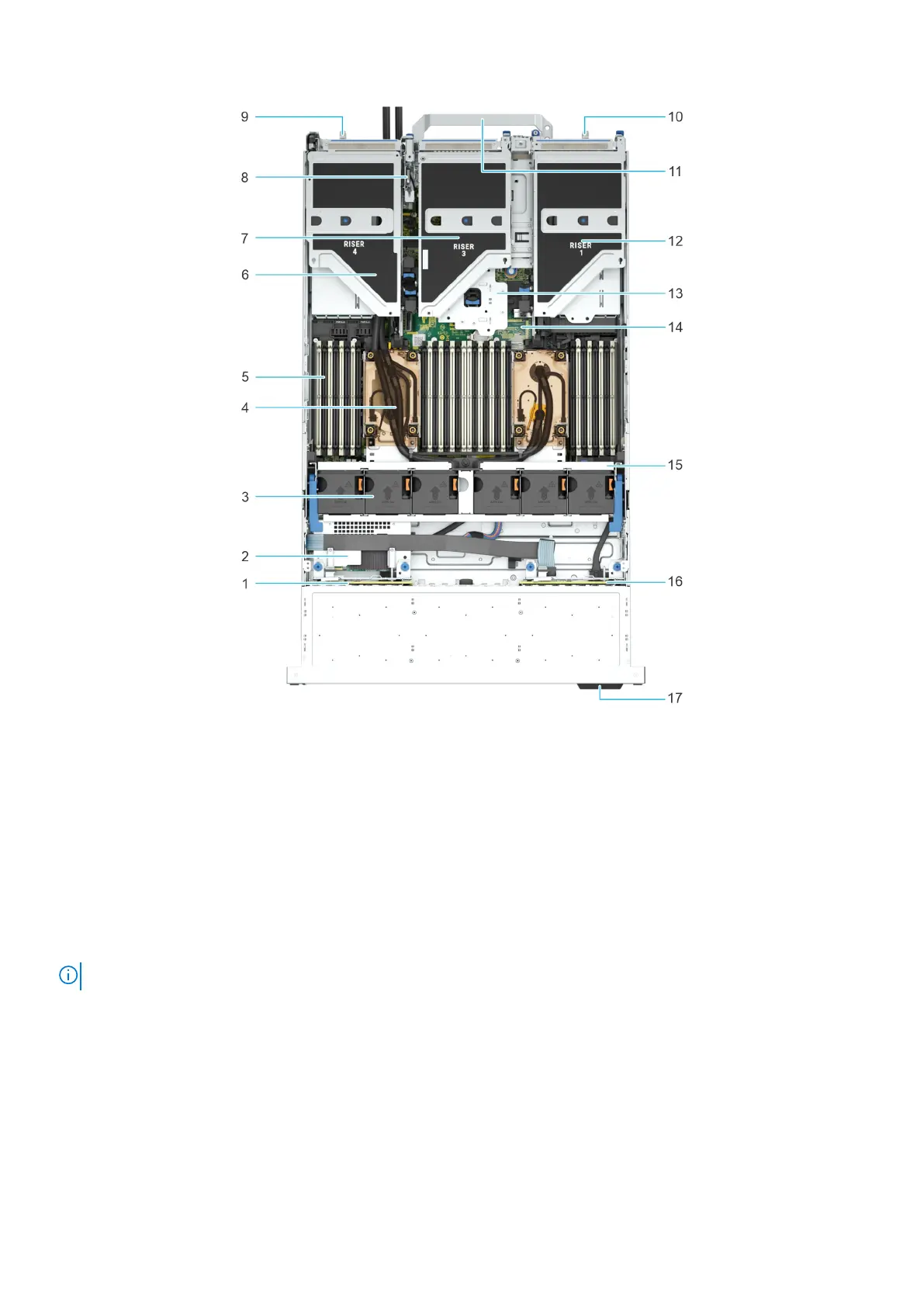

Figure 14. Inside the system with processor liquid cooling module
1.
Backplane 2. Rear mounting front PERC module
3. Cooling fans 4. Processor liquid cooling modules
5. Memory DIMM sockets 6. Expansion riser 4
7. Expansion riser 3 8. Intrusion switch module
9. Power supply unit (PSU2) 10. Power supply unit (PSU1)
11. Rear handle 12. Expansion riser 1
13. Expansion riser 2 14. System board
15. Cooling fan cage assembly 16. Backplane
17. Express Service Tag
NOTE: Air shroud is hidden in the above image to show the processor liquid cooling configuration.
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The Express Service Tag is located on the front of the system that includes system information such as the Service Tag,
Express Service Code, Manufacture date, NIC, MAC address, QRL label, and so on. If you have opted for the secure default
access to iDRAC, the Information tag also contains the iDRAC secure default password. If you have opted for iDRAC Quick Sync
2, the Information tag also contains the OpenManage Mobile (OMM) label, where administrators can configure, monitor, and
troubleshoot the PowerEdge servers.
20
System overview
