System diagnostics and indicator codes
The diagnostic indicators on the system front panel display system status during system startup.
Topics:
• Status LED indicators
• System health and system ID indicator codes
• iDRAC Quick Sync 2 indicator codes
• iDRAC Direct LED indicator codes
• LCD panel
• NIC indicator codes
• Power supply unit indicator codes
• Drive indicator codes
• Using system diagnostics
Status LED indicators
NOTE: The indicators display solid amber if any error occurs.

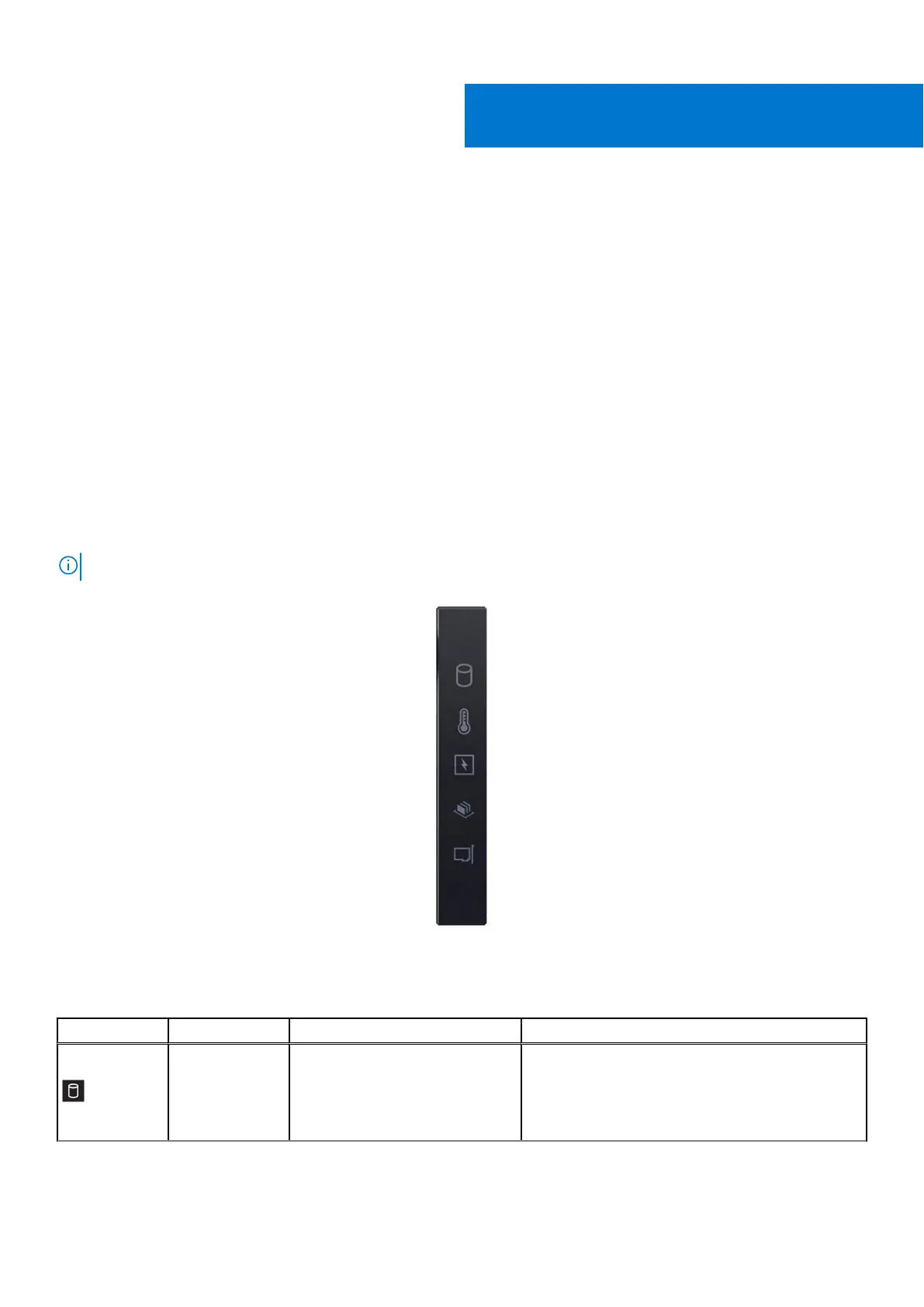

Figure 262. Status LED indicators
Table 159. Status LED indicators and descriptions
Icon Description Condition Corrective action
Drive indicator
The indicator turns solid amber if
there is a drive error.
● Check the System Event Log to determine if the
drive has an error.
● Run the appropriate Online Diagnostics test.
Restart the system and run embedded
diagnostics (ePSA).
10
318 System diagnostics and indicator codes
