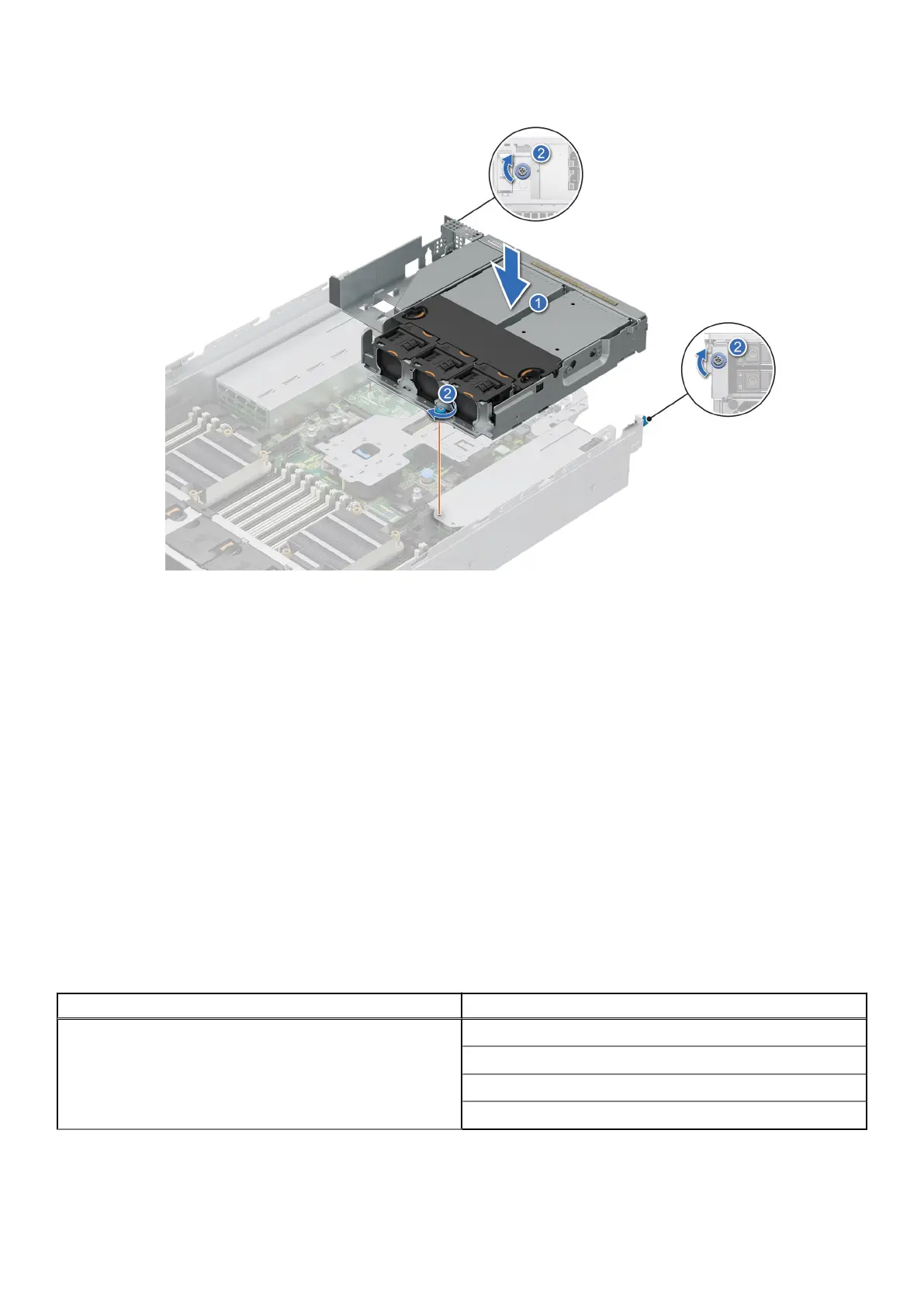

Figure 65. Installing the 4 x 2.5-inch rear drive module
Next steps
1. Connect and route all the cables to the rear drive module.
2. Install the drives.
3. If removed, install the BOSS-N1 module.
4. If removed, install the air shroud.
5. Follow the procedure listed in After working inside your system.
Drive backplane
This is a service technician replaceable part only.
Drive backplane
Depending on your system configuration, the drive backplanes that are supported are listed here:
Table 78. Supported backplane options
System Supported hard drives options
PowerEdge R760
2.5-inch (x 8) NVMe backplane
2.5-inch (x 8) SAS, or SATA backplane
3.5-inch (x 12) SAS or SATA backplane
2.5-inch (x 24) SAS, SATA, or NVMe backplane
116 Installing and removing system components
