Removing a power supply unit adapter
Remove the PSU adapter, when installing PSU with 86 mm wide form factor.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Using a Phillips #1 screwdriver, loosen the screw and remove the power supply unit adapter.

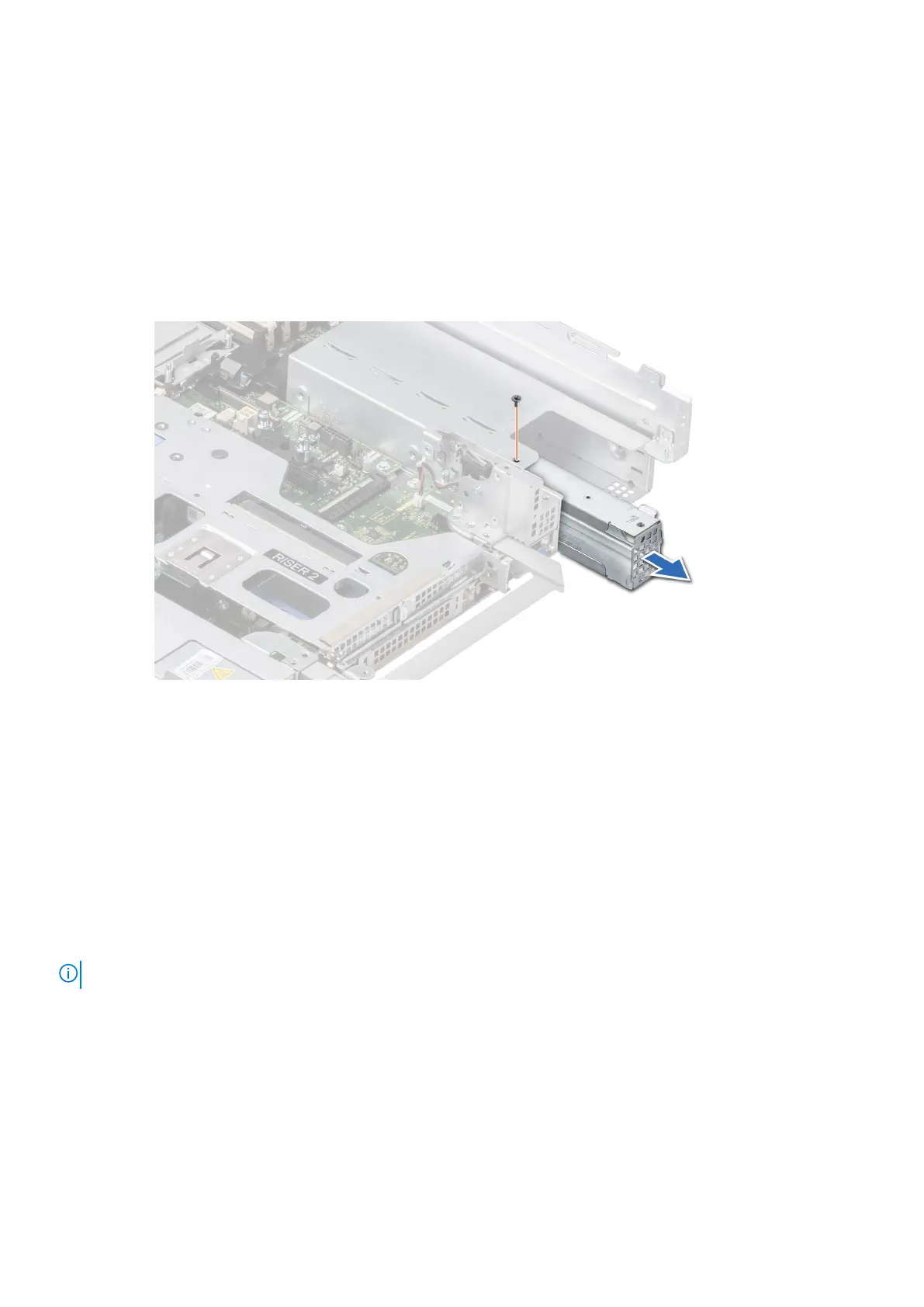

Figure 242. Removing a power supply unit adapter
Next steps
1. Replace the PSU adapter or Install the PSU.
Installing a power supply unit adapter
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If required, Remove the PSU.
NOTE: Remove the PSU adapter, when installing PSU with 86 mm wide form factor.
Steps
1. Align and insert the power supply unit adapter.
2. Using a phillips #1 screwdriver, tighten the screw.
290
Installing and removing system components
