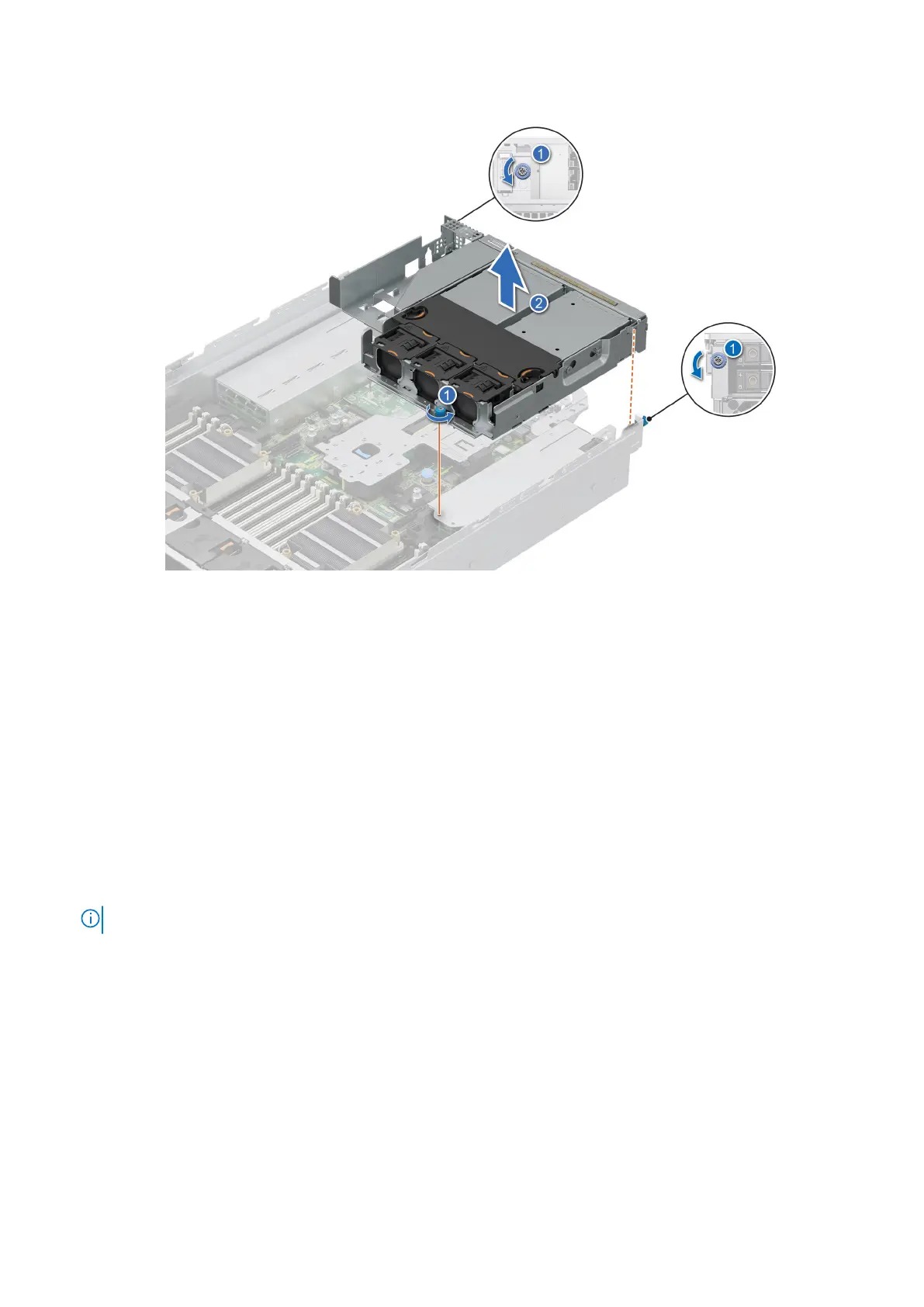

Figure 64. Removing the 4 x 2.5-inch rear drive module
Next steps
1. Replace the 4 x 2.5-inch rear drive module.
Installing the 4 x 2.5-inch rear drive module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If required, remove the air shroud.
4. Remove the drives.
5. If installed, remove the BOSS-N1 module.
6. Disconnect the cables from the rear drive module.
NOTE: Refer to cable routing section for more information.
Steps
1. Align and lower the rear drive module with the guide on the system.
2. Using a Phillips #2 screwdriver, tighten the captive screws that secure the rear drive module into the system.
