Chassis dimensions

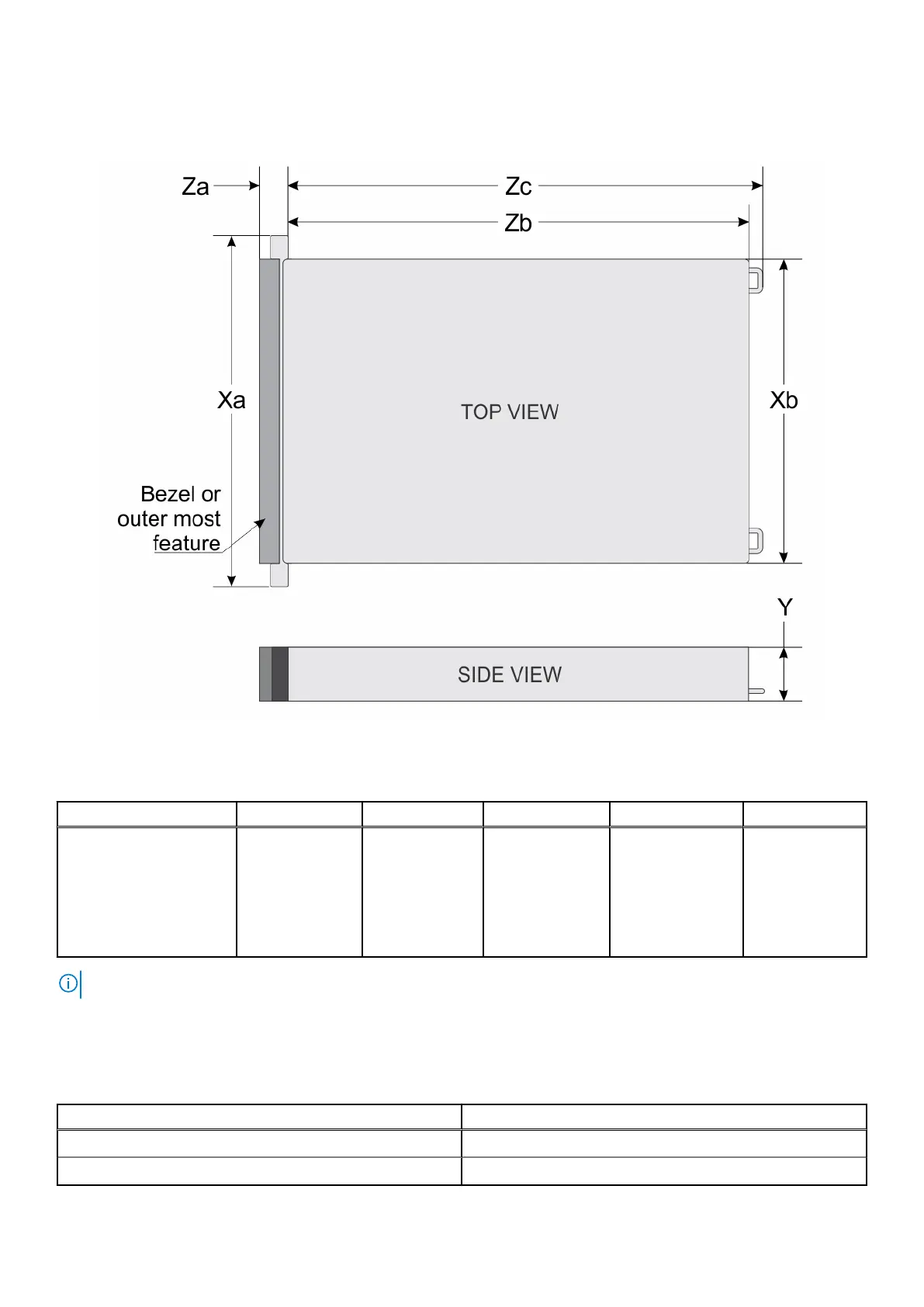

Figure 28. Chassis dimensions
Table 9. PowerEdge R760 chassis dimensions
Xa Xb Y Za Zb Zc
482.0 mm (18.97 inches) 434.0 mm (17.08
inches)
86.8 mm (3.41
inches)
35.84 mm (1.41
inches) With
bezel
22.0 mm (0.86
inches)
Without bezel
700.7 mm (27.58
inches) Ear to rear
wall
736.29 mm
(28.98 inches)
Ear to PSU
handle
NOTE: Zb is the nominal rear wall external surface where the system board I/O connectors reside.
System weight
Table 10. PowerEdge R760 system weight
System configuration Maximum weight (with all drives/SSDs)
A server with fully populated drives 36.1 kg (79.58 lbs)
A server without drives and PSU installed 25.1 kg (55.33 lbs)
Technical specifications 31
