Installing the internal USB card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the expansion card risers.
Steps
1. Connect the USB key to the internal USB card.
NOTE: For information about the exact location of USB on system board, see System board jumpers and connectors
section.
2. Align the internal USB card with the connector on the system board and press firmly until the internal USB card is seated.

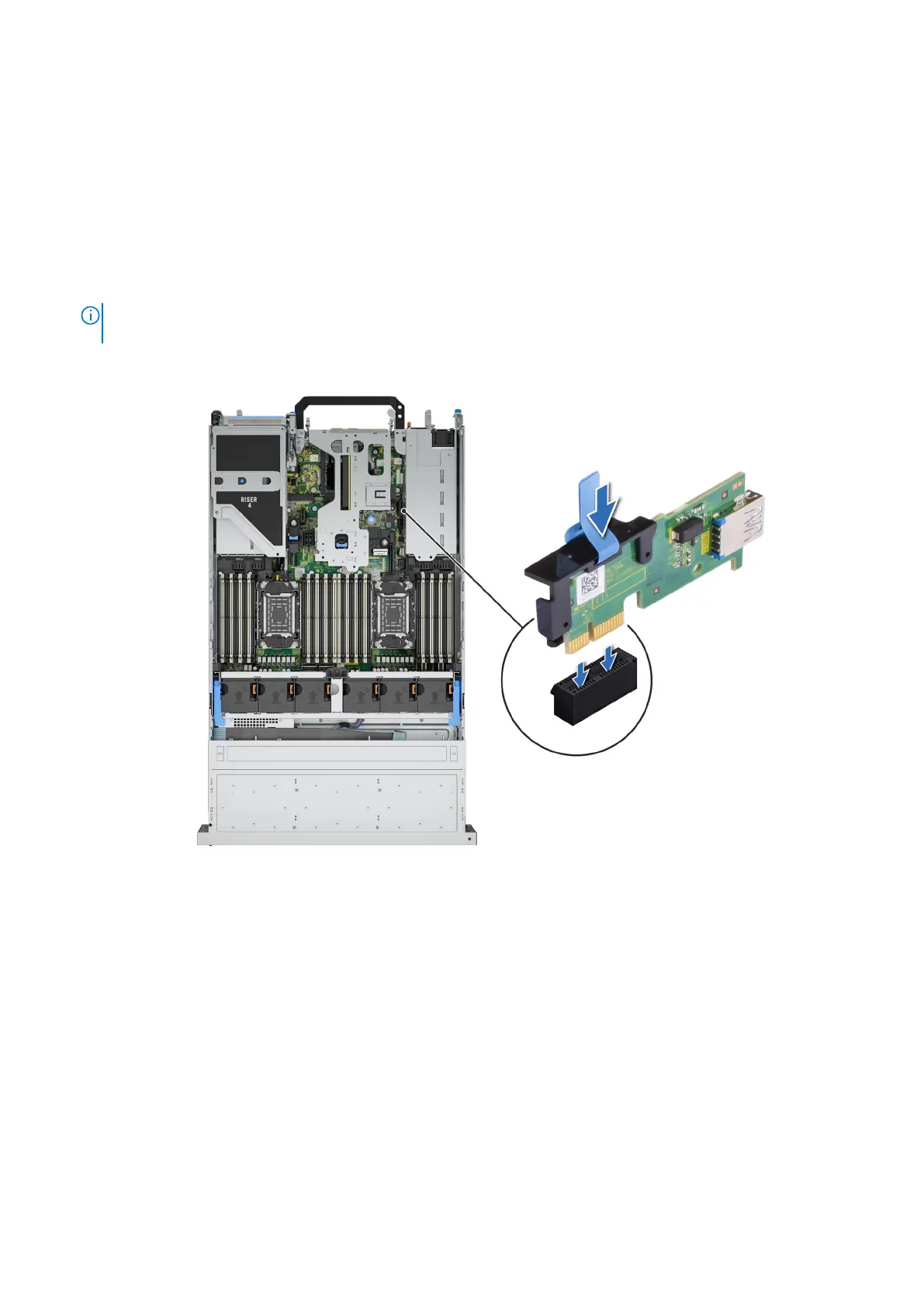

Figure 233. Installing the internal USB card
Next steps
1. Install the expansion card risers.
2. Follow the procedure listed in After working inside your system.
3. While booting, press F2 to enter System Setup and verify that the system detects the USB memory key.
