11. BP_PWR_1 12. BP_DST_PA2 (PCIe/NVMe connector)
13. BP_DST_PB1 (PCIe/NVMe connector) 14. BP_DST_PA1 (PCIe/NVMe connector)
Removing the drive backplane
Prerequisites
CAUTION: To prevent damage to the drives and backplane, remove the drives from the system before removing
the backplane.
CAUTION: Note the number of each drive and temporarily label them before you remove the drive so that you
can reinstall them in the same location.
NOTE: The procedure to remove the backplane is similar for all backplane configurations.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the drive backplane cover.
4. If installed, remove the air shroud or remove the GPU air shroud.
5. Remove the cooling fan cage assembly.
6. Remove the drives.
7. If required, remove the rear mounting front PERC module.
8. Observe and disconnect the drive backplane cables from the connector on the system board and backplane.
NOTE: Refer to cable routing section for more information.
Steps
1. Press the release tab to disengage the drive backplane from the hooks on the system.
2. Lift and pull the drive backplane out of the system.
NOTE:
To avoid damaging the backplane, remove the disconnected backplane cables from the cable routing clips before
removing the backplane.

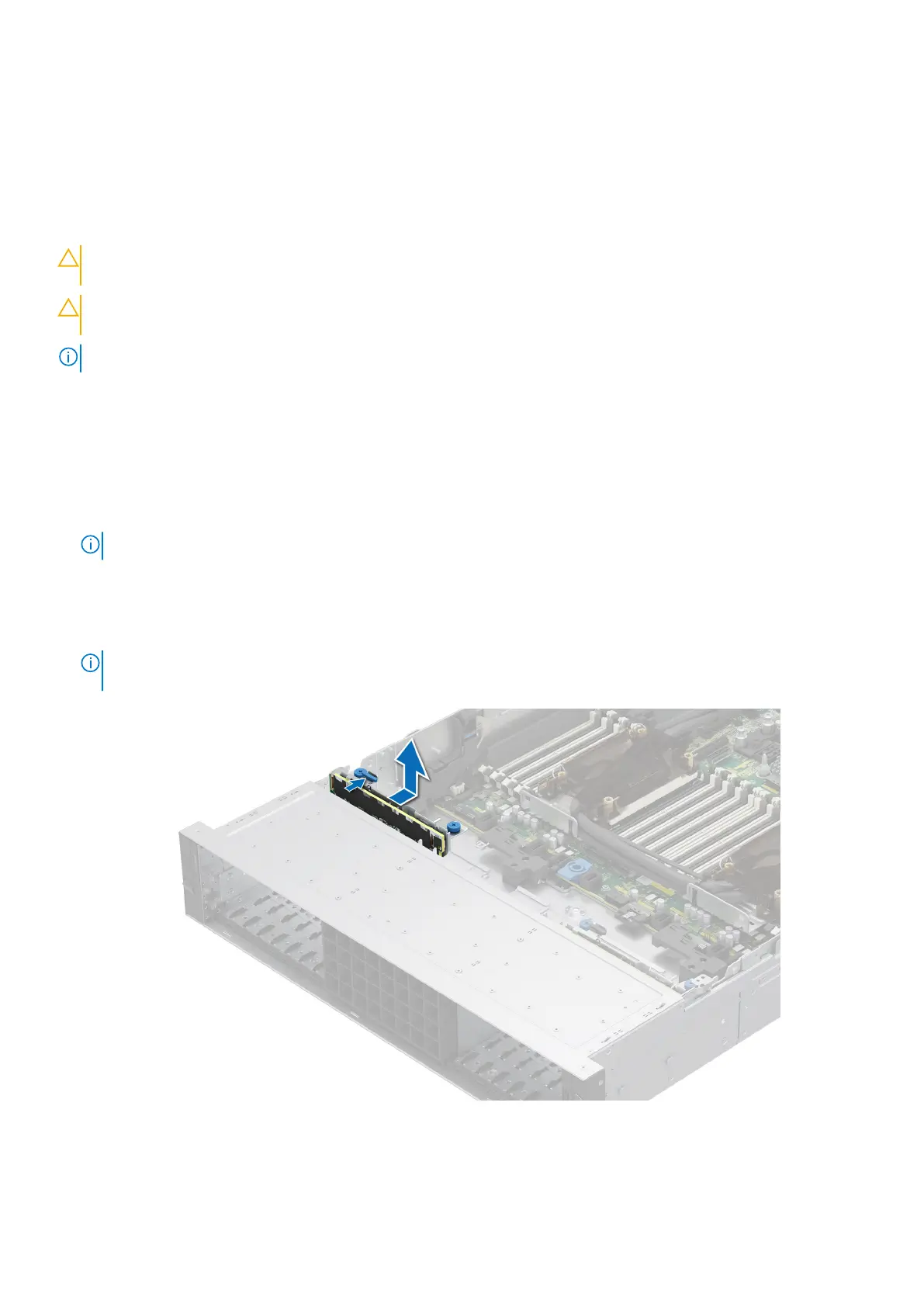

Figure 72. Removing the drive backplane
Installing and removing system components
119
