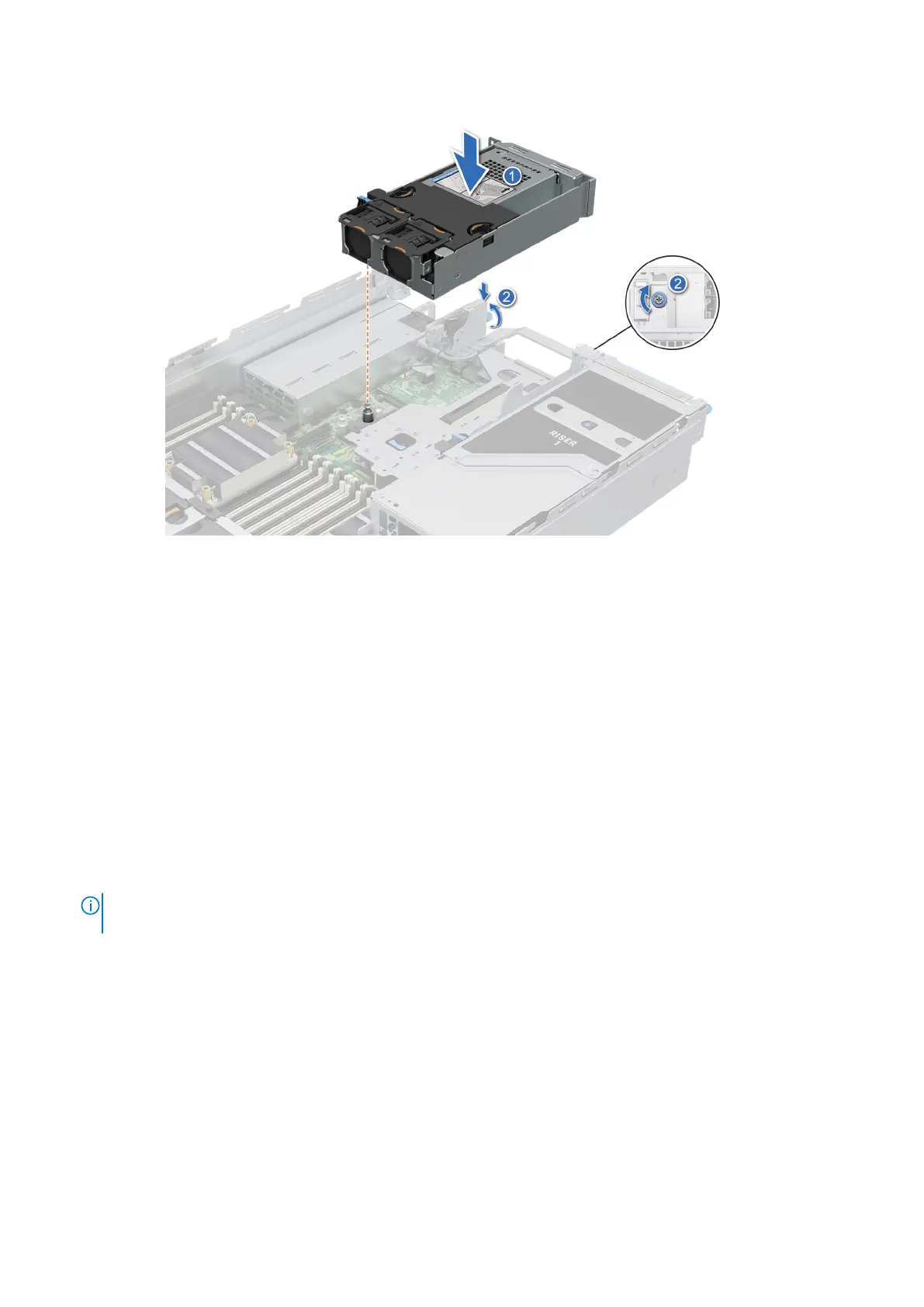

Figure 63. Installing the 2 x 2.5-inch rear drive module
Next steps
1. Connect and route all the cables to the rear drive module.
2. Install the drives.
3. If removed, install the air shroud.
4. Follow the procedure listed in After working inside your system.
Removing the 4 x 2.5-inch rear drive module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If required, remove the air shroud.
4. Remove the drives.
5.
NOTE:
If BOSS-N1 module is installed, make sure to disconnect the BOSS-N1 power cable and Signal cable before
removing the 4 x 2.5-inch rear drive module.
Installing and removing system components 113
