Optional BOSS-N1 module
Removing the BOSS-N1 module blank
The removal of the BOSS-N1 module blank from the Riser 1 and 4 x 2.5-inch rear drive module is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps

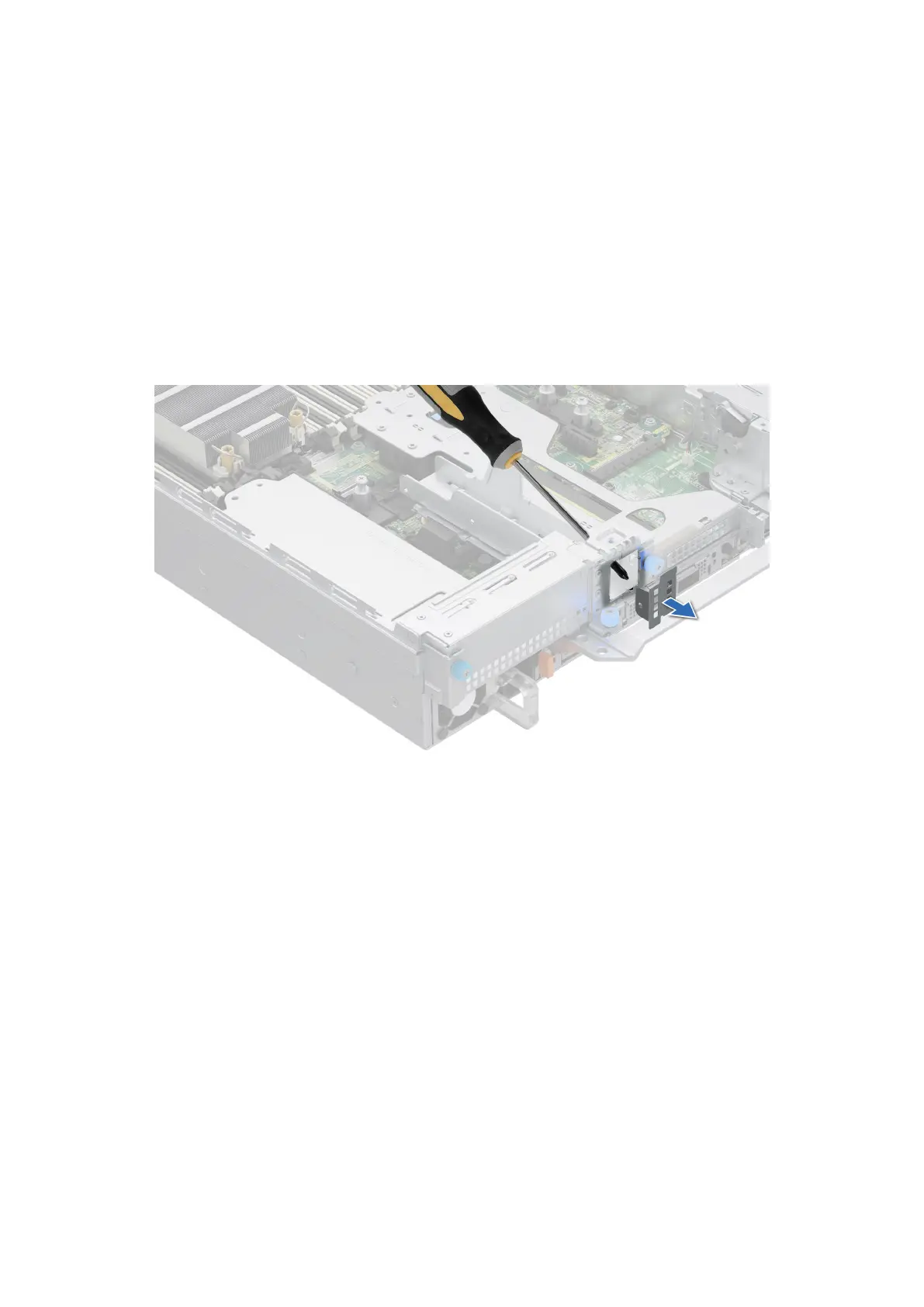

Use a screwdriver to push out the blank from the BOSS-N1 module bay.
Figure 218. Removing the BOSS-N1 module blank
Next steps
1. Replace the BOSS-N1 module blank or install BOSS-N1 module.
Installing the BOSS-N1 module blank
The installation of the BOSS-N1 module blank to the Riser 1 and 4 x 2.5-inch rear drive module is similar.
Prerequisites
Follow the safety guidelines listed in the Safety instructions.
Steps
Align the blank with the BOSS-N1 module bay and push it into the bay until it clicks into place.
272
Installing and removing system components
