20 MES1000, MES2000 Ethernet Switches

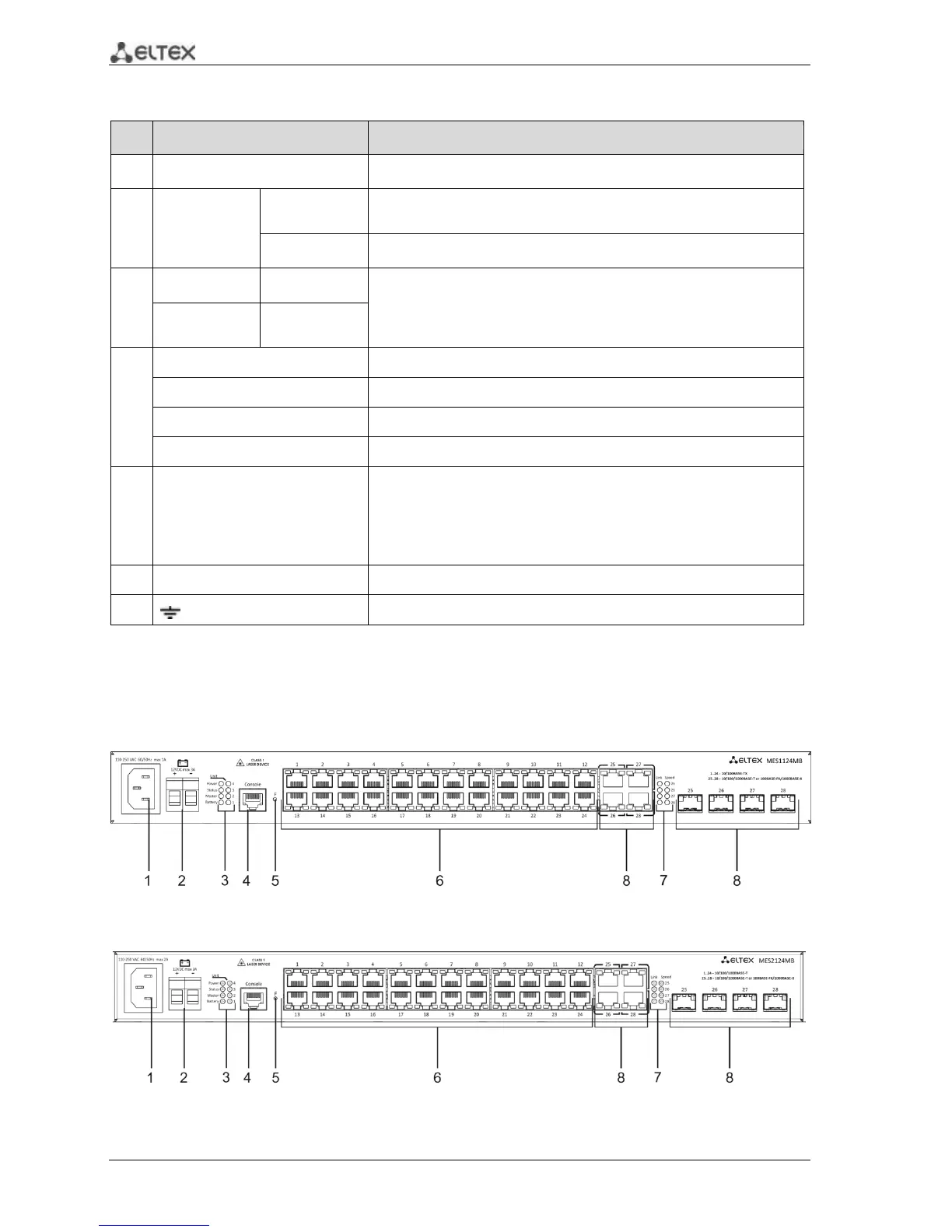

Table 2.10 —Description of connectors, LEDs and controls located on the front panel MES1024, MES1124,
MES2124
№
Front panel element
Description
1
Console
RS-232 console port for local control of the device.
2
[1 .. 24]
MES1024
MES1124
24 ports 10/100 Base-T(RJ45)
MES2124
24 ports 10/100/1000 Base-T(RJ45)
3
25,26
MES1024
Combo ports: 10/100/1000 Base-T (RJ45) ports and slots for
1000Base-X (SFP) transceiver installations
25,26,27,28
MES1124
MES2124
4
Unit ID (1-4)
Indicator of device number in a stack
Power
Device power indicator
Status
Device status indicator
Master
Stacked device activity mode indicator—master or slave
5
F
Functional key that reboots the device and resets it to factory
settings:
- pressing the key for less than 10 seconds reboots the device.
- pressing the key for more than 10 seconds resets the terminal to
factory settings.
6
~150-250VAC, 60/50Hz
Connector for AC power supply
7
The earthing bolt.
2.4.2 MES1124MB, MES2124MB series devices panels appearance and layout
Front panel layout MES1124MB, MES2124MB is depicted in Fig. 4-5.
Fig. 4— MES1124MB, front panel
Fig. 5— MES2124MB, front panel
