2.4.4 MES2208P series device panel appearance and layout

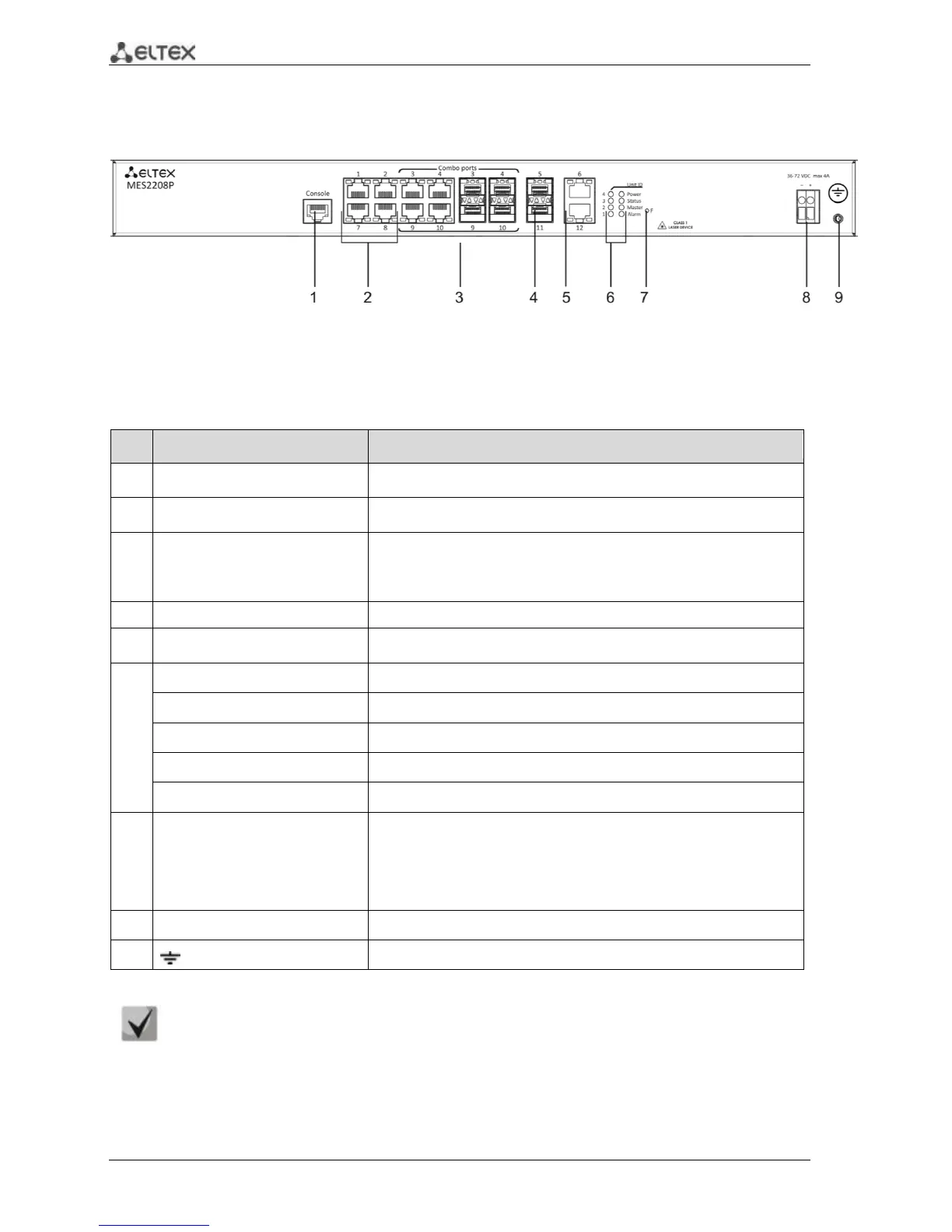

Front panel layout MES2208P is depicted in Fig. 12.
Fig. 12— MES2208P, front panel
Table 2.13 lists sizes, LEDs and controls located on the front panel MES2208P.
Table 2.13 —Description of connectors, LEDs and controls located on the front panel MES2208P
№
Front panel element
Description
1
Console
RS-232 console port for local control of the device.
2
1,2,7,8
4 ports 10/100/1000 Base-T (RJ-45 with support for PoE+)
3
3,4,9,10
Combo ports: 10/100/1000 Base-T (RJ45) ports and slots for
1000Base-X (SFP) transceiver installations
4
5,11
2 ports 1000 Base-X
5
6,12
2 ports 10/100/1000Base-T
6
Unit ID (1-4)
Indicator of device number in a stack
Power
Device power indicator
Status
Device status indicator
Master
Stacked device activity mode indicator—master or slave
Alarm
PoE power supply indicator
7
F
Functional key that reboots the device and resets it to factory
settings:
- pressing the key for less than 10 seconds reboots the device.
- pressing the key for more than 10 seconds resets the terminal to
factory settings.
8
36-72 VDC max 4A
Connector for DC power supply
9
The earthing bolt.
Ports 3, 4, 9, 10 are combo ports. The combined ports may have only one active interface
at the same time.
