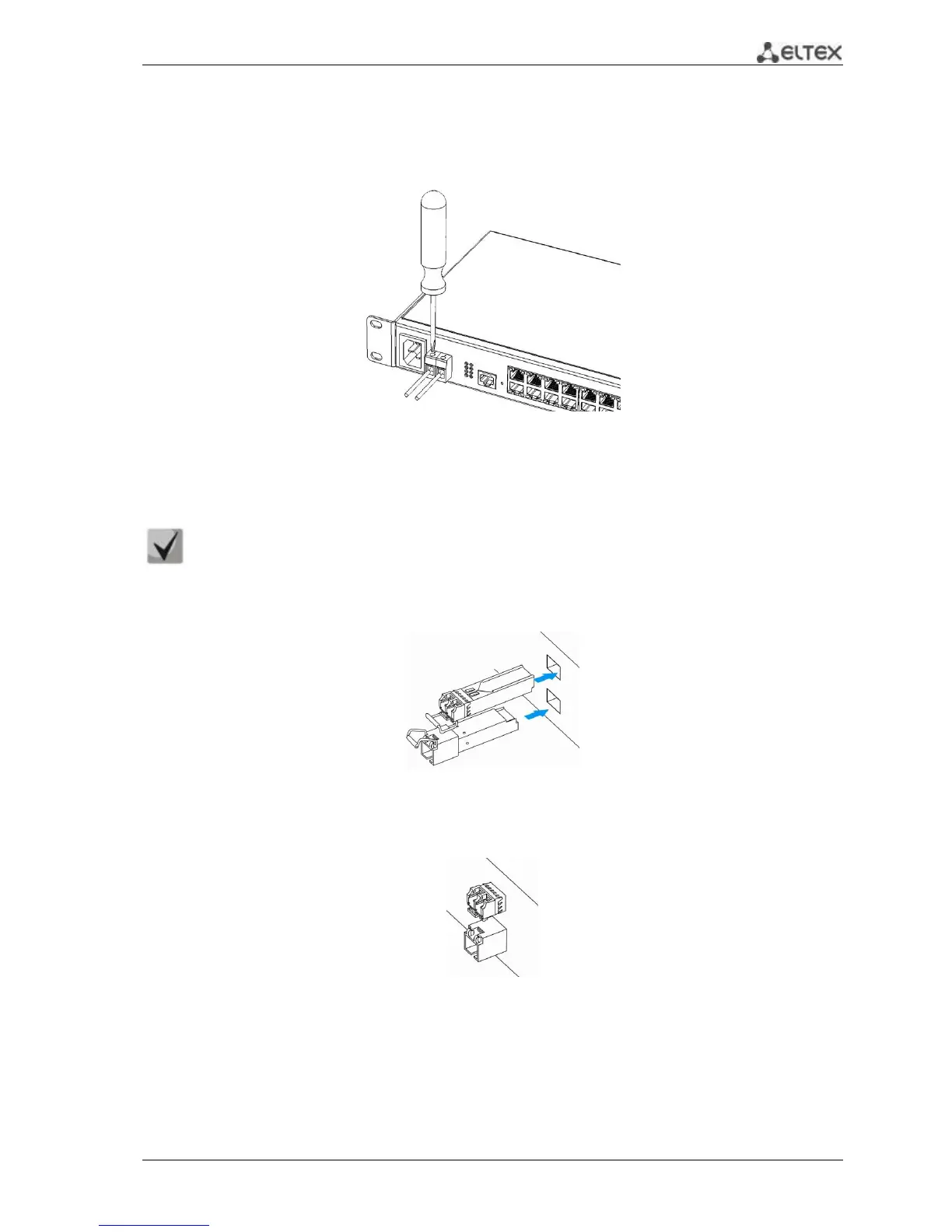

3.3 Battery connection to MES1124MB, MES2124MB
Connect the battery using copper-wire cable with cross-section not less than 0.5mm
2
. Observe the
correct polarity, when connecting the battery.
Fig. 22—Connecting battery to device
3.4 SFP transceiver installation and removal
Optical modules can be installed when the terminal is turned on or off.
1. Insert the top SFP module into a slot with its open side down, and the bottom SFP module
with its open side up.
Fig. 23—SFP transceiver installation
2. Press the module until it fits with a click.
Fig. 24—Installed SFP transceivers
