2.4.3 MES1124M, MES2124M series devices panels appearance and layout
MES1124M front panel with 110-250VAC power supply connector is shown in Fig. 7, with 48VDC
connector in Fig. 8.

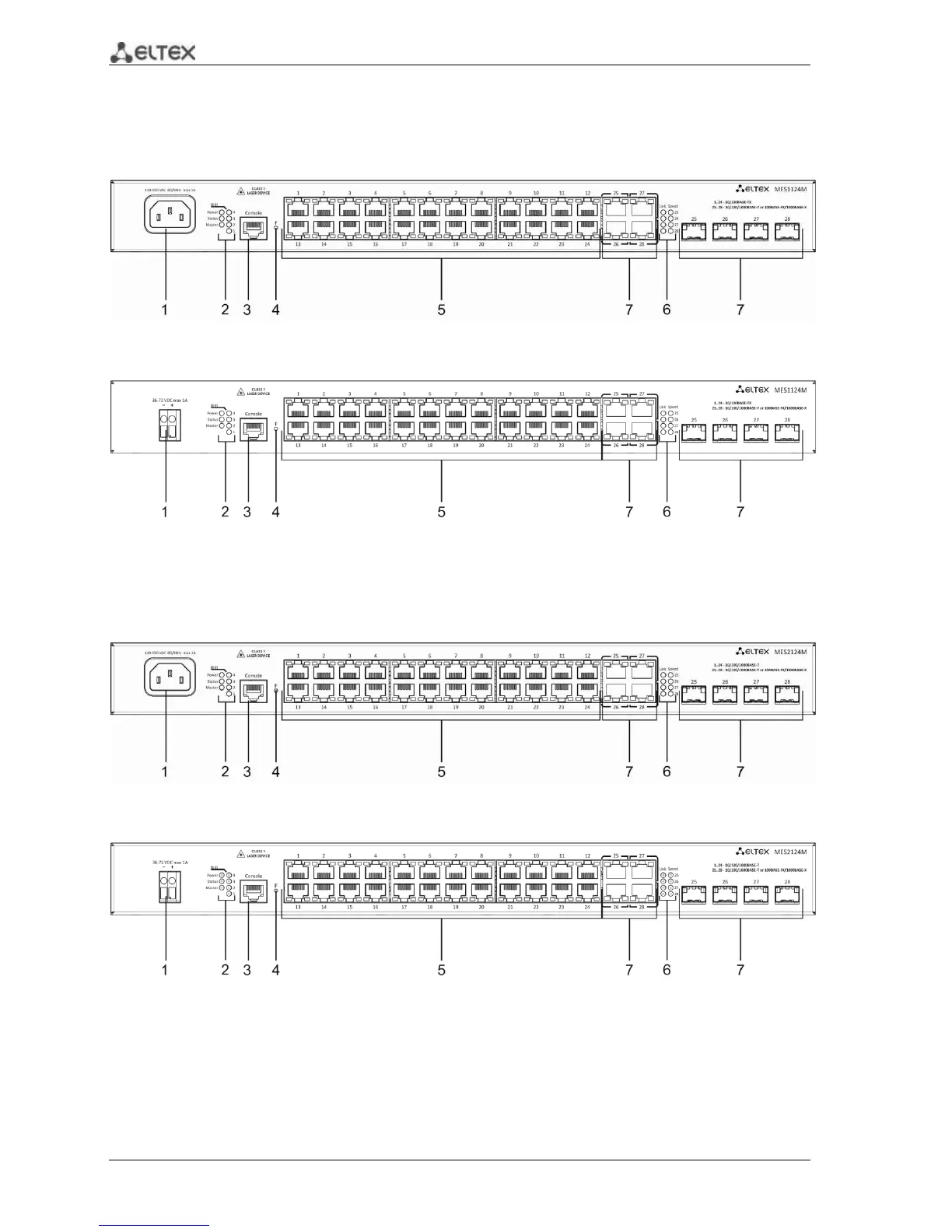

Fig. 7 – MES1124M AC, front panel
Fig. 8 – MES1124M DC, front panel
MES2124M front panel with 110-250VAC power supply connector is shown in Fig. 9, with 48VDC
connector in Fig. 10.
Fig. 9 – MES2124M AC, front panel
Fig. 10 – MES1124M DC, front panel
Table 2.12 lists sizes, LEDs and controls located on the front panel MES1124M, MES2124M.
