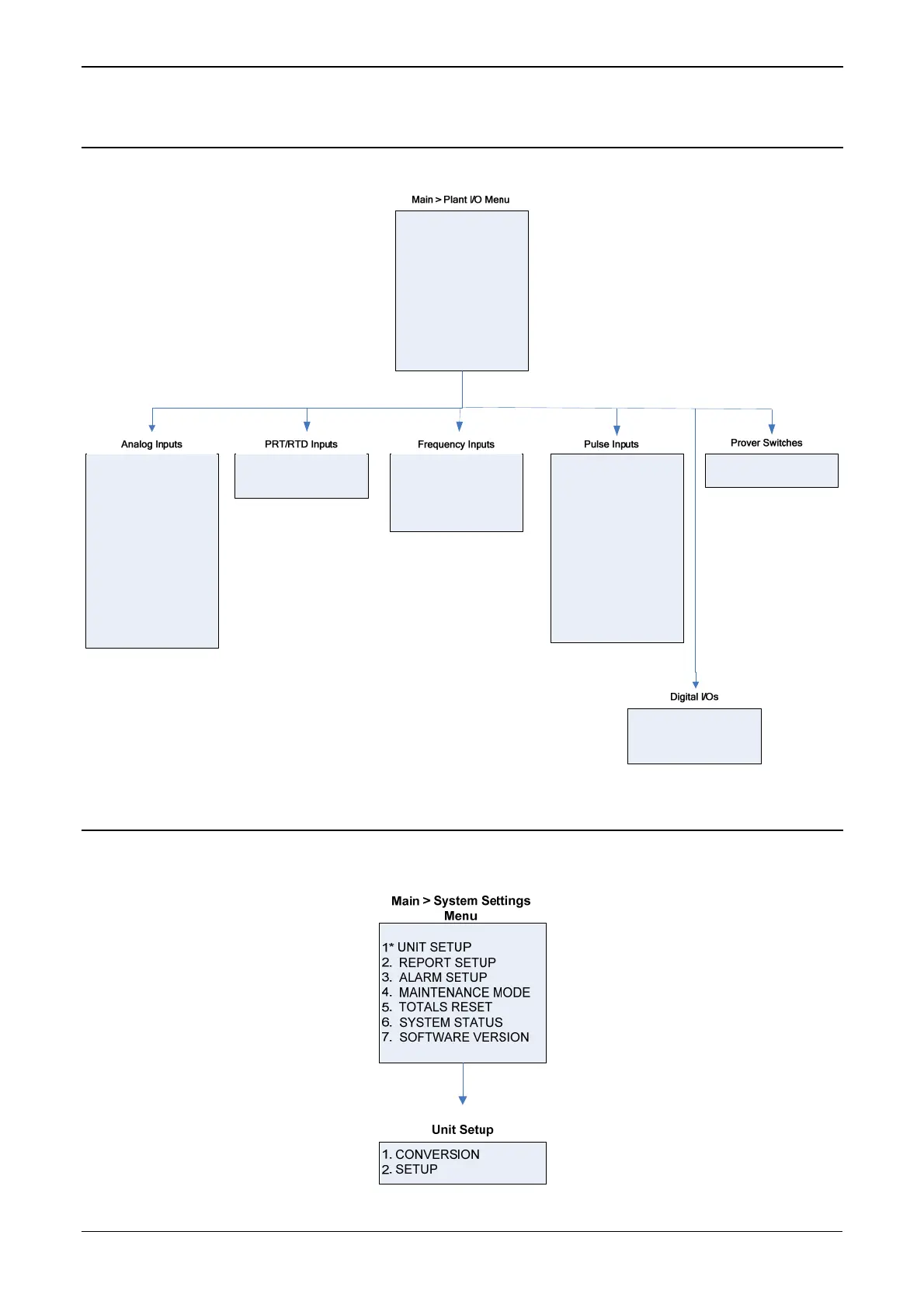

B.5 Plant I/O Menu
The parameters in this group are the values, limits, and status of the field I/O.
1* ANALOG INPUTS
2* PRT/RTD INPUTS
4* FREQUENCY INPUTS
5* PULSE INPUTS
6* DIGITAL I/OS
8 Next
1 Previous
2* DIGITAL I/OS
5* PROVER SWITCHES
1. ADC 01 – ADC01
2. ADC 01 – ADC02
3. ADC 01 – ADC03
4. ADC 01 – ADC04
5. ADC 01 – ADC05
6. ADC 01 – ADC06
7. ADC 01 – ADC07
8. Next
1. Previous
2. ADC 06 – ADC06
3. ADC 07 – ADC07
4. ADC 08 – ADC08
5. ADC 09 – ADC09
6. ADC 10 – ADC10
7. ADC 11 – ADC11
8. ADC 12 – ADC12
1. PRT 01 – PRT01
2. PRT 02 – PRT02
3. PRT 03 – PRT03
1. FREQ 01 – FRQ01
2. FREQ 02 – FRQ02
3. FREQ 03 – FRQ03
4. FREQ 04 – FRQ04
5. FREQ 05 – FRQ05
1. PIP 01 – PIP01
2. PIP 02 – PIP02
3. PIP 03 – PIP03
4. PIP 04 – PIP04
5. PIP 05 – PIP05
6. PIP 06 – PIP06
7. PIP 07 – PIP07
8. Next
1. Previous
2. PIP 06 – PIP06
3. PIP 07 – PIP07
4. PIP 08 – PIP08
5. PIP 09 – PIP09
6. PIP 10 – PIP10
1. PRV 01
1. DIGITAL IO 01
2. DIGITAL IO 02
3. DIGITAL IO 03
B.6 System Settings Menu
The system uses the parameters in this group in report gathering or for maintaining the S600. The
Unit Setup submenu contains the parameters regarding the Units of Measure.
B-4 Front Panel Navigation Revised Aug-06
