S600 Instruction Manual
SKT-A
ANIN 1-10
ANOUT 1-4
SKT-B
ANIN 11-12
DIGIN 1-6
DIGOUT 1-2
Freq Inputs
Pulse Outputs
SKT-C
DIGIN 7-16
DIGOUT 3-12
Turbine Inputs

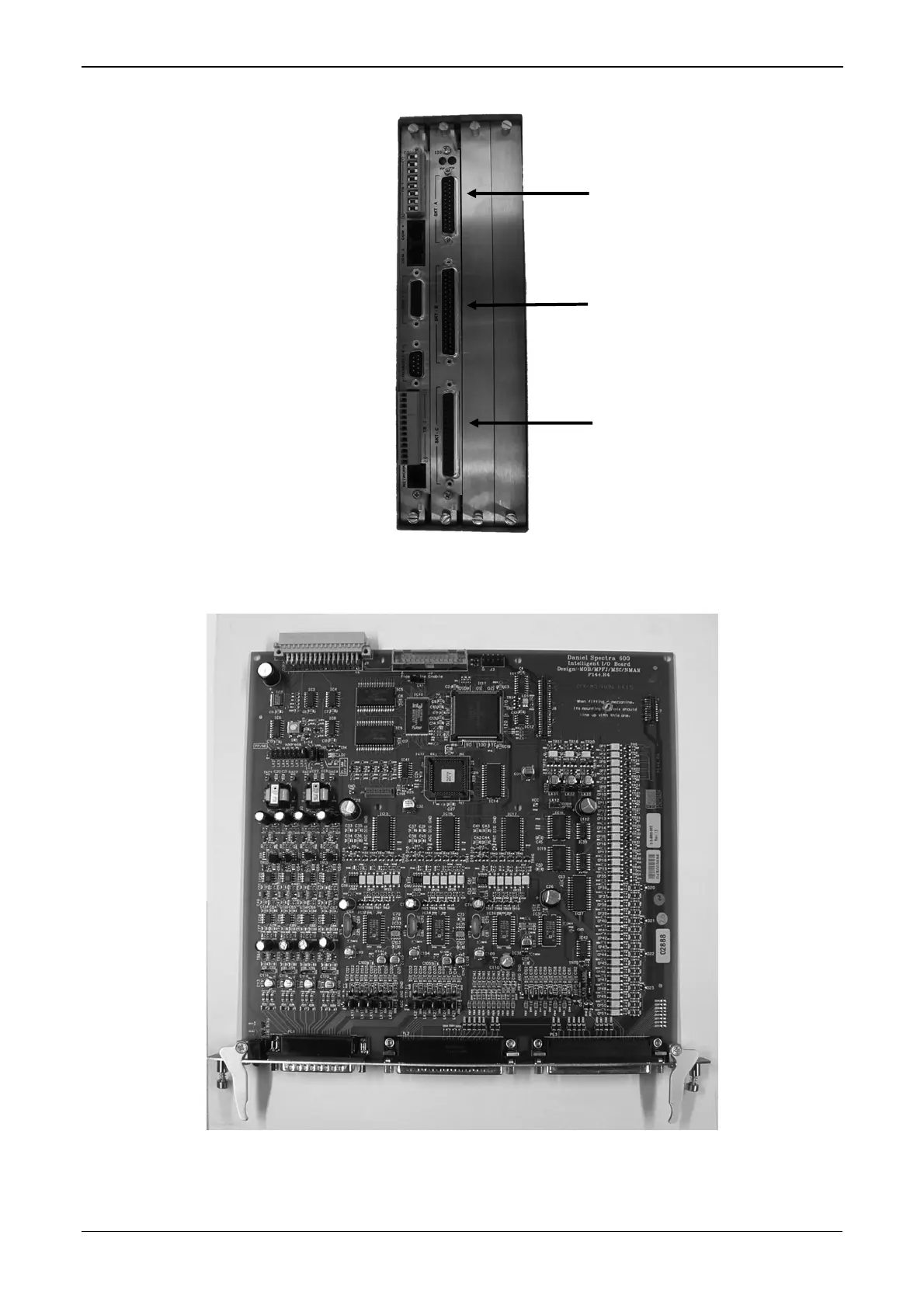

Figure 4-1. Backplate with P144 I/O Board
Figure 4-2. P144 I/O Board
4-2 I/O Revised Jan-07
