S600 Instruction Manual

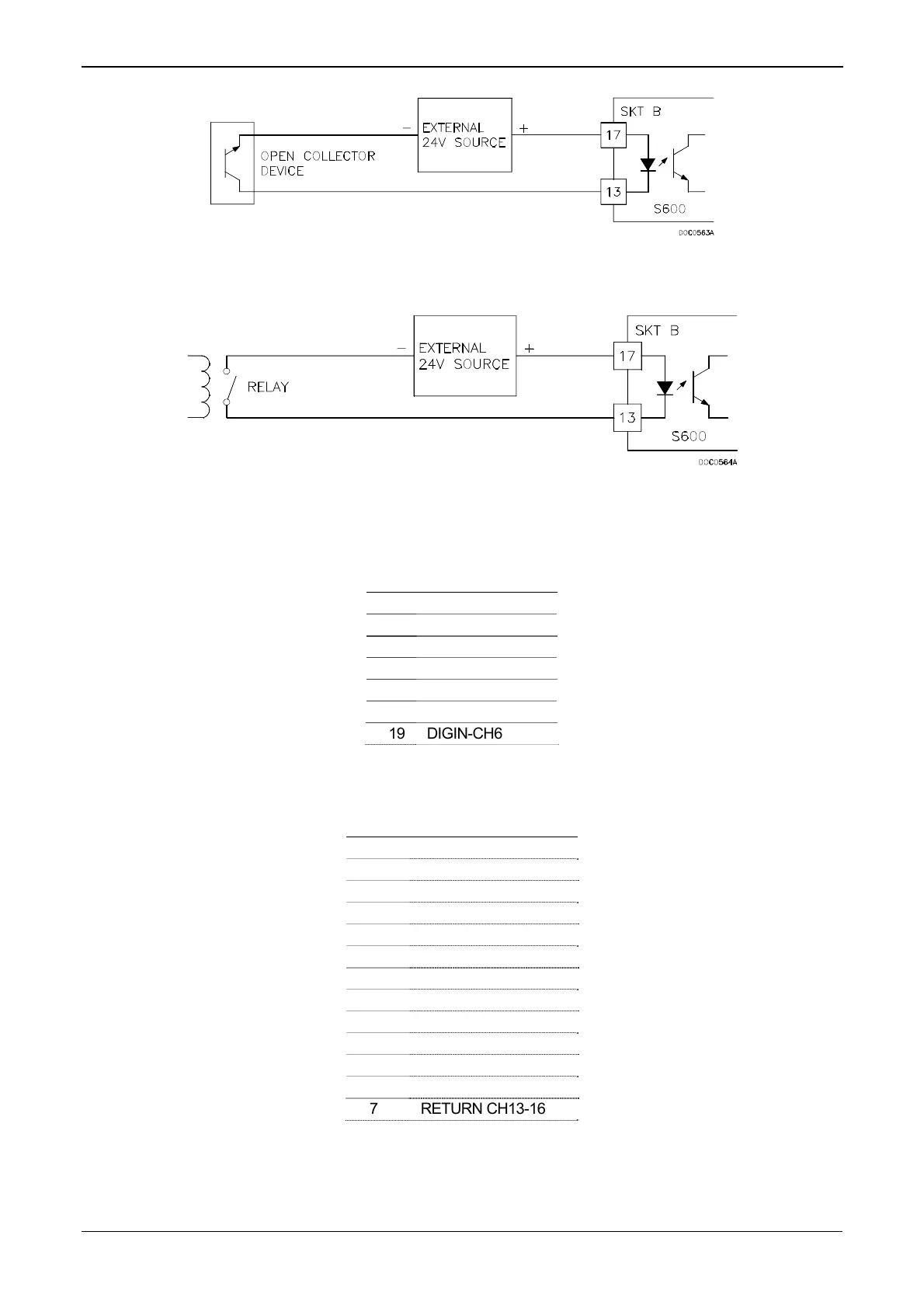

Figure 4-9. Digital Input Schematic (Open Collector Device)
Figure 4-10. Digital Input Schematic (Relay)
Table 4-4. DIGIN Pin Connections for SKT-B
Pin Function
13 DIGIN-CH1
14 DIGIN-CH2
15 DIGIN-CH3
16 DIGIN-CH4
17 RETURN CH1-4
18 DIGIN-CH5
19 DIGIN-CH6
Table 4-5. DIGIN Pin Connections for SKT-C
Pin Function
19 DIGIN-CH7
18 DIGIN-CH8
17 RETURN CH5-8
16 DIGIN-CH9
15 DIGIN-CH10
14 DIGIN-CH11
13 DIGIN-CH12
12 RETURN CH9-12
11 DIGIN-CH13
10 DIGIN-CH14
9 DIGIN-CH15
8 DIGIN-CH16
7 RETURN CH13-16
Revised Jan-07 I/O 4-7
