6.3 Navigating the Webserver Interface
The web browser interface allows you to view reports and data from
the front panel display screens. You navigate through the interface
using two navigation bars. Elements of the database display in a menu
bar at the top of the screen.
When you select an option from the menu bar, a hierarchy tree menu
appears in the navigation bar on the left side of the browser. From this
hierarchy menu, you may select which screen of data points to view.
Menu Bar
CSV Button
Hierarchy
Menu

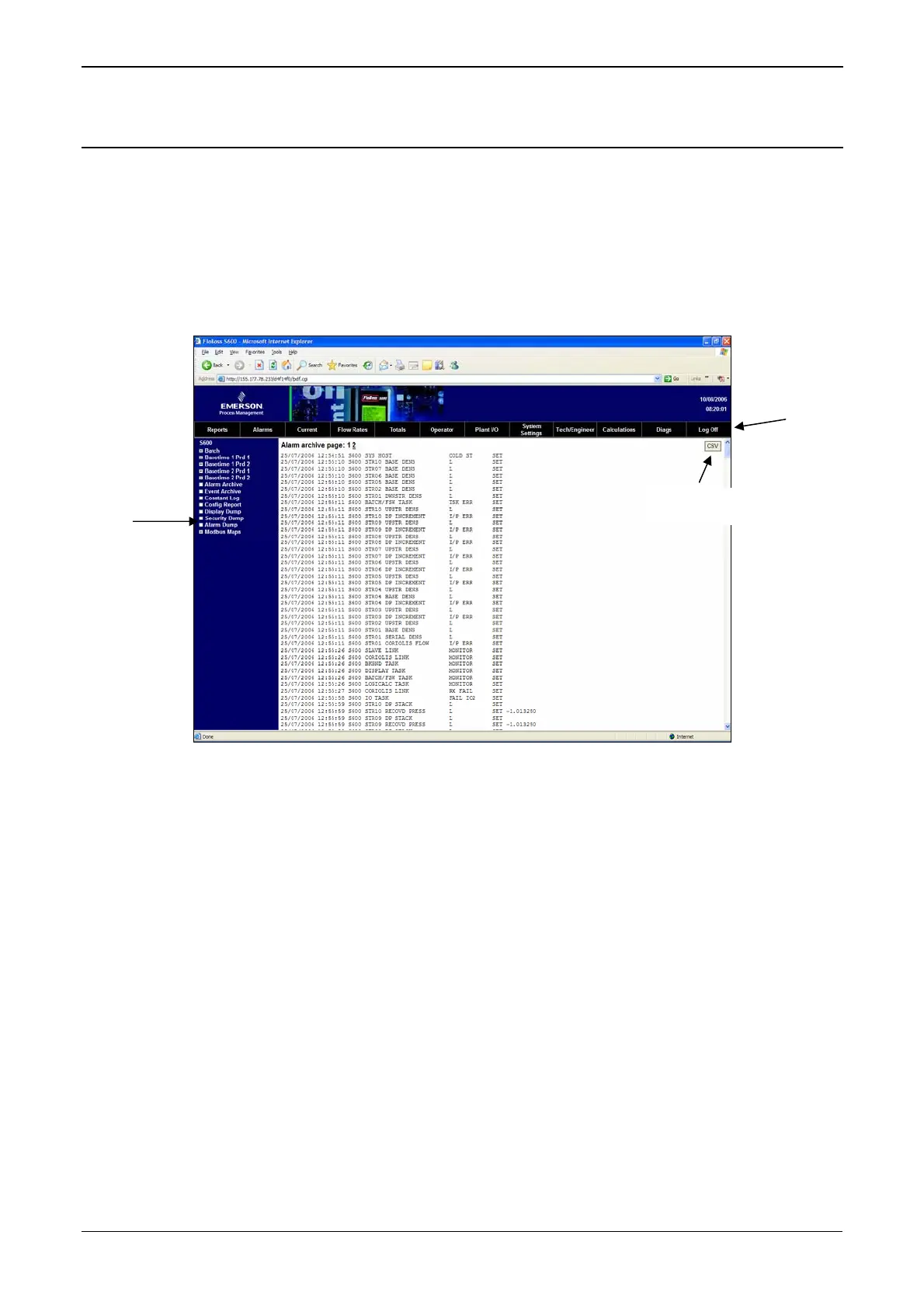

Figure 6-3. Alarm Archive Report
CSV Button
The S600 web interface typically displays content as a text file (as
shown in Figure 6-3). You may be able to print the screen content
using the PRINT button on the menu bar (according to your defined
authority).
Alternately, various screens provide a button you can use to create a
comma-separated variable (CSV) file you can print.
Navigation
Many of the screens present the data points in a format identical to the
front panel display (see Figure 6-4). To view related data point
screens, use the navigational arrows at the bottom of the screen.
6-4 Webserver Access Revised Jan-07
To Next Page
