S600 Instruction Manual
5.2 Front Panel Port
The front panel port, located on the bottom of the front panel, is an
alternative connection for the Config600 software program to use
when transferring configuration files. The port requires a six-pin RJ-12
connector for EIA-232 (RS-232D) communications (see Figure 5-2).
Table 5-1 shows the pinout connections for a six-pin connector. You
may also want to refer to Table 3-7 in Section 3.3.4, Local Operator
PC or Remote Display Port, which describes the pinouts when using
the 15-way D-type female connector.
Table 5-1. Front Panel Port Connections
Pin Function
1 RTS
2 TX
3 GND
4 GND
5 RX
6 CTS

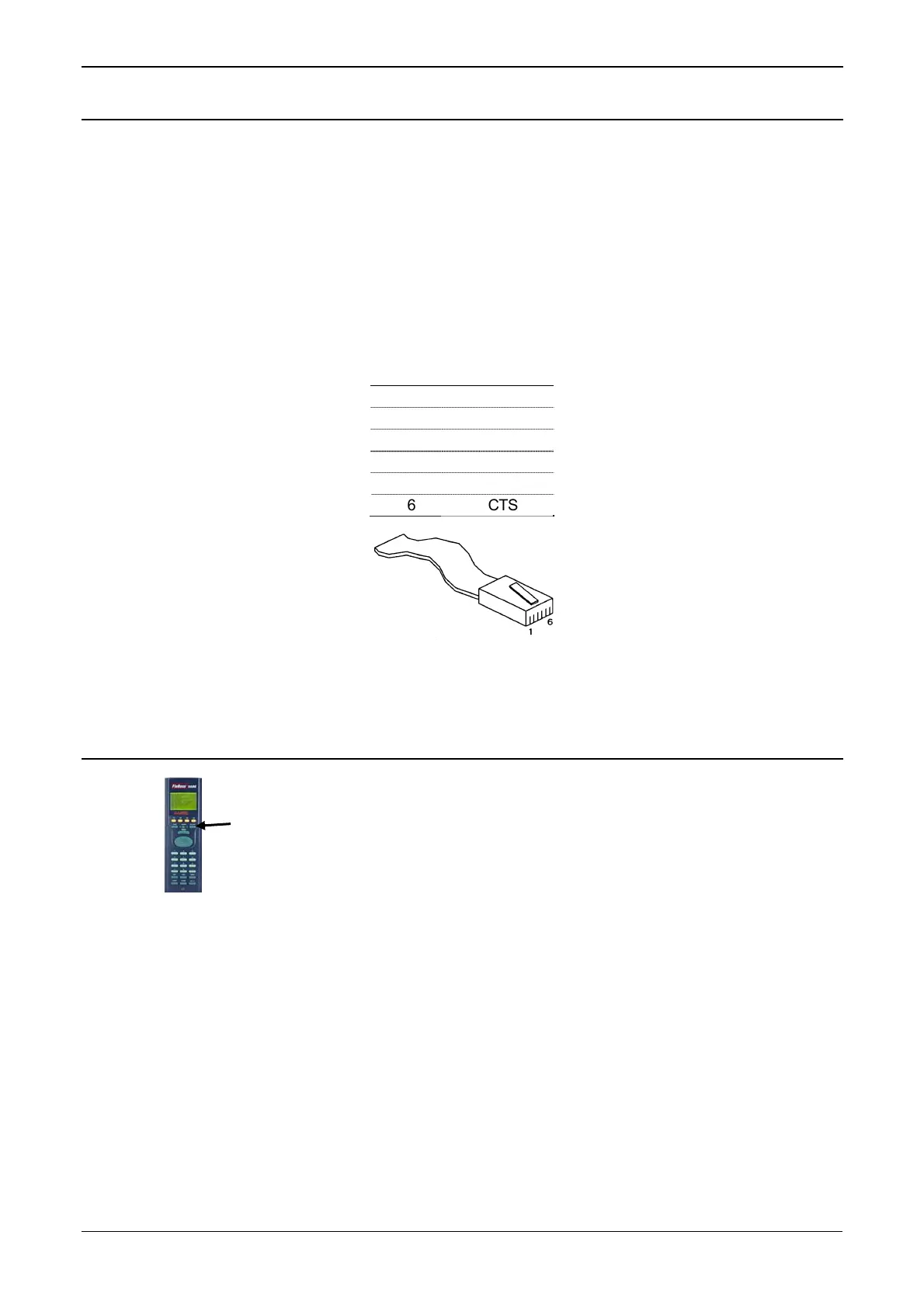

Figure 5-2. Front Panel Port Connector
5.3 Keypad
The keypad for the front panel has been designed for ease-of-use and
to reduce the possibility of error. Keys on the keypad are color-coded
by type:
Yellow: Function.
Dark green: Four-direction & MENU.
Light green: Numeric.
Dark green: Operation.
5.3.1 F Keys
The top of the keypad has four yellow function keys numbered F1 to
F4. You can program each F key as a shortcut to a frequently used
display page. Refer to Section 5.7.5, Assigning a Page to a Function
(F) Key, for the procedure on programming an F key.
5-2 Front Panel Revised Jan-07
