Table 4-9. PULSEOUT Pin Connections for SKT-B
Pin Function
30 PULSEOUT-CH1
31 PULSEOUT-CH2
32 PULSEOUT-CH3
33 PULSEOUT-CH4
35 RETURN CH1-4
34 PULSEOUT-CH5
12 RETURN CH5
4.1.7 Raw Pulse Output (RAWOUT)
The S600 supports a single raw pulse output, typically used in prover
applications to mimic the turbine signals and send them to the prover
mezzanine card. Refer to Figure 4-16. A 1K ohm resistor is required if
the pulse rate on the prover bus exceeds 1 KHz, if there are more than
three S600s, or if more than 20 m of cable is required.
Table 4-10 shows the RAWOUT pin connections.

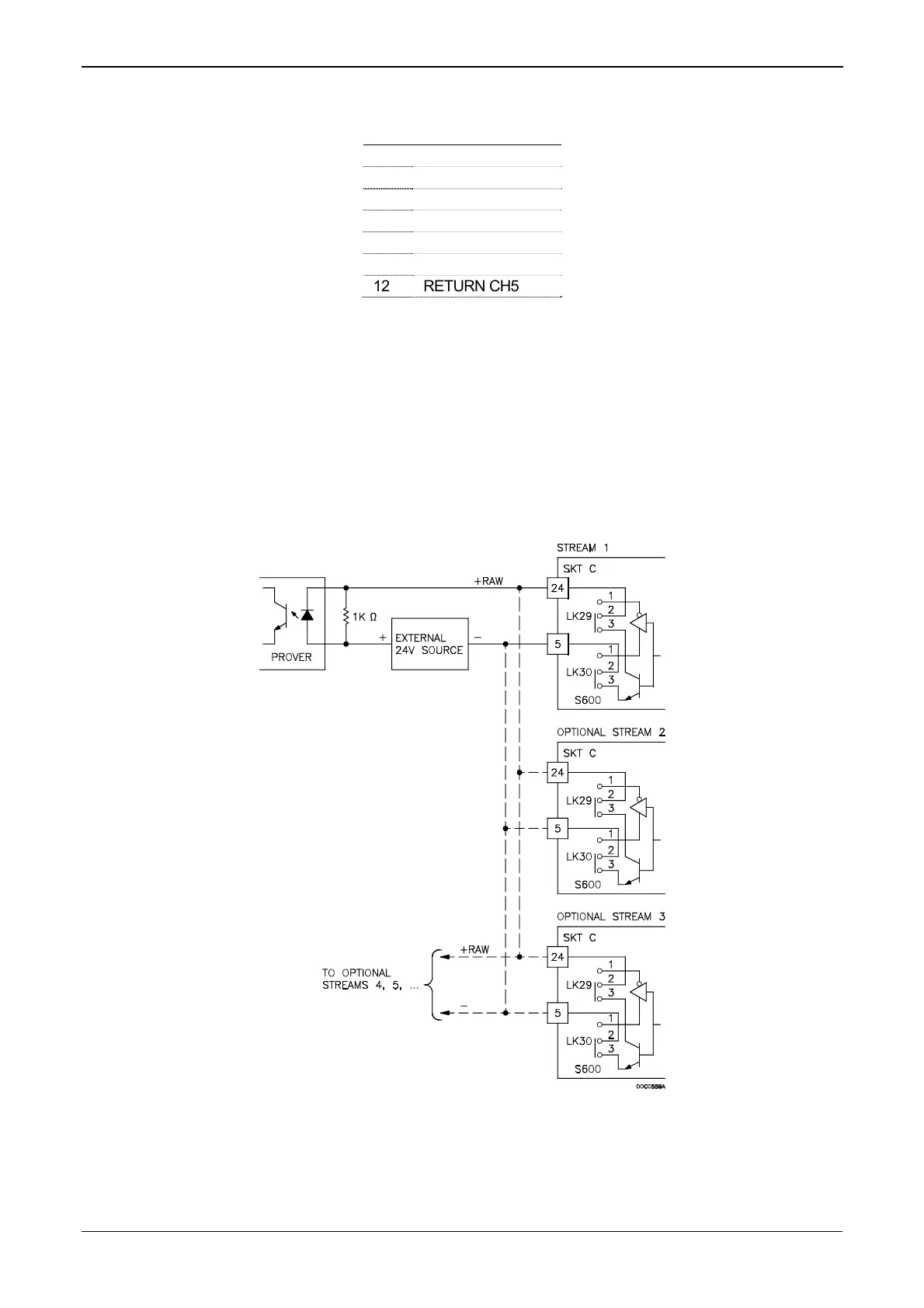

Figure 4-16. Raw Pulse Output Schematic
Revised Jan-07 I/O 4-11
