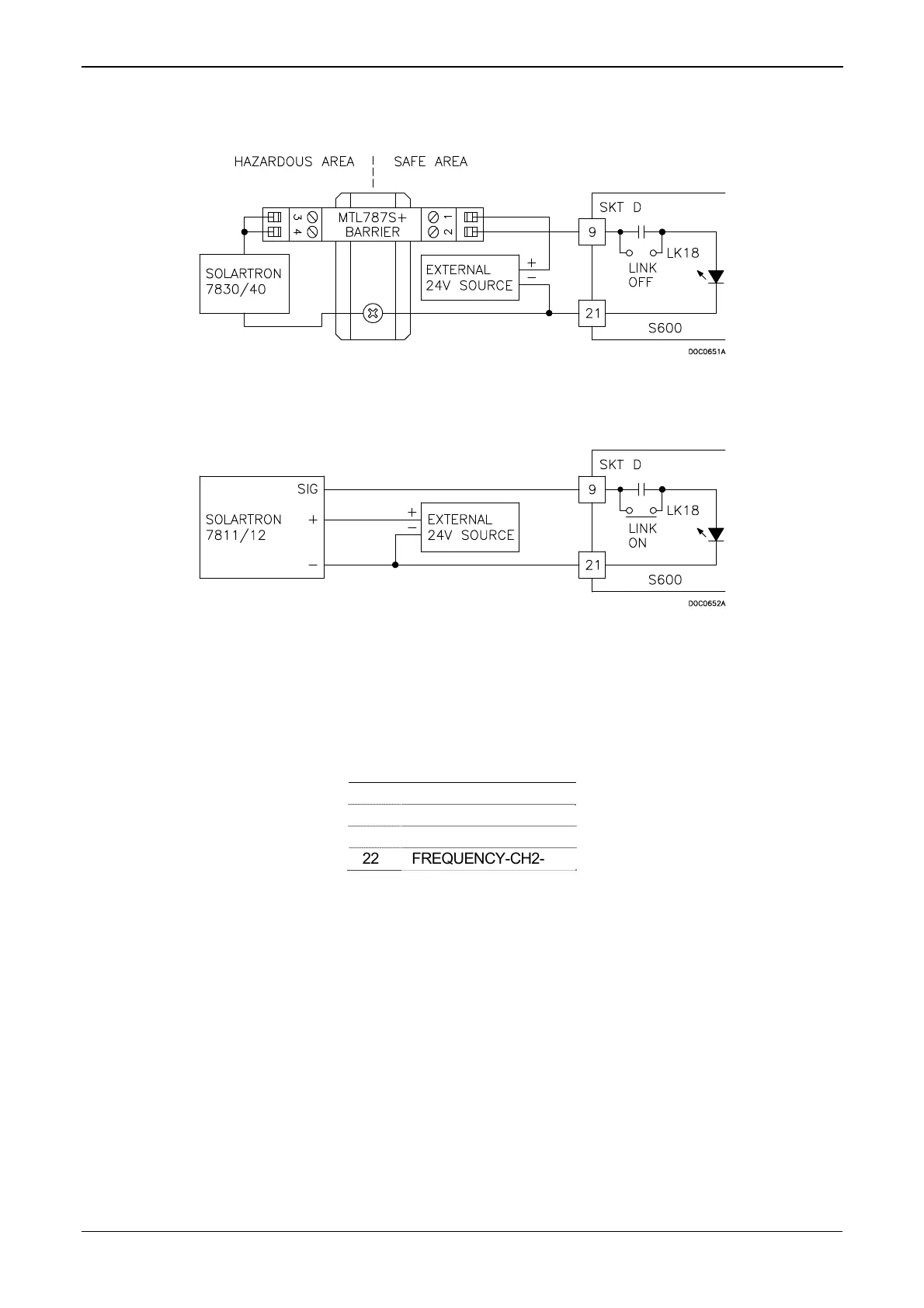

Table 4-21 shows the frequency input pin connections. Refer to
Figures 4-29 and 4-30 for field wiring schematics.
Figure 4-29. Frequency Input Schematic (with IS Barrier and AC-
Coupled)
Figure 4-30. Frequency Input Schematic (without IS Barrier and DC-
Coupled)
Table 4-21. Frequency Input Pin Connections for SKT-D
Pin Function
9 FREQUENCY-CH1+
21 FREQUENCY-CH1-
10 FREQUENCY-CH2+
22 FREQUENCY-CH2-
Revised Jan-07 I/O 4-23
