S600 Instruction Manual

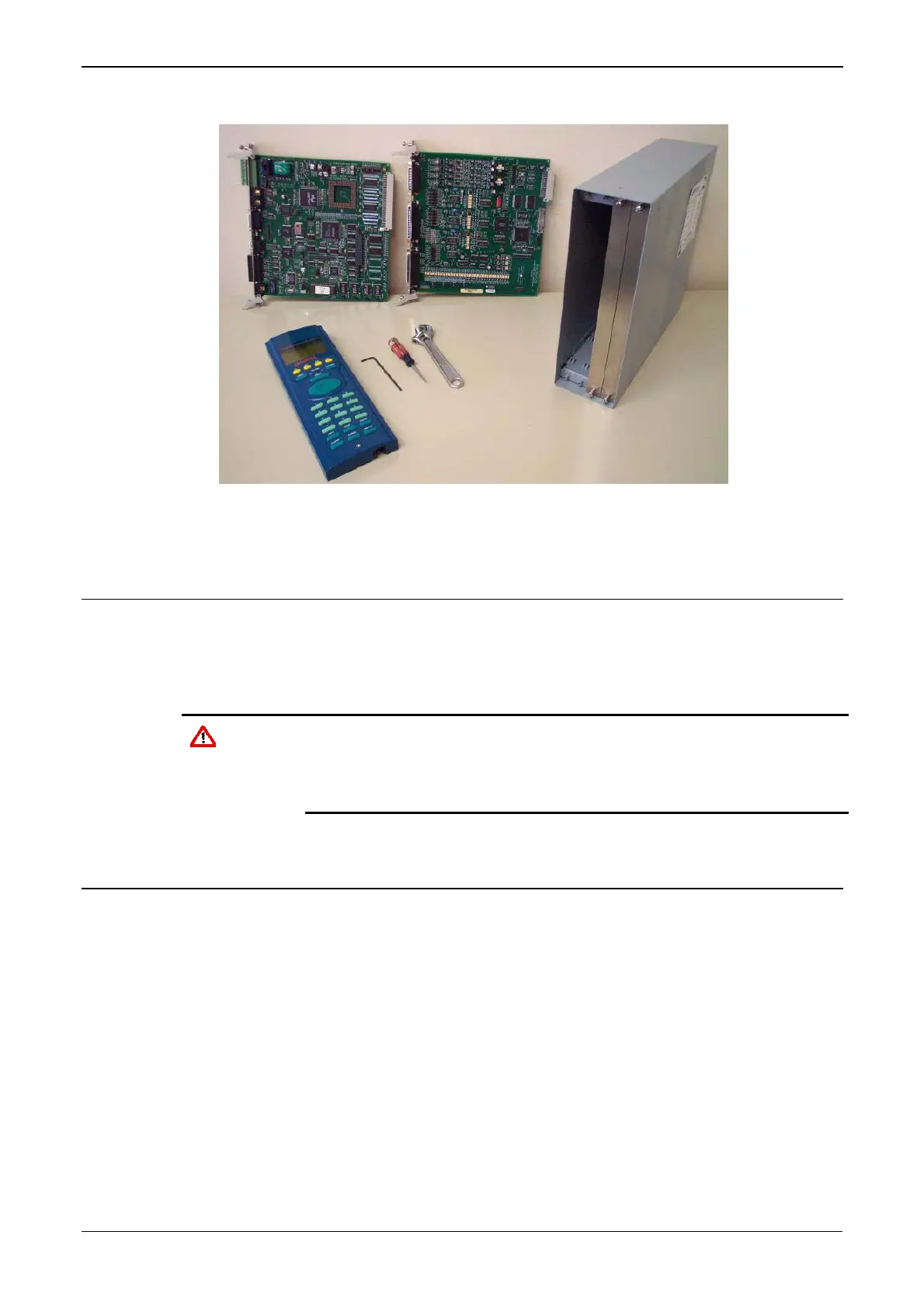

Figure 2-1. FloBoss S600 System Components
2.2 Environmental Considerations
The S600 panel mount is designed for use within the control room.
Place it in a position that provides ease of use, comfort, and safety for
operators and maintenance personnel. The optimum height for viewing
and using the display and keypad is at operator eye level.
Caution
Where one or more units are installed in a confined space with other
heat-producing equipment, give special attention to the combined
heating effect. This combined heat could increase the environmental
temperature beyond its acceptable threshold, thereby impacting
performance.
2.3 Required Tools for Installation
Before you attempt to install the S600, ensure that you have the
following tools:
Small flat-blade screwdriver suitable for the slot-headed captive
screws on the rear of the case that secure each plug-in board into
the case.
5.5 mm (5 BA) hex or small adjustable crescent wrench for the
front panel bosses.
2.5 mm Allen key suitable for the hex cap screw on the front face
of the front panel that secures the front panel molding to the case.
2-2 Installation Revised Jan-07
