S600 Instruction Manual

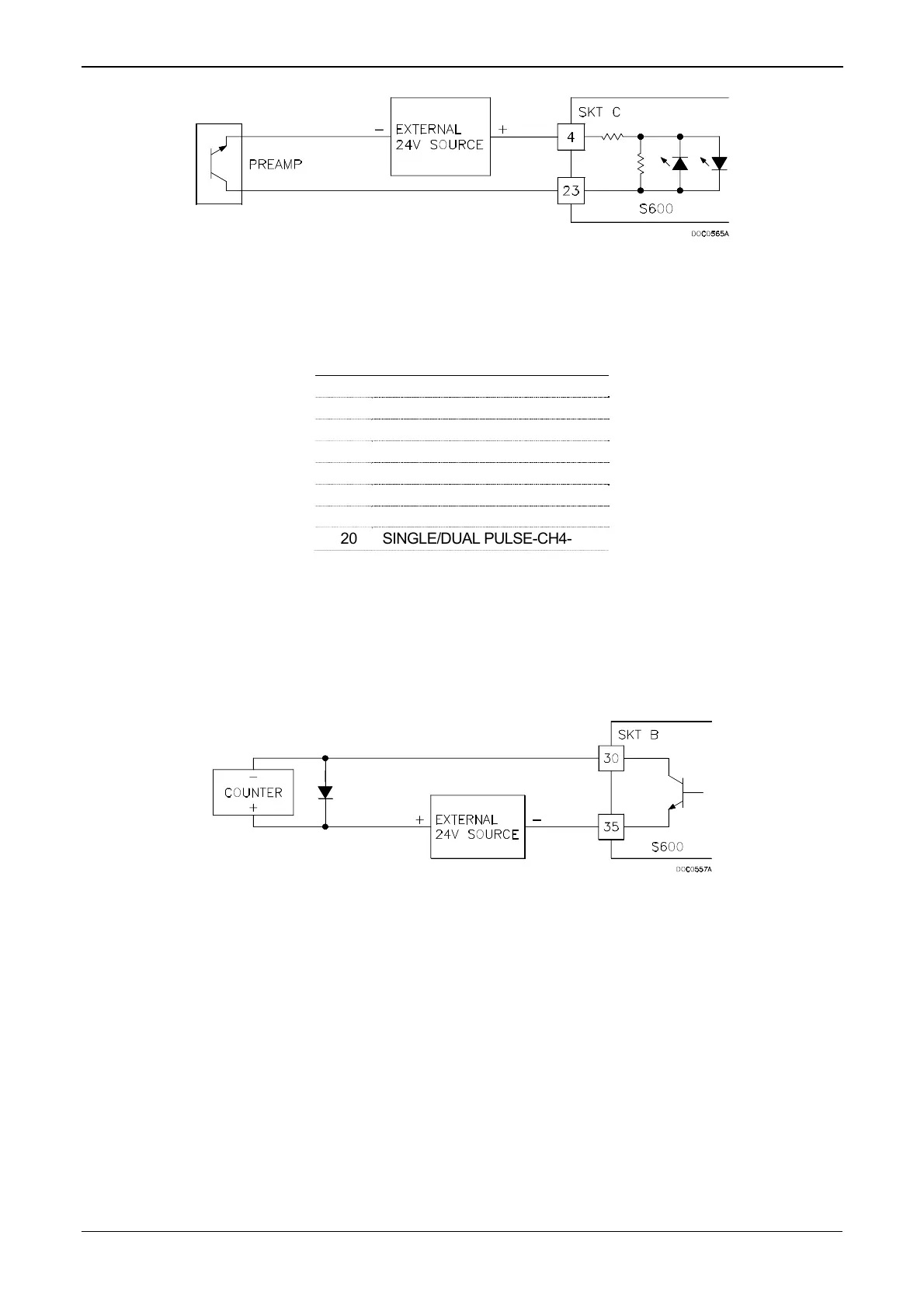

Figure 4-14. Pulse Input Schematic (with US 24 V P148 Mezzanine Card)
Table 4-8. Dual Pulse Input Pin Connections for SKT-C
Pin Function
4 SINGLE/DUAL PULSE-CH1+
23 SINGLE/DUAL PULSE-CH1-
3 SINGLE/DUAL PULSE-CH2+
22 SINGLE/DUAL PULSE-CH2-
2 SINGLE/DUAL PULSE-CH3+
21 SINGLE/DUAL PULSE-CH3-
1 SINGLE/DUAL PULSE-CH4+
20 SINGLE/DUAL PULSE-CH4-
4.1.6 Pulse Outputs (PULSEOUT)
The system supports five programmable pulse output channels
(PULSEOUT), which are typically used for electronic counters or
sampler control. Refer to Figure 4-15.
Table 4-9 shows the PULSEOUT pin connections.
Figure 4-15. Pulse Output Schematic
4-10 I/O Revised Jan-07
